Complete RS-232 3 Channel 16-bit RTD DAQ System - Includes WINview CP Plus 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Compatible with Windows XP SP3/Vista/7 32-bit & 64-bit operating systems.

  • Complete RS-232 Data Acquisition System
  • 3 Channels RTD inputs (expandable)
  • Accepts Pt and Ni input types
  • Provides Amplification and Current Source
  • 16-Bit Resolution A/D Converter
  • Expandable with Optional 8000 Series Modules

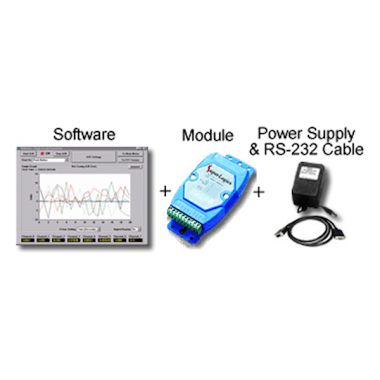

  • Ready-to-Run System Includes:
  • Includes CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP 2012, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems

Hardware Specifications:

    • Analog Input:
      • Input Channels: 3
      • Input Type: RTD
      • Wire Connection: 2/3/4 wire
      • Resolution: 16 bit
      • Sampling Rate: 15/12.5 samples/1 second while filter at 60/50Hz
      • Accuracy: ±0.1%
      • Zero Drift: ±0.5uV/°C
      • Span Drift: ±25uV/°C
      • Common Mode Rejection: 150dB min
      • Normal Mode Rejection: 100dB min
      • Open Wire Detection: Yes
      • Intra-Module Isolation: 3000VDC
    • Interface:
      • RS-485
      • Format: N,8,1
      • Baud Rate: 1200 ~ 115200 bps
      • Connections: Terminal blocks (accepts 16-22 AWG wires)
    • LED Display:
      • 1 LED as Power/Communication Indicator
    • Power:
      • Input Voltage Range: +10 to +30V DC
      • Power Consumption: 1.0W
    • Environment:
      • Operating Temperature: -13 to 167°F (-25 to 75°C)
      • Storage Temperature: -40 to 185°F (-40 to 85°C)
      • Humidity: 5 to 95% RH, non-condensing

RTD Temperature Range:



Type Code RTD Type Temperature Range (°C)
20 Platinum 100, a = 0.00385 -100 ~ 100
21 Platinum 100, a = 0.00385 0 ~ 100
22 Platinum 100, a = 0.00385 0 ~ 200
23 Platinum 100, a = 0.00385 0 ~ 600
24 Platinum 100, a = 0.003916 -100 ~ 100
25 Platinum 100, a = 0.003916 0 ~ 100
26 Platinum 100, a = 0.003916 0 ~ 200
27 Platinum 100, a = 0.003916 0 ~ 600
28 Nickel 120 -80 ~ 100
29 Nickel 120 0 ~ 100
2A Platinum 1000, a = 0.00385 -200 ~ 600
2E PT 100, a = 0.00385 -200 ~ 200
2F PT 100, a = 0.003916 -200 ~ 200
80 PT 100, a = 0.00385 -200 ~ 600
81 PT 100, a = 0.003916 -200 ~ 600

Software Specifications:

    • Hardware Requirements:
      • One 8000 Series Analog Input Module Connected via USB or RS232
      • 512MB RAM
      • 6MB Hard Disk Space (For WINview CP 2012 Only - Additional Space Required for Data Storage and/or .NET Framework)
    • Software Requirements
      • Windows XP (Service Pack 3), Windows Vista or Windows 7 (32-bit or 64-bit)
      • Microsoft .NET Framework Version 4.0 or Higher
      • 1024 x 768 Resolution or Higher
      • Requires Administrator User Privileges
    • General Software Specifications:
      • Maximum Number of Inputs:
        • Number and Type of Channels Determined by Module Used
      • Supported Signal Types:
        • All Analog Input Types:
          • Volts, mV, mA, Thermocouple, RTD, Strain Gauge, etc.
      • Ease of Use:
        • Very Easy, No Learning Curve, No Programming, No Manual Needed
      • Speed of Acquisition:
        • Maximum: 10 Hz (May be Limited by Hardware)
        • Minimum: None
      • Duration of Acquisition:
        • Finite (Specify Number of Points to Collect)
        • Continuous (Collects Until Stopped by User)
      • Data Storage:
        • Stream Data to Disk as ASCII Text (Tab Delimited)
        • Stream Data to Disk as ASCII Text with Time/Date Stamp Options (Tab Delimited)
        • Easily Import into Microsoft Excel
      • Settings Retrieval
        • All User Settings May Be Saved to a File for Later Use
        • Selectable Auto-Load of Specified Settings File
      • Math Formulas Per Channel:
        • Yes
        • Supports the Following Math Functions: +, -, *, /, ( ), sin, cos, tan, ^, ln, sqr, exp
      • Real-Time Display:
        • Yes, Selectable Graphing Options
    • Graph Specifications:
      • Display:
        • Time vs. Y
        • Multiple Channels per Graph
        • Digital Readout of Each Channel
        • Strip-Chart Mode
        • User Selectable Graph Type (Line, Bar, Pie, etc.)
      • X-Axis:
        • Samples, Seconds, Minutes, Hours, Days
        • Supports Auto-Scaling
      • Y-Axis:
        • User-Defineable
        • Supports Auto-Scaling
      • Graph Functions:
        • Print Graph Image
        • Save Graph Image
        • Zoom Graph Image
        • Copy Graph Image to Clipboard
      • Trigger Type:
        • Software Push Button
