CP8233

Complete RS-232 3 Channel 16-bit RTD DAQ System - Includes 30-day trial of WINview CP 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Compatible with Windows XP SP3/Vista/7 32-bit & 64-bit operating systems.

  • Complete RS-232 Data Acquisition System
  • 3 Channels RTD inputs (expandable)
  • Accepts Pt and Ni input types
  • Provides Amplification and Current Source
  • 16-Bit Resolution A/D Converter
  • Expandable with Optional 8000 Series Modules
  • Ready-to-Run System Includes:
    • 8520 for direct RS-232

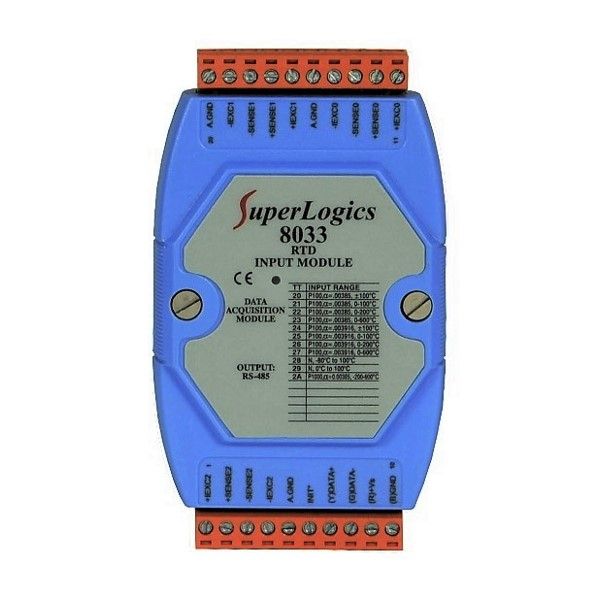

    • 8033 (prewired)
    • RS-232 Cable
    • Power Supply
    • 30 day trial of WINview CP 2012 Ready-to-Run Software
    • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
    • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Hardware Specifications:

    • Analog Input:
      • Input Channels: 3
      • Input Type: RTD
      • Wire Connection: 2/3/4 wire
      • Resolution: 16 bit
      • Sampling Rate: 15/12.5 samples/1 second while filter at 60/50Hz
      • Accuracy: ±0.1%
      • Zero Drift: ±0.5uV/°C
      • Span Drift: ±25uV/°C
      • Common Mode Rejection: 150dB min
      • Normal Mode Rejection: 100dB min
      • Open Wire Detection: Yes
      • Intra-Module Isolation: 3000VDC
    • Interface:
      • RS-485
      • Format: N,8,1
      • Baud Rate: 1200 ~ 115200 bps
      • Connections: Terminal blocks (accepts 16-22 AWG wires)
    • LED Display:
      • 1 LED as Power/Communication Indicator
    • Power:
      • Input Voltage Range: +10 to +30V DC
      • Power Consumption: 1.0W
    • Environment:
      • Operating Temperature: -13 to 167°F (-25 to 75°C)
      • Storage Temperature: -40 to 185°F (-40 to 85°C)
      • Humidity: 5 to 95% RH, non-condensing

RTD Temperature Range:



Type Code RTD Type Temperature Range (°C)
20 Platinum 100, a = 0.00385 -100 ~ 100
21 Platinum 100, a = 0.00385 0 ~ 100
22 Platinum 100, a = 0.00385 0 ~ 200
23 Platinum 100, a = 0.00385 0 ~ 600
24 Platinum 100, a = 0.003916 -100 ~ 100
25 Platinum 100, a = 0.003916 0 ~ 100
26 Platinum 100, a = 0.003916 0 ~ 200
27 Platinum 100, a = 0.003916 0 ~ 600
28 Nickel 120 -80 ~ 100
29 Nickel 120 0 ~ 100
2A Platinum 1000, a = 0.00385 -200 ~ 600
2E PT 100, a = 0.00385 -200 ~ 200
2F PT 100, a = 0.003916 -200 ~ 200
80 PT 100, a = 0.00385 -200 ~ 600
81 PT 100, a = 0.003916 -200 ~ 600
