8016

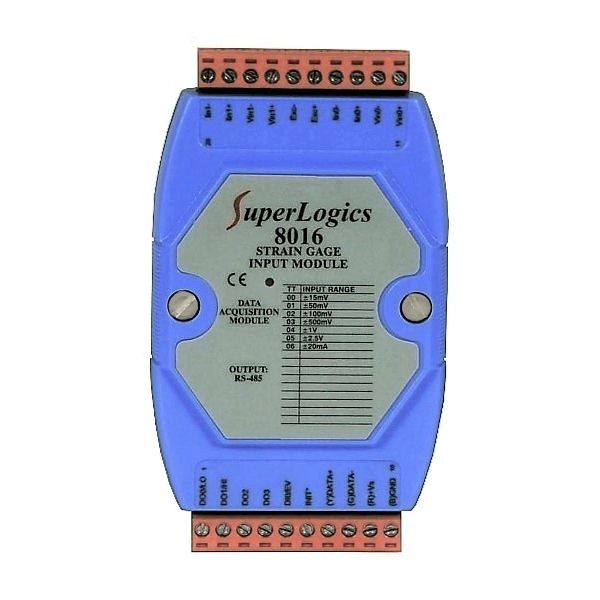

1 Channel Strain Gage Input Module with High Resolution A/D and Precision Excitation Voltage

  • Strain Gage Input Module
  • 16-Bit A/D Converter
  • Expandable to 8 Inputs with optional 8018
  • High Precision Excitation settable from 0-10VDC (40mA available)
  • Amplification for low level strain gage voltages
  • 4 Digital Outputs
  • 1 Digital Input
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
  • Analog Input:
    • Input Channels:2
    • Input type : +/-15mV, +/-50mV, +/-100mV, +/-1V, +/-2.5V, +/-20mA
    • Max. Sampling rate of Module: 10 Samples/Second (0.10 seconds between samples)
    • Bandwidth: 5.24Hz
    • Accuracy: ±0.05% FSR
    • Zero Drift: ±0.5µV/ °C
    • Span Drift: 25ppm/°C
    • Common Mode Rejection @ 50/60Hz: 150dB
    • Normal Mode Rejection @ 50/60Hz: 100dB
    • Input Impedance: 20M Ohms
    • Intra-Module Isolation: 3000VDC
  • Excitation Voltage Output
    • Output Channels: 1
    • Output Range: 0 to +10V
    • Max Output Load: 40mA
    • Accuracy: ±0.05% of FSR
    • Drift: ±50ppm/ °C
    • Output Impedance: 12 Ohms
    • Isolation: 3000V DC
  • Digital Input:
    • Channels: 1
    • Logic Level 0: +1V max
    • Logic Level 1: +3.5 to 30V
    • Max Input Frequency: 50Hz
    • Min. Pulse Width: 1mS
  • Digital Output:
    • Channels: 4
    • Output Type: Open Collector to 30V
    • Output Load: Sink 30mA max
    • Power Dissipation: 30mW
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 2.4W
  • Physical & Environmental:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 176°F (-40 to 80°C)
    • Dimensions: 4.8 x 2.8 x 1.3 in (12.3 x 7.2 x 3.3 cm)
