8018

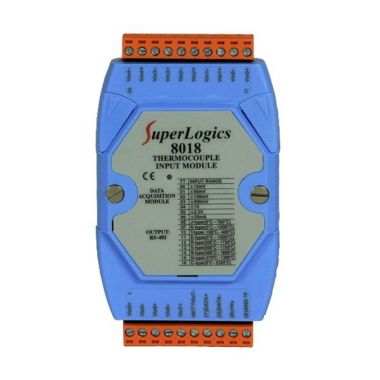

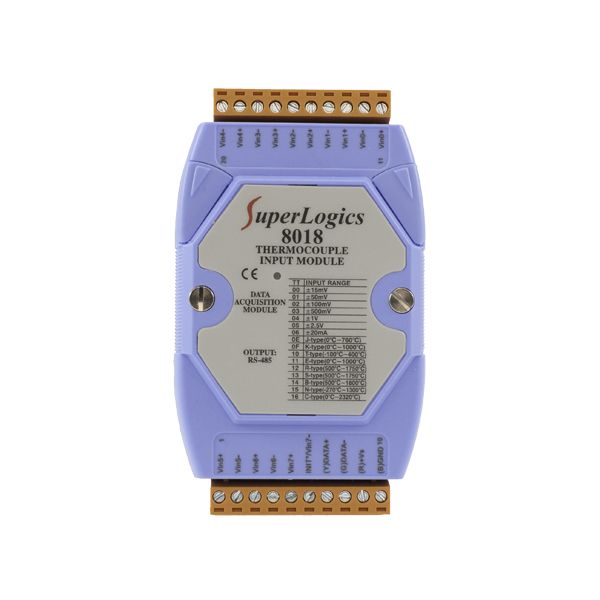

8 Channel Thermocouple/mV/V/mA Input Module, 16-Bit A/D Converter, Thermocouple Types: J,K,T,E,R,S,B,N,C and Input Ranges: ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA

  • 8 Thermocouple, mV, Voltage or mA Inputs (expandable)
  • 16-Bit A/D Converter
  • Accepts Thermocouples Directly, as well as mV, V & mA inputs
  • Accepts Thermocouple types J, K, T, E, R, S, B, N, C
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Analog Input:
    • Input Channels: 8 differential or 6 differential and 2 single-ended by jumper select
    • Input type : +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-20mA (requires optional external 125 ohm resistor), Thermocouple)
    • Thermocouple Type: J, K, T, E, R, S, B, N, C
    • Resolution: 16 bit
    • Sampling Rate of Module: 10 Samples/1 Second
    • Accuracy: ±0.1%
    • Bandwidth: 15.7Hz
    • Zero Drift: 0.5uV/°C
    • Span Drift: ±25ppm/°C
    • Common Mode Rejection @50/60Hz: 150dB min
    • Normal Mode Rejection @ 50/60Hz: 100dB
    • Input Impedance: Voltage: 20M Ohms
    • Over Voltage Protection: +/- 35V
    • Open Thermocouple Detection: No
    • Photo Isolation: 3750 Vrms
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 1.0W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
    • Thermocouple Type

      Type Range°C
      J -210 ~ +760
      K -270 ~ +1372
      T -270 ~ +400
      E -270 ~ +1000
      R 0 ~ +1768
      S 0 ~ +1768
      B 0 ~ +1820
      N -270 ~ 1300
      C 0 ~ 2320
