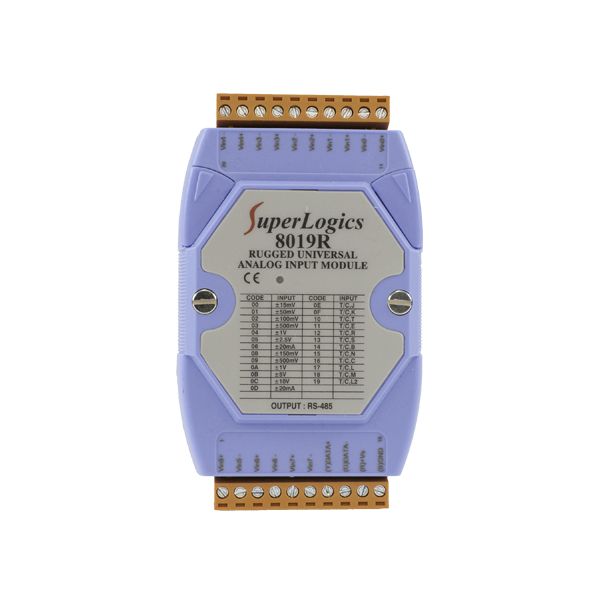

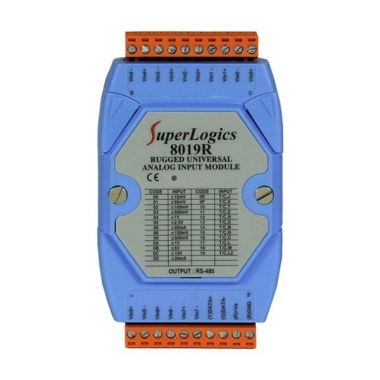

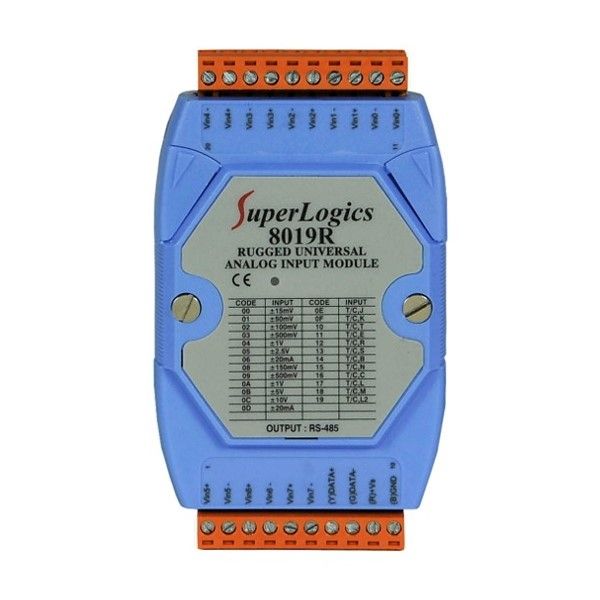

8019R

8-channel universal 16-Bit Analog Input Module; mV, V, mA, Thermocouple; Individual Channel Configurable; Wire Opening Detection for Thermocouple; Overvoltage Voltage Protection : +/-240Vrms

8-channel universal 16-Bit Analog Input Module; mV, V, mA, Thermocouple; Individual Channel Configurable; Wire Opening Detection for Thermocouple; Overvoltage Voltage Protection : +/-240Vrms
  • 8019R
  • Input Type: mV, V, mA, Thermocouple
  • Input Channels: 8 differential
  • Voltage Range: +/- 15mV, +/- 50mV, +/- 100mV, +/- 150mV, +/- 500mV, +/- 1V, +/- 2.5V, +/- 5V, +/- 10V
  • Current Range: +/- 20mA (jumper selectable)
  • Thermocouple Range: Type J, K, T, E, R, S, B, N, C, L, M, L2
  • Resolution: 16-bits
  • Sampling Rate: 8 samples/second (Total)
  • Individual Channel Configurable
  • Wire Opening Detection for Thermocouple
  • Overvoltage Voltage Protection: +/-240Vrms
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
Related Products
Technical Specifications

Hardware Specifications:

  • Analog Input:
    • Input Channels: 8 differential
    • Input type : +/-15mV, +/-50mV, +/-100mV, +/-150mV,+/-500mV,
        +/-1V, +/-2.5V, +/-5V, +/- 10V, +/-20mA (Jumper Selectable)
    • Resolution: 16 bit
    • Sampling Rate of Module: 8 Samples/1 Second
    • Accuracy: ±0.1%
    • Bandwidth: 5.24Hz
    • Zero Drift: +/- 0.5uV/°C
    • Span Drift: ±25ppm/°C
    • Common Mode Rejection @50/60Hz: 86dB min
    • Normal Mode Rejection @ 50/60Hz: 100dB
    • Input Impedance: Voltage Input >2M ohm, Current Input: 125 ohm
    • Over Voltage Protection: 240 Vrms
    • Open Thermocouple Detection: Yes
    • Individual Channel Configuration : Yes
    • ESD Protection: +/-4kV (Contact for each channel)
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 1.2W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
