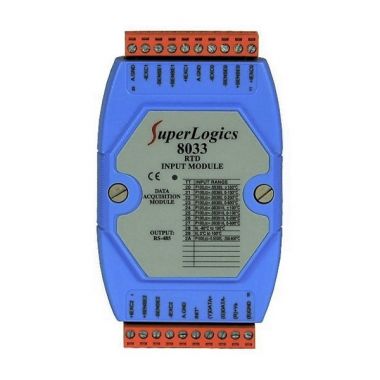

3 Channel RTD Input Module

  • 3 Channels RTD inputs (expandable)
  • 16-Bit A/D Converter
  • Accepts Pt and Ni input types
  • Provides Amplification and Current Source
  • 30 day trial of WINview CP 2012 Ready-to-Run Software
  • Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
  • WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Hardware Specifications:

  • Analog Input:
    • Input Channels: 3
    • Input Type: RTD
    • Wire Connection: 2/3/4 wire
    • Resolution: 16 bit
    • Sampling Rate: 15/12.5 samples/1 second while filter at 60/50Hz
    • Accuracy: ±0.1%
    • Zero Drift: ±0.5uV/°C
    • Span Drift: ±25uV/°C
    • Common Mode Rejection: 150dB min
    • Normal Mode Rejection: 100dB min
    • Open Wire Detection: Yes
    • Intra-Module Isolation: 3000VDC
  • Interface:
    • RS-485
    • Format: N,8,1
    • Baud Rate: 1200 ~ 115200 bps
    • Connections: Terminal blocks (accepts 16-22 AWG wires)
  • LED Display:
    • 1 LED as Power/Communication Indicator
  • Power:
    • Input Voltage Range: +10 to +30V DC
    • Power Consumption: 1.0W
  • Environment:
    • Operating Temperature: -13 to 167°F (-25 to 75°C)
    • Storage Temperature: -40 to 185°F (-40 to 85°C)
    • Humidity: 5 to 95% RH, non-condensing
  • RTD Temperature Range:

    Type Code RTD Type Temperature Range (°C)
    20 Platinum 100, ? = 0.00385 -100 ~ 100
    21 Platinum 100, ? = 0.00385 0 ~ 100
    22 Platinum 100, ? = 0.00385 0 ~ 200
    23 Platinum 100, ? = 0.00385 0 ~ 600
    24 Platinum 100, ? = 0.003916 -100 ~ 100
    25 Platinum 100, ? = 0.003916 0 ~ 100
    26 Platinum 100, ? = 0.003916 0 ~ 200
    27 Platinum 100, ? = 0.003916 0 ~ 600
    28 Nickel 120 -80 ~ 100
    29 Nickel 120 0 ~ 100
    2A Platinum 1000, ? = 0.00385 -200 ~ 600
    2E PT 100, ? = 0.00385 -200 ~ 200
    2F PT 100, ? = 0.003916 -200 ~ 200
    80 PT 100, ? = 0.00385 -200 ~ 600
    81 PT 100, ? = 0.003916 -200 ~ 600
