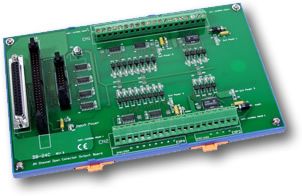

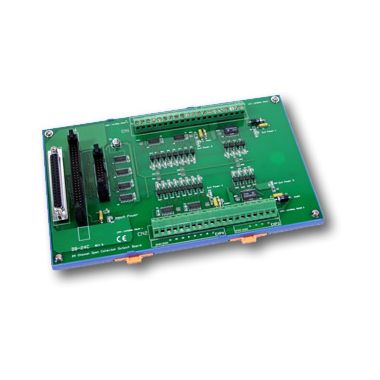

DB-24C

24-channel open-collector output board with 1.5 meter 50-pin flat-cable ..Include : CA-5015 (50-pin Flat Cable 1.5m)

  • 24 open-collector output (NPN)
  • One OPTO-22 Compatible Connector and one 37 pin D-sub connector and one 20-pin connector
  • Connects directly to OPTO-22 compatible board or any 722,724 series board
  • 8-channel max. load 600mA (per channel)
  • 16-channel max. load 100mA (per channel)
  • Max. load voltage : 35Vdc
  • LED’s indicated output status
  • Screw terminals for easy field wiring
  • Open-collector (NPN)
    • Channel 0~3 and 12~15 : 600mA(max. load current )
    • Channel 5~11and 16~23 : 100mA(max. load current)
  • Power Consumption : +5V @0.4A max
  • Dimension : 1305mm X 220mm
  • Operating Temperature : 0 -60°C
  • Storage Temperature : -20~70°C
  • Humidity : 5% to 90 % noncondensing
