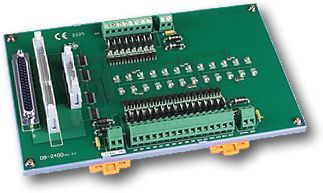

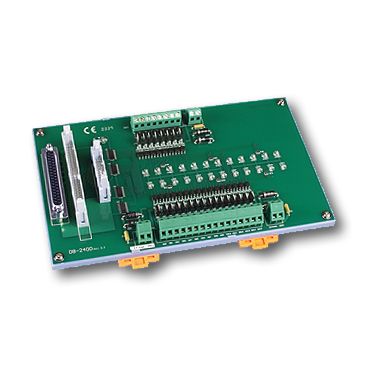

DB-24OD

24-channel Open-drain Output Board Include : CA-3710 (37-pin D-sub Cable 1m)

24-channel Open-drain Output Board  Include : CA-3710 (37-pin D-sub Cable 1m)
  • DB-24OD
  • 24 Open-Drain output
  • One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
  • Connects directly to OPTO-22 compatible board or any 722,724 series board
  • Each channel max. load 400mA
  • LED’s indicated relay status
  • Max. load voltage : 35Vdc
  • Screw terminals for easy field wiring
Related Products
Technical Specifications
  • Open-Drain
    • Each Channel : 400mA (max. load current )
  • Power Consumption : +5V @0.4A max
  • Dimension : 223.5mm X 135.5mm
  • Operating Temperature : 0 -60°C
  • Storage Temperature : -20~70°C
  • Humidity : 5% to 90 % noncondensing
