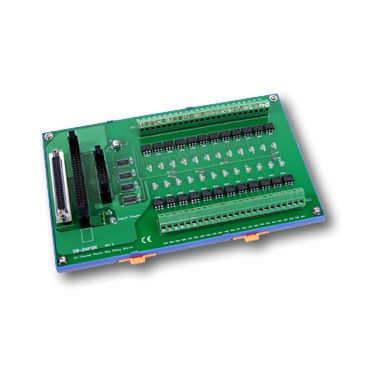

DB-24POR

24-channel photo MOS Relay Output Board with 1.5 meter 50-pin flat-cable ..Include : CA-5015 (50-pin Flat Cable 1.5m)

  • 24 Photo Mos Relay
  • One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
  • Connects directly to OPTO-22 compatible board or any 722,724 series board
  • LED’s indicated relay status
  • Screw terminals for easy field wiring
  • 5,000Vdc optical isolation
  • PhotoMos Relay
  • Turn-on time :0.7ms (typical)
  • Turn-off time: 0.05ms (typical)
  • Output On resistance : 23 ohm (typical)
  • Load voltage : 350V (peak AC)
  • Power dissipation : 500mW
  • Countinuous load current : 0.13A
  • Power Consumption : +5V @0.3A max
  • Dimension : 223.5mm X135.5mm
  • Operating Temperature : 0 -60°C
  • Storage Temperature : -20~70°C
  • Humidity : 5% to 90 % noncondensing
