DB-24PR/12

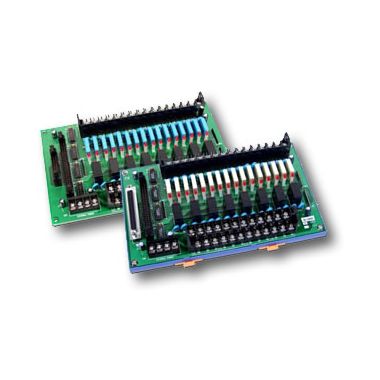

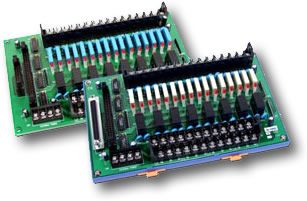

24 Channel OPTO-22 Compatible Power Relay Board with 1.5 meter 50-pin flat-cable (12V) Include : CA-5015 (50-pin Flat Cable 1.5m)

  • 8 Form C Relays (SPDT) and 16 FORM A Relay
  • Accept 20-pin connector to control 8 Form and 8 Form A relays
  • Switch up to 5A at 250 VAC / 5A at 30VDC
  • LEDs indicated relay status
  • Designed varistor to protect each channel’s high voltage spike
  • Screw terminals for easy field wiring
  • 50-Pin header Connects directly to DIO-24,DIO-48,DIO-144 OPTO-22 compatible board or any 722,724 series board
  • 20-Pin header connects directly to A-82X,A-626,A-628, DIO-64
  • Form A Relay Output
    • Nominal load: [email protected], [email protected]
    • Max. switching power: 1250VA; 150W
    • Max. switching Voltage: 270VAC,150VDC
    • Max. switching Current: 5A
    • Life Expectancy: 20 millions operations (Mechanical)
    • Operate time: 10ms
    • Release time: 5ms
  • Form C Relay Output
    • Nominal load: [email protected], [email protected]
    • Max. switching power: 1250VA(NO), 750VA(NC)
    • Max. switching Voltage: 250VAC, 150VDC
    • Max. switching Current: 5A
    • Life expectancy: 10 millions operations (Mechanical)
    • Operate time: 10ms
    • Release time: 5ms
    • Control Logic: Input TTL high (+5V), relay on
