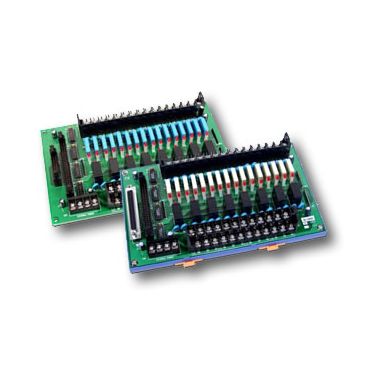

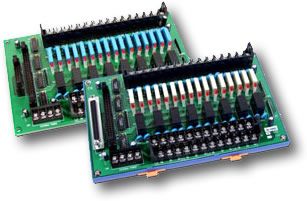

DB-24PR/24
24 Channel OPTO-22 Compatible Power Relay Board with 1.5 meter 50-pin flat-cable (24V) Include : CA-5015 (50-pin Flat Cable 1.5m)
- 8 Form C Relays (SPDT) and 16 FORM A Relay
- Accept 20-pin connector to control 8 Form and 8 Form A relays
- Switch up to 5A at 250 VAC / 5A at 30VDC
- LEDs indicated relay status
- Designed varistor to protect each channel’s high voltage spike
- Screw terminals for easy field wiring
- 50-Pin header Connects directly to DIO-24,DIO-48,DIO-144 OPTO-22 compatible board or any 722,724 series board
- 20-Pin header connects directly to A-82X,A-626,A-628, DIO-64
- Form A Relay Output
-
- Nominal load: 250VAC@5A, 30VDC@5A
- Max. switching power: 1250VA; 150W
- Max. switching Voltage: 270VAC,150VDC
- Max. switching Current: 5A
- Life Expectancy: 20 millions operations (Mechanical)
- Operate time: 10ms
- Release time: 5ms
- Form C Relay Output
-
- Nominal load: 250VAC@5A, 30VDC@5A
- Max. switching power: 1250VA(NO), 750VA(NC)
- Max. switching Voltage: 250VAC, 150VDC
- Max. switching Current: 5A
- Life expectancy: 10 millions operations (Mechanical)
- Operate time: 10ms
- Release time: 5ms
- Control Logic: Input TTL high (+5V), relay on
