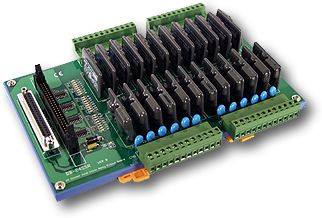

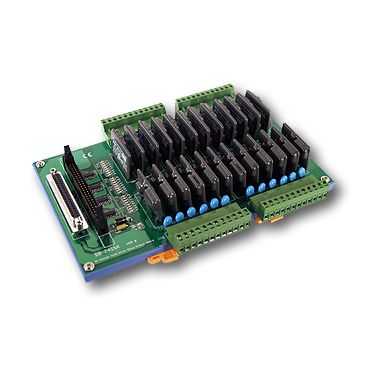

DB-24SSR

24-channel Solid State Relay Output Board with 1.5 meter 50-pin flat-cable Include : CA-5015 (50-pin Flat Cable 1.5m)

  • 24 SSR (AC)
  • One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
  • Connects directly to OPTO-22 compatible board or any 722,724 series board
  • 8-channel max. load 4A/250V AC (per channel)
  • LED’s indicated relay status
  • Screw terminals for easy field wiring
  • Solid State Relay (SSR)
  • Load voltage : 50~250VAC
  • Repetitive Peake OFF voltage : 600V Surge current : 50A
  • Max. Load current : 4A
  • Max. "Off-state" leakge current : 50mA
  • Operate time, max.: 1/2 cycle of voltage sine wave: 1ms
  • Power Consumption : +5V @0.4A max
  • Dimension : 223.5mm X 135.5mm
  • Operating Temperature : 0 -60°C
  • Storage Temperature : -20-70°C
  • Humidity : 5% to 90 % noncondensing
