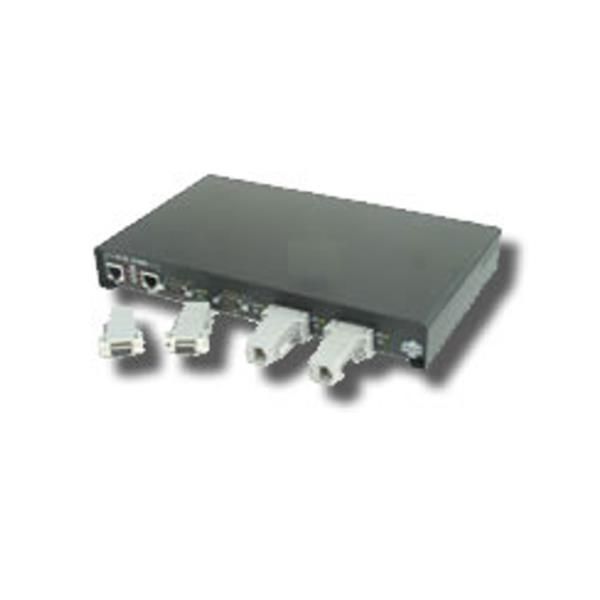

DeviceMaster RTS4-RJ45

DeviceMaster RTS DB9/RJ45 Serial Device Server - 4 Ports

DeviceMaster RTS DB9/RJ45 Serial Device Server - 4 Ports
  • RTS4-RJ45
  • Embedded Systems—Ready for Mainstream Deployment
  • Low-cost, solid-state microcomputer
  • No Assembly Required! Comes ready-to-use right out of the box.
  • NS-Link™—The Industry’s First and Best Network Port Extender - uses standard TCP/IP protocol to provide transparent COM and TTY port access across Ethernet networks
  • NS-Link SocketServer™ mode makes ports available to the software via TCP/IP socket connections, eliminating the need for OS-specific drivers and allowing "tunneling" between units over any distance via Ethernet.
  • Software Selectable Ports easily switches from RS-232, RS-422, or RS-485 interfaces
  • System Reliability. With no moving parts, DeviceMaster RTS won’t crash due to hard drive system failure. And the dreaded “blue screen” will never appear because the system uses a highly reliable, real-time, deeply embedded operating system.
  • Real Plug-and-Play. Once it is physically connected to the Ethernet hub, the system can be set up, configured, and monitored over a LAN, WAN, or even the Internet. (No training required!)
  • Watchdog and Reset. If the system incurs a software fault, the built-in watchdog/reset circuit can automatically restart the system.
  • Event Notification. Configuration options provide event notification capability, so that when a specified event occurs, the system will send an e-mail to the designated engineer.
  • Network Monitoring and Software Download/Reload. When the system is connected to the network, performance can be monitored using a Web browser. If the software on the system requires update or reload, that also can be accomplished remotely over the network—saving engineer travel time and expense.
Related Products
Technical Specifications

Base System

  • Solid-state design embedded microcomputer powered by a 44 MHz ARM7 processor running Red Hat’s eCos real-time operating system
  • Data storage and local application processing supported by 4MB onboard Flash and 8MB onboard RAM

Network Interface

  • 10/100Base-T Ethernet connectivity with built-in hub and downstream port for “daisy-chaining” systems or network-ready devices

Peripheral/Device Communication

  • Powered by Comtrol’s proprietary high-performance serial processor for sustained, simultaneous data
  • throughput at 230 Kbps across all ports
  • Models with RJ45 and DB9 serial connectors
  • Software-selectable ports supporting RS-232, RS-422, or RS-485 interfaces

Application Software Port Access

  • Application software running under any of the supported Operating Systems can access DeviceMaster ports using Comtrol’s NS-Link software
  • Applications software can access serial ports via TCP/IP sockets from anywhere on the network using Comtrol’s SocketServer™ software with DeviceMaster

Management and Diagnostics

  • Browser-accessible HTML interface provides easy setup and configuration through the local network or the Internet
  • SNMP client for system monitoring
  • System watchdog with automatic reset
  • User-selectable event monitoring and e-mail notification of event activity
  • Software updates via network download

Programmability

  • Fully programmable utilizing Comtrol’s DeviceMaster developer kit and/or generally available GNU tools from Red Hat, Inc
  • Customizable Web server with Java applet serving support
