GPU-RTXA4000-16GB-PNY This item is no longer available.

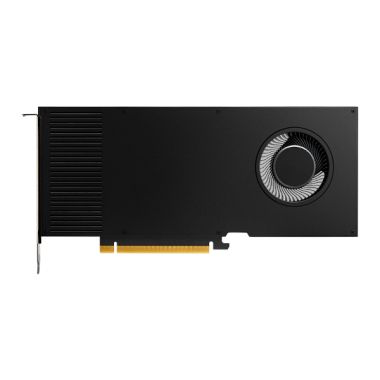

NVIDIA Quadro RTX A4000 16GB GDDR6, PCIe 4.0 x16
NVIDIA Ampere Architecture
CUDA Cores
Second Generation RT Cores
Third Generation Tensor Cores
PCIe Gen 4
Higher Speed GDDR6 Memory
Error Correcting Code (ECC) on Graphics Memory
Fifth Generation NVDEC Engine
Seventh Generation NVENC Engine
Graphics Preemption
Compute Preemption
NVIDIA RTX IO
Architecture - NVIDIA Ampere Architecture
Process Size - 8nm
Transistors - 17.4 Billion
Die Size - 392.5 mm2
CUDA Cores - 6144
Tensor Cores - 192
RT Cores - 48
Single Precision Performance - 19.2 TFLOPS
RT Core Performance - 37.4 TFLOPS
Tensor Performance - 153.4 TFLOPS
GPU Memory - 16 GB GDDR6 with ECC
Memory Interface - 256-bit
Memory Bandwidth - 448 GB/sec
Display Connectors - 4x DisplayPort 1.4a
NVENC | NVDEC - 1x | 1x (+ AV1 decode)
System Interface - PCI Express 4.0 x16
Form Factor - 4.4” H x 9.5” L Single Slot
Thermal Solution - Active Fansink
Maximum Power Consumption - 140 W
NVIDIA Quadro and RTX Power Guidelines - Power Connector
1x 6-pin PCIe - Max Digital Resolution
7680 x 4320 x36 bpp at 60 Hz
NVIDIA Quadro and RTX Display Resolution Support
NVIDIA 3D Vision and 3D Vision Pro
Support via 3-pin mini DIN
Frame Lock
Optional NVIDIA Quadro Sync II
