HUM-5-5102C-31

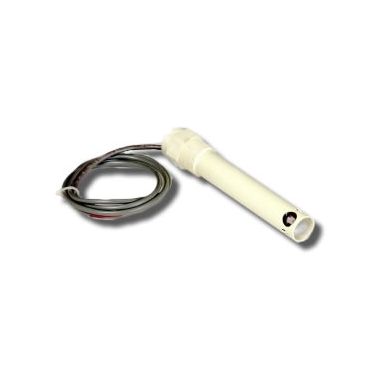

Humidity Sensor with Humidity Two-Wire 4 to 20 mA Transmitter. Round tubular PVC case with four flow holes at sensing end. .. Dimensions of the tube are 6.0" long x 3/4" diameter. 7 to 24 VDC (Customer to provide loop voltage)..

  • Range: 10 to 90% RH, non-condensing, +/-5%
  • Response time: 90 seconds typical
  • Power: obtained from current loop
  • Package: tubular round PVC case, 6.0 inches x 7/8 inch diameter, clamp or thread mounting
  • Operating temperature: 0 to 70 C.
  • Cable: 2 wire, 12 inches
  • PACKAGE:
    • Round tubular PVC case with four flow holes at sensing end.
    • Dimensions of the tube are 6.0" long x 3/4" diameter.
  • USABLE HUMIDITY TRANSMITTER RANGE: 10 to 90 %RH (+/- 5% RH over range)
  • CONNECTIONS: 2 Feet of 2 conductor cable
  • LOOP POWER: 7 to 24 VDC (Customer to provide loop voltage)
  • MAXIMUM ALLOWABLE RESISTANCE OF CURRENT LOOP:
    • 0 Ohms @ 7 VDC
    • 250 Ohms @ 12 VDC
    • 750 Ohms @ 24 VDC
  • HUMIDITY TRANSMITTER OPERATION AND OUTPUT: One 4 to 20 MA output
  • Output is 4.0 MA at 0 %RH and 20.0 MA at 100 %RH.
  • USABLE AMBIENT TEMPERATURE RANGE: 0 to 70 Deg. C
