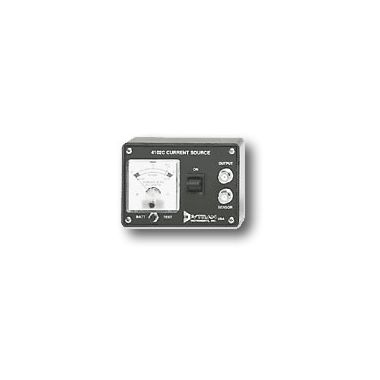

ICP-4102C

Battery-powered, ICP® sensor signal conditioner, 1-channel, BNC input/output conn.

  • Portable
  • Low Cost
  • 1 x BNC Connector
  • 1-Channel ICP Sensor Signal Conditioner
  • SENSOR SUPPLY CURRENT, FIXED, NOM.: 2.0 mA
  • COMPLIANCE VOLTAGE: +18 VDC
  • VOLTAGE GAIN: N/A
  • COUPLING TIME CONSTANT INTO 10 MEGOHM LOAD: 10 SEC
  • COUPLING TIME CONSTANT INTO 1 MEGOHM LOAD: 5 SEC
  • LOW FREQUENCY -3db FREQ., 10 MEGOHM LOAD: 0.016 Hz
  • LOW FREQUENCY -3db FREQ., 1 MEGOHM LOAD: .032 Hz
  • HIGH FREQUENCY RESPONSE: DETERMINED BY SENSOR, CABLE LENGTH AND SIGNAL LEVEL
  • COUPLING CAPACITOR, NOM.: 10 mF
  • PULLDOWN RESISTOR: 1.0 MEGOHMS
  • MONITOR VOLTMETER RANGE, F.S.: 20 VDC
  • ELECTRICAL NOISE, WIDEBAND: 60 mV, RMS
  • SENSOR CONNECTOR: BNC JACK
  • OUTPUT CONNECTOR: BNC JACK
  • POWER SOURCE: 1 9 VOLT BATTERIES 2
  • BATTERY LIFE, TYP.: 80 HOURS
  • SIZE (H x W x D): 2 x 3 x 4 INCHES
