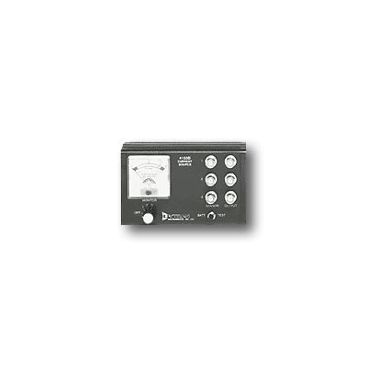

ICP-4103C

Battery-powered, ICP® sensor signal conditioner, 3-channel, BNC input/output conn.

Battery-powered, ICP® sensor signal conditioner, 3-channel, BNC input/output conn.
  • ICP-4103C
  • Portable
  • Low Cost
  • 3 x BNC Connector
  • 3-Channel ICP Sensor Signal Conditioner
Related Products
Technical Specifications
  • COMMON SPECIFICATIONS, EACH CHANNEL
    • SENSOR SUPPLY CURRENT, FIXED,: 2.0 mA
    • COMPLIANCE VOLTAGE: +18 VDC
    • VOLTAGE GAIN: UNITY
    • COUPLING TIME CONSTANT INTO 10 MEGOHM LOAD: 10 SEC
    • COUPLING TIME CONSTANT INTO 1 MEGOHM LOAD: 5 SEC
    • LOW FREQUENCY: -3db FREQ., 10 MEGOHM LOAD 0.016 Hz
    • LOW FREQUENCY: -3db FREQ., 1 MEGOHM LOAD .032 Hz
    • HIGH FREQUENCY RESPONSE: DETERMINED BY SENSOR, CABLE LENGTH AND SIGNAL LEVEL
    • COUPLING CAPACITOR, NOM.: 10 mF
    • PULLDOWN RESISTOR: 1.0 MEGOHMS
    • MONITOR VOLTMETER RANGE, F.S.: 20 VDC
    • ELECTRICAL NOISE, WIDEBAND: 60 mV, RMS
    • SENSOR CONNECTOR: BNC JACK
    • OUTPUT CONNECTOR: BNC JACK
  • GENERAL SPECIFICATIONS
    • POWER SOURCE: 1 9 VOLT BATTERIES 2
    • BATTERY LIFE, TYP.: 40 HOURS
    • SIZE (H x W x D): 2.5 x 5.2 x 3.3 INCHES
    • WEIGHT: 12 OUNCES
