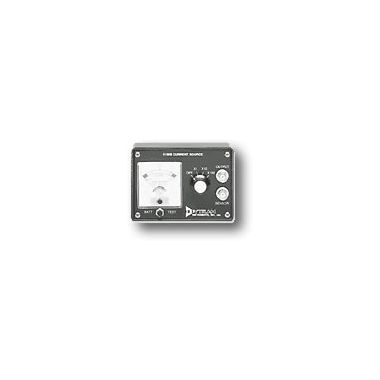

ICP-4105C

Battery-powered, ICP® sensor signal conditioner with gains x1,x10, x100, 1-channel, BNC input/output conn.

Battery-powered, ICP® sensor signal conditioner with gains x1,x10, x100, 1-channel, BNC input/output conn.
  • ICP-4105C
  • Portable
  • Low Cost
  • 1 x BNC Connector
  • 1-Channel ICP Sensor Signal Conditioner
Related Products
Technical Specifications
  • Sensor Supply Current, Fixed: 1.4mA to 2.6mA
  • Sensor Compliance Voltage: +18VDC
  • Voltage Gains, +/- 1% (Switch Selectable): x1, x10, x100
  • Output Voltage Swing, F.S.: +/- 5V
  • Output Coupling Capacitor: 10 uF
  • Output Impedance: 50 Ohms
  • Input Coupling Time Constant: 5 Seconds
  • Frequency Response (+/- 5%) Measured @ F.S. Output, No Filter Installed:
    • Gain x1: 0.1 to 100K Hz
    • Gain x10: 0.1 to 50K Hz
    • Gain x100: 0.1 to 50K Hz
  • Sensor Connector: BNC Jack
  • Output Connector: BNC Jack
  • Batteries (2 Supplied): 9 Volt Transistor Radio Dry Cells
  • Battery Life, Nominal: 40 Hours
  • Size (H x W x D): 2.2" x 4" x 2.9"
  • Weight: 11oz / 312g
