ICP-4110C

Line-powered, ICP® sensor signal conditioner, 1-channel, unity gain, BNC input/output conn.

  • 1-Channel ICP Sensor Signal Conditioner
  • Line-powered
  • Portable
  • Low Cost
  • 2 x BNC Connector (1 In, 1 Out)
  • 2-20 mA adjustable current, with zero clamp
  • SENSOR DRIVE CURRENT ADJUSTMENT RANGE: 2.0 - 20.0 mA
  • COMPLIANCE VOLTAGE: +24 VDC
  • VOLTAGE GAIN: 1 UNITY
  • DE-COUPLING CAPACITOR: 10 µF
  • PULLDOWN RESISTOR: 1 MEGOHM
  • COUPLING TIME CONSTANT WITH NO LOAD: 10 SEC
  • COUPLING TIME CONSTANT WITH 1 MEGOHM LOAD: 1 SEC
  • LOW FREQUENCY -3db FREQ. WITH NO LOAD: 0.016 Hz
  • LOW FREQUENCY -3db FREQ. WITH 1 MEGOHM LOAD: .03 Hz
  • HIGH FREQUENCY RESPONSE: DETERMINED BY SENSOR, CABLE LENGTH AND SENSOR DRIVE CURRENT
  • BACKGROUND ELECTRICAL NOISE, WIDEBAND: 150 µV RMS
  • SENSOR CONNECTOR, REAR PANEL: BNC JACK
  • OUTPUT CONNECTOR, REAR PANEL: BNC JACK
  • POWER REQUIRED: 1.1 VA

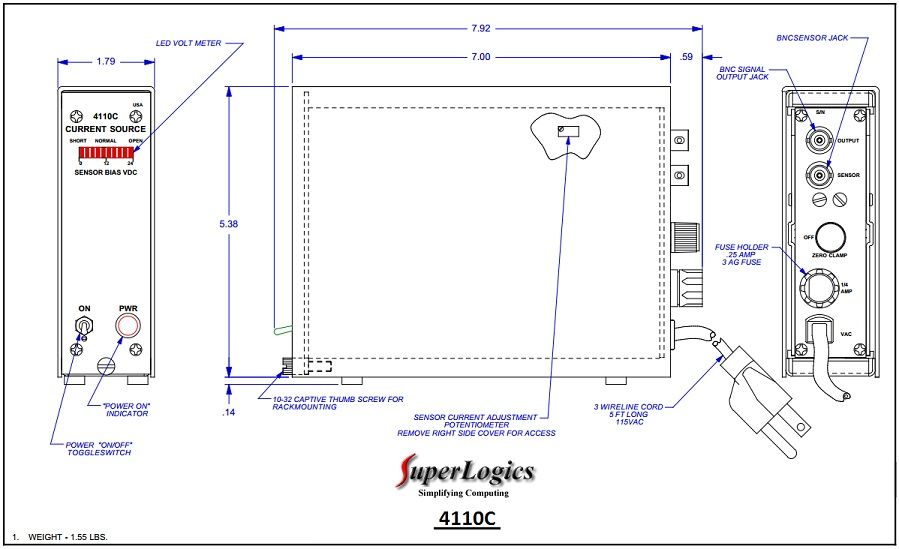

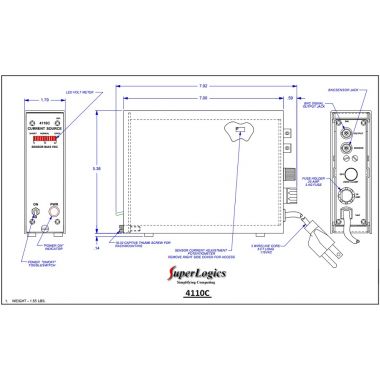

  • SIZE (H x W x D): 5.5 x 1.6 x 8.0 INCHES
