ICP-4114B1

Line-powered, ICP® sensor signal conditioner, 4-channel current source

  • 4-Channel ICP Sensor Signal Conditioner
  • Line-powered
  • Portable
  • Low Cost
  • 8 x BNC Connector (4 Input, 4 Output)
  • 2-20 mA adjustable current
  • SENSOR DRIVE CURRENT ADJUSTMENT RANGE: 2 to 20 mA
  • COMPLIANCE VOLTAGE: +24 VDC
  • VOLTAGE GAIN: 1 UNITY
  • DE-COUPLING CAPACITOR: 10 µF
  • PULLDOWN RESISTOR: 1 MEGOHM
  • COUPLING TIME CONSTANT, NO LOAD: 10 SECONDS
  • COUPLING TIME CONSTANT, 1 MEGOHM LOAD: 1 SECONDS
  • LOWER -3db FREQUENCY, NO LOAD: 0.016 Hz
  • LOWER -3db FREQUENCY, 1 MEGOHM LOAD: 0.03 Hz
  • HIGH FREQUENCY RESPONSE: DETERMINED BY SENSOR, CABLE LENGTH AND SENSOR DRIVE CURRENT.
  • BACKGROUND ELECTRICAL NOISE, WIDEBAND: 150 µV RMS
  • SENSOR CONNECTOR, REAR PANEL: BNC JACK
  • OUTPUT CONNECTOR, REAR PANEL: BNC JACK
  • POWER CORD: 3-WIRE W/GND 6 FT
  • POWER REQUIRED: 4.4 VA

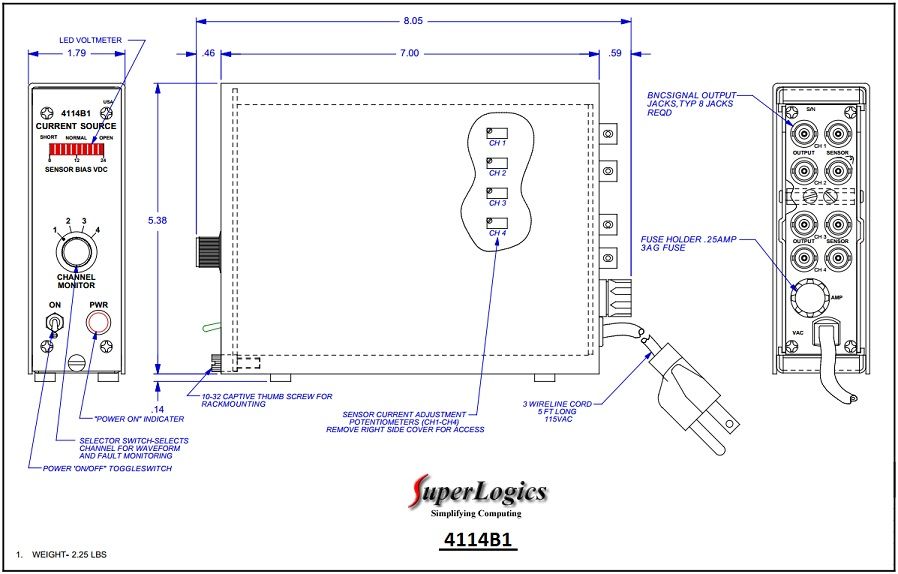

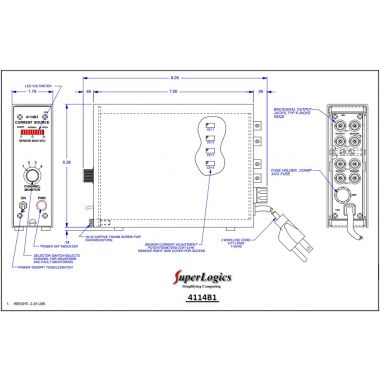

  • SIZE, H x W x D: 5.5 x 1.6 x 8.0 IN
  • WEIGHT: 32 OZ / 907 GRAMS
