ICP-4120 This item is no longer available.

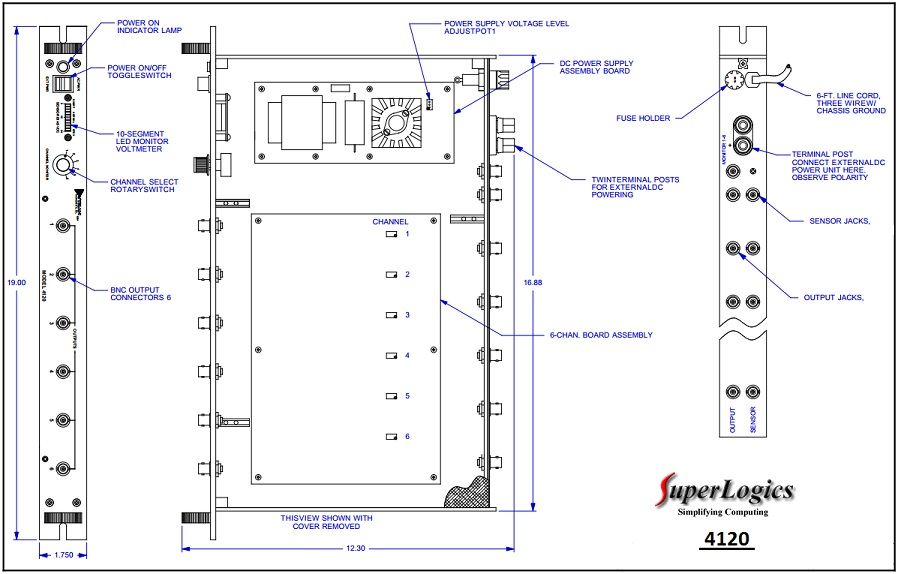

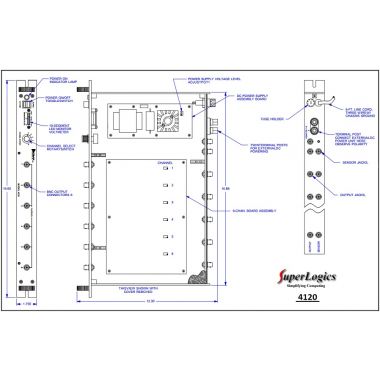

Line-powered, ICP® sensor signal conditioner, 6 channel, 1U, 19" Rackmount configuration

  • 19" rack mount 1U design
  • Line-powered
  • Low Cost
  • 12 x BNC Connector (6 Input, 6 Output)
  • 6-Channel ICP Sensor Signal Conditioner
  • 2-20 mA adjustable current
  • SENSOR SUPPLY CURRENT PER CHANNEL (Factory set at 5 ma): 2 TO 20, ADJUSTABLE mA
  • NUMBER OF SENSOR CHANNELS: 6
  • SENSOR EXCITATION VOLTAGE (COMPLIANCE VOLTAGE): +24 VDC
  • VOLTAGE GAIN: UNITY
  • FRONT PANEL LED VOLTMETER F.S.: +24 VDC
  • OUTPUT COUPLING CAPACITOR: 10 µF
  • COUPLING TIME CONSTANT WITH 10 MEGOHM LOAD: 100 SEC
  • COUPLING TIME CONSTANT WITH 1 MEGOHM LOAD: 10 SEC
  • LOWER -3db FREQUENCY WITH 10 MEGOHM LOAD: 0.0016 Hz
  • LOWER -3db FREQUENCY WITH 1 MEGOHM LOAD: 0.016 Hz
  • HIGH FREQUENCY RESPONSE: DETERMINED BY SENSOR AND CABLE LENGTH
  • NOISE, WIDEBAND: 150 µV
  • SENSOR CONNECTORS, REAR PANEL: BNC JACKS (6)
  • OUTPUT CONNECTORS, FRONT AND REAR PANELS: BNC JACKS (12)
  • POWER CORD: 3-WIRE WITH CHASSIS GROUND 6 FT
  • POWER REQUIRED: 6.5 VA
  • LINE VOLTAGE REQUIRED: 115 VAC
  • WEIGHT 2.3 LBS
