SL-EB-LL6412G-S18
Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q1 2028) with Intel Celeron SoC, Intel Celeron J6412 Elkhart Lake Platform (Quad Core 2.0GHz/10W, Turbo 2.6GHz), 2x GB (10/100/1000) LAN, 6x Serial, Up to 32GB RAM, 6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), Dimensions of Enclosure: 2.60"L x 12.30"W x 8.27"H, Power Supply AC/DC Power Adapter Included.
Completely Fanless,
Type:
- Microbox PC
- Dimension: 2.60" x 12.30" x 8.27"
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J6412 Elkhart Lake Platform (Quad Core 2.0GHz/10W, Turbo 2.6GHz)
- Long Production Cycle Motherboard (Through Q1 2028)
- LAN: 2x Ports (GB (10/100/1000))
- Video: VGA + HDMI
- Audio: Realtek® ALC897
- Ports:
6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Rear )
6x COM Ports (4 RS232 Internal Headers, 2 RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Memory: 8GB DDR4 3200MHz SODIMM RAM
- Hard Drive: 250GB Solid State Drive - M.2 2280 Internal - SATA (SATA/600)
- Power Supply: AC/DC Power Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

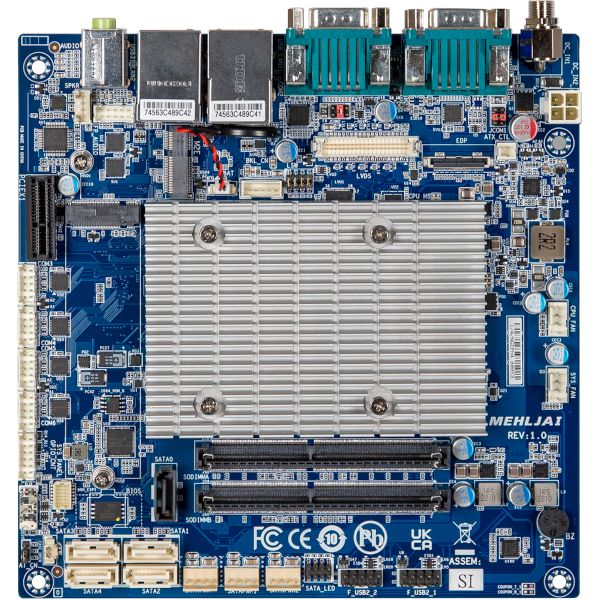

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Fanless
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2028
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron J6412 Elkhart Lake Platform (Quad Core 2.0GHz/10W, Turbo 2.6GHz)
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: SO DIMM DDR4 3200MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: Realtek® ALC897
- On Board Video
- Video Chipset: Intel® UHD Graphics for 10th Gen Intel® Processors
- Video on IO: VGA + HDMI
- VGA Port Out: 1
- Embedded DisplayPort Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type: GB (10/100/1000)
- LAN Chipset: Realtek RTL8111H
- Second LAN Chipset: Realtek® RTL8111H
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 5
- M.2 Slot Specs
- M.2 Slot #1 Specs
- M.2 SATA SSD
- 2280 - 22 mm x 80 mm.

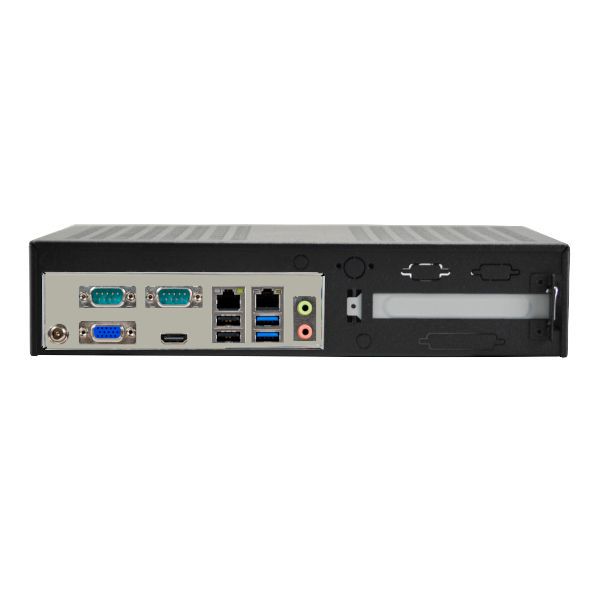

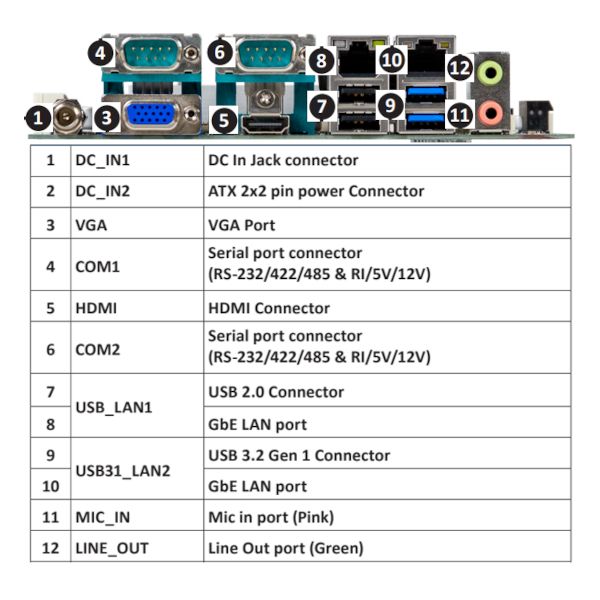

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Serial 232/422/485 Ports: 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- Serial (via Headers): 4
- FAN Connectors: 2
- Audio on Headers
- LVDS
- TPM Support: 2.0 Module Included
- DC Power: DC Jack (+12V/+19V~+24VDC)
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 0%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT 2021 LTSC Entry
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
Expansion Slots
1 x PCIe x1 (Gen 3x1)
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-KeyTPM
Onboard TPM 2.0 security chip
Infineon SLB9670VQ2.0Storage
5 x SATA 6Gb/s Ports
(4 x Asmedia ASM1064)
(1 x supports SATA DOM) - Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Micro PC
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 7.5""
- Internal 2.5" Bays: 2
- Serial Port Punchouts: 3
- Parallel Port Punchouts: 1
- Antennae Punchout: 2
- Front Ports
- USB 2.0 Port (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Physical
- Depth: 2.60"
- Depth (Inches): 2.6
- Width: 12.30"
- Height: 8.27"
- Shipping Box - Depth: 16"
- Shipping Box - Width: 16"
- Shipping Box - Height: 8"
- Shipping Weight: 11lbs
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: AC/DC Power Adapter Included
