SL-EB-LLQ670EI-S15

Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q1 2029) with Intel Q670 Chipset, 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, 2x 2.5 Gigabit + 1 Gigabit LAN, 5x Serial, Up to 64GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 3x USB 3.2 Gen 1 Ports ( 1 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 1x Expansion Slots, Dimensions of Enclosure: 9.45"L x 10.35"W x 3.74"H.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Microbox PC
Dimension: 9.45" x 10.35" x 3.74"

Motherboard:

Featuring Intel Q670 Chipset and 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 processor
Long Production Cycle Motherboard (Through Q1 2029)
Full Height Slots:
1 - PCIe x16
LAN: 2x Ports (2.5 Gigabit + 1 Gigabit )
RAID: 0,1 NVMe Only
Video: DisplayPort + DisplayPort + DisplayPort + HDMI
Audio: Realtek® ALC897
Ports:
6x USB 2.0 Ports ( 2 Front, 4 Rear )
3x USB 3.2 Gen 1 Ports ( 1 Rear, 2 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
5x COM Ports (3 RS232 Internal Headers, 1 RS232/422/485 Rear, 1 RS232/422/485 Internal Headers)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)
Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 220W Flex ATX Power Supply 115/230VAC Auto switching.
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

G6900- 3.40GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 710 (46W) (ERM) show $105.00

G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)Part Delay: ETA May 10, 2024 show $146.00

i3-13100 - 3.40GHz (up to 4.50GHz) Intel Core CPU - 4 Core, 12MB Cache, UHD Graphics 730 (Base 60W, Max 89W) (ERM) show $236.00

i5-13400 - 2.50GHz (up to 4.60GHz) Intel Core CPU - 10 Cores, 20MB Cache, UHD Graphics 730 (Base 65W, Max 154W) (ERM) show $371.00

i7-13700 - 1.50GHz (up to 5.20GHz) Intel Core CPU - 16 Cores (8 P Cores + 8 E Cores), 30 MB Cache, UHD Graphics 770 (Base 65W, Max 219W) (ERM) show $640.00

i7-13700K - 2.50GHz (up to 5.40GHz) Intel Core CPU - 16 Cores (8 P Cores + 8 E Cores), 24 MB Cache, UHD Graphics 770 (Base 125W, Max 253W) show $697.00

i9-13900 - 2.0GHz (up to 5.60GHz) Intel Core CPU - 24 Cores (8 P Cores + 16 E Cores), 32 MB Cache, UHD Graphics 770 (Base 65W, Max 219W) (ERM) show $948.00

i9-13900K - 2.20GHz (up to 5.80GHz) Intel Core CPU - 24 Cores (8 P Cores + 16 E Cores), 36 MB Cache, UHD Graphics 770 (Base 125W, Max 253W) show $940.00

Memory

x 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $38.00

x 16GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $65.00

x 32GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $165.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Hard Drive

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $73.00

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $113.00

1TB NVMe SSD M.2 3.5GB/3.0GB - Samsung 980 show $165.00

500GB PCIe 4.0 NVMe SSD M.2 6,900MBps/5,000MBps - Samsung 980 PRO show $148.00

1TB PCIe 4.0 NVMe SSD M.2 7,000MBps/5,000MBps - Samsung 980 PRO show $165.00

2TB PCIe 4.0 NVMe SSD M.2 7,000MBps/5,100MBps - Samsung 980 PRO show $238.00

4TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $445.00

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $428.00

Additional Hard Drives

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $73.00 each

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $113.00 each

1TB NVMe SSD M.2 3.5GB/3.0GB - Samsung 980 show $165.00 each

500GB PCIe 4.0 NVMe SSD M.2 6,900MBps/5,000MBps - Samsung 980 PRO show $148.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,000MBps/5,000MBps - Samsung 980 PRO show $165.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,000MBps/5,100MBps - Samsung 980 PRO show $238.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $445.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $428.00 each

Raid Controller

None show Included

Configure NVMe RAID 0 (Striping) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter. show $0.00

Configure NVMe RAID 1 (Mirroring) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter show $0.00

Cable

TPM 2.0 Module - TPM IC: Nuvoton NPCT750. Pin Dimension: 14-1pin show $31.00 each

Add 2 USB 3.x A Female Ports via internal USB header cable show $25.00 each

10ft High Speed 18Gbps HDMI Cable, HDR - Black show $19.00 each

3 ft HDMI® to DVI-D Cable - M/M show $6.00 each

6 ft HDMI® to DVI-D Cable - M/M show $17.00 each

Plug-In Boards

M.2 NVMe Adapter - M.2 NVMe PCI-e M-key To PCI-e 3.0 x4 Card. Requires a PCIe x4 slot. show $19.00 each

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile.. show $43.00 each

Serial PCIe Card, 9pin 16550 UARTs - 2 Ports, Low Profile show $77.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP Mode - 1 Port, Low Profile show $69.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

4 Ports USB 3.2 Gen 1 PCIe Card Adapter with SATA Power - Supports Low Profile show $70.00 each

Add-In Graphic Card

None show Included

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support! show $244.00

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $464.00

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $555.00

NVIDIA Quadro RTX A2000 12GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $791.00

NVIDIA GeForce RTX 4060 8GB 128-Bit GDDR6 PCIe 4.0 x16 - Recommended 450W PSU show $449.00

Networking

M.2 2230 - Intel Wi-Fi 6 (Gig+) module via internal M.2 slot. Features Bluetooth 5.1 and WPA3 securit show $46.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $113.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $229.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $231.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $415.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

Power Supply

150W 1U Flex ATX Power Supply show $66.00

220W Flex ATX Power Supply 115/230VAC Auto switching. show $70.00

300W 1U Flex ATX Power Supply - 80+ Bronze CertifiedPart Delay: ETA May 24, 2024 show $97.00

400W 1U FLEX ATX Power Supply - 80+ Gold Efficient show $150.00

600W 1U FLEX ATX Power Supply - 80+ Platinum Efficient show $199.00

Operating System

None show Included

Microsoft Windows 11 Pro Downgrade to Windows 10 Pro 64-Bit. Includes Windows 11 Product Key Only. show $219.00

Microsoft Windows 10 IoT Enterprise 2021 LTSC 64-Bit: ATMs, Medical, Industrial - License For i7, XEON show $199.00

Microsoft Windows 10 IoT Enterprise 2021 LTSC 64-Bit: ATMs, Medical, Industrial - License For Socketed Intel Celeron, Pentium, i3 and i5 CPUs show $124.00

Microsoft Windows 11 Home, 64-Bit show $169.00

Microsoft Windows 11 Professional, 64-Bit show $199.00

Ubuntu Desktop Edition Standard (Latest LTS Compatible). Community Support Only. Installation CD Not Included. show $49.00

Monitors

Asus VP229Q 21.5" Full HD LED LCD Monitor - 16:9 - Black - 22" Class - In-plane Switching (IPS) Techno show $151.00 each

23.8" 16:9 75 Hz Adaptive-Sync IPS Monitor show $150.00 each

27" Monitor, 1080P Full HD, 75Hz, IPS, Adaptive-Sync, Eye Care, HDMI DisplayPort VGA USB Hub, Frameles show $228.00 each

29" HDR10 IPS Full HD UltraWide™ Monitor (2560x1080) with AMD FreeSync™, MAXXAudio®, Flic show $275.00 each

32" 4K UHD 3840 x 2160 Monitor Featuring Wide Color Gamut and FreeSync show $412.00 each

34" Ultra-Wide Freesync HDR Gaming Monitor 75Hz 1440P Eye Care DisplayPort HDMI,Black show $518.00 each

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $97.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $135.00 each

USB Keyboard/Mouse - Waterproof, NEMA4 show $502.00 each

USB Keyboard/Mouse - Waterproof, IP67/NEMA4x show $672.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $119.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $164.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $610.00

Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $120.00

* Required Fields

Technical Specifications

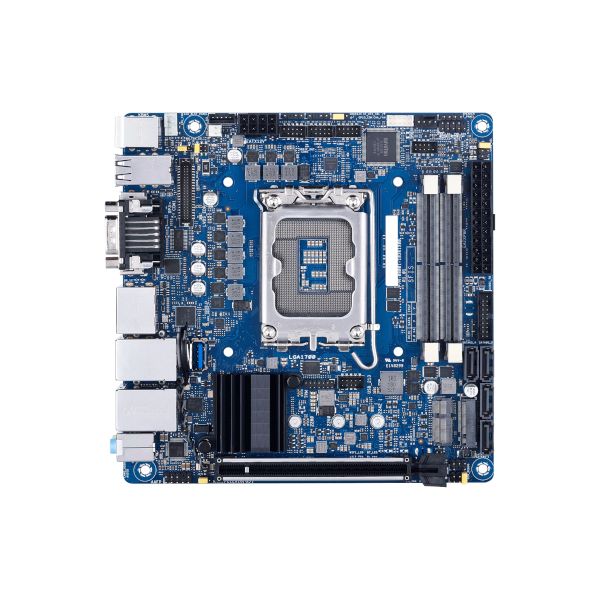

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MiniITX
Long Production Cycle
Long Life: YES
EOL Date: Q1 2029
Supported CPU
Number of Processors: 1
Processor Type: 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3
Chipset
Chipset: Intel Q670 Chipset
Memory
Memory Type: SO DIMM DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 64GB
On Board Audio
Audio Type: Realtek® ALC897
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: DisplayPort + DisplayPort + DisplayPort + HDMI
Display Port Out: 3
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: 2.5 Gigabit + 1 Gigabit
LAN Chipset: Intel® i210AT
Second LAN Chipset: Intel® i225-LM 2.5GbE Ethernet
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 3
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
M.2 SATA SSD
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

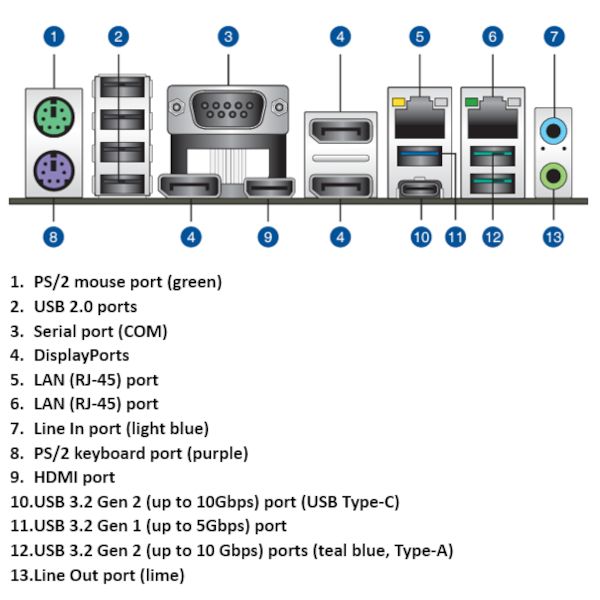

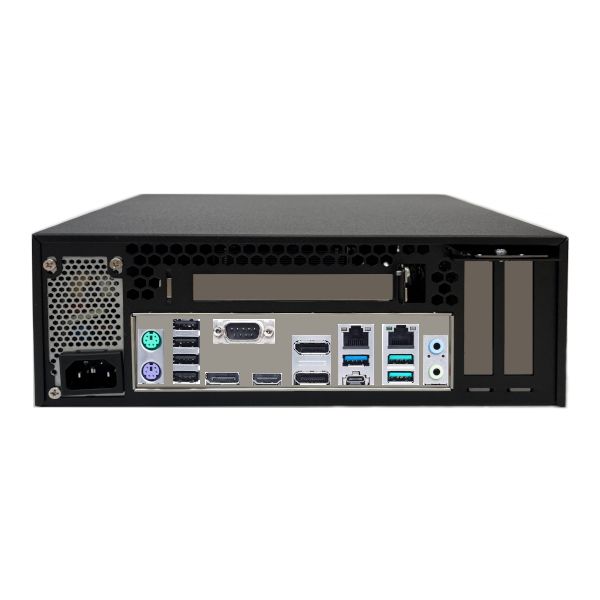

Rear IO
PS/2 Mouse on IO
PS/2 Keyboard on IO
USB 2.0 Ports (on IO): 4
USB 3.2 Gen 1 Type A Ports (on IO): 1
USB 3.2 Gen 2 Type A Ports (on IO): 2
USB 3.2 Gen 2 Type C Ports (on I/O): 1
Serial 232/422/485 Ports: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 2
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.0 Type A Interal: 1
Serial (via Headers): 3
Serial 232/422/485 Ports: 1
FAN Connectors: 2
Audio on Headers
LVDS
Chassis Intrusion
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 95%
Low Humidity: 5%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
LINUX Ubuntu Desktop
Compliance of Component
CE
FCC
Other Features
Features:
1x PCIe 5.0 x16 slot

1x M.2 Socket 3 with key M, type 2242/2260/2280 (SATA/PCIe and SATA modes)

1x M.2 Socket 1 with Key E, type 2230 for WIFI/BT device (PCIe & CNVi)

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers
Motherboard Warranty: 1 Year
