SL-EB-MH510I-S19 This item is no longer available.

A newer version of this item is available: SL-EB-AH610I-S19

Microbox PC - Embedded PC featuringIntel H510 Chipset, 10th/11th Gen Core i7/i5/i3 (LGA1200), 1x 2.5 Gigabit 10/100/1000/2500 Mb/s LAN, WIFI, Up to 64GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), 1x Expansion Slots, Dimensions of Enclosure: 8.30"L x 8"W x 3.50"H, Power Supply Power Adapter Included.



Type:

  • Microbox PC
  • Dimension: 8.30" x 8" x 3.50"

Motherboard:

  • Featuring Intel H510 Chipset and 10th/11th Gen Core i7/i5/i3 (LGA1200) processor
  • Low Profile Slots:
    1 - PCIe x16
  • LAN: 1x Ports (2.5 Gigabit 10/100/1000/2500 Mb/s)
  • WiFi: Intel AX201 Wi-Fi 6 (802.11ax) + BT 5.1
  • Video: DisplayPort + HDMI
  • Audio: Realtek® Audio CODEC
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 4 Rear )
    4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 8GB DDR4 3200MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th/11th Gen Core i7/i5/i3 (LGA1200)
  • Chipset
  • Chipset: Intel H510 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: Realtek® Audio CODEC
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DisplayPort + HDMI
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: 2.5 Gigabit 10/100/1000/2500 Mb/s
  • LAN Chipset: Realtek® RTL8125B
  • Wireless LAN: Intel AX201 Wi-Fi 6 (802.11ax) + BT 5.1
  • Drive Interface
  • SATA III Ports (6GB): 4
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 1
  • M.2 Slot #1 Specs
  • M.2 SATA SSD
  • PCIe Signal
  • 2280 - 22 mm x 80 mm.

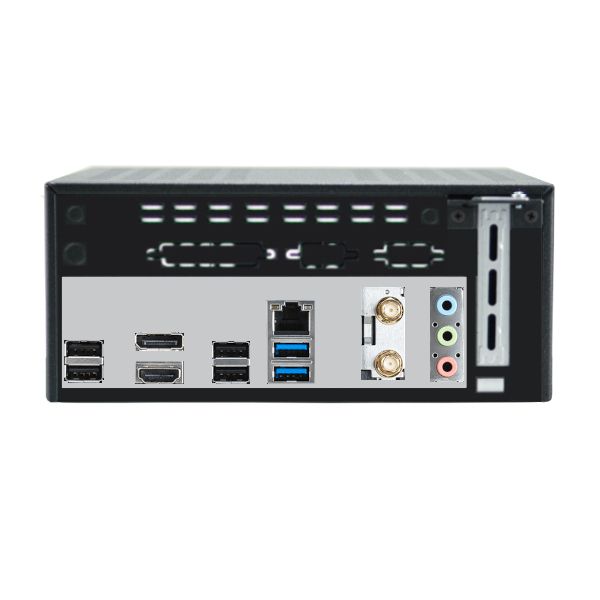

  • Rear IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.2 Gen 1 Type A Ports (on IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • FAN Connectors: 3
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • SL-Windows 11PRO to 10PRO 64bit
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows 10 IoT 2021 LTSC Value
  • Windows 10 IoT 2021 LTSC High End
  • Windows 11 Home (64 Bit)
  • Windows 11 Pro (64 Bit)
  • Windows 11 Pro for WS (64 Bit)
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • 1x PCIe x16 slot
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 1x M.2 slot (from H510 chipset)
    • Support up to PCIe 3.0
    • Supports SATA 6Gb/s
    • Supports 2280 storage devices

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Expansion
  • Low Profile Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 2
  • Parallel Port Punchouts: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 8.30"
  • Depth (Inches): 8.27
  • Width: 8"
  • Height: 3.50"
  • Shipping Box - Depth: 150mm
  • Shipping Box - Width: 380mm
  • Shipping Box - Height: 27mm
  • Shipping Weight: 13lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: Power Adapter Included
