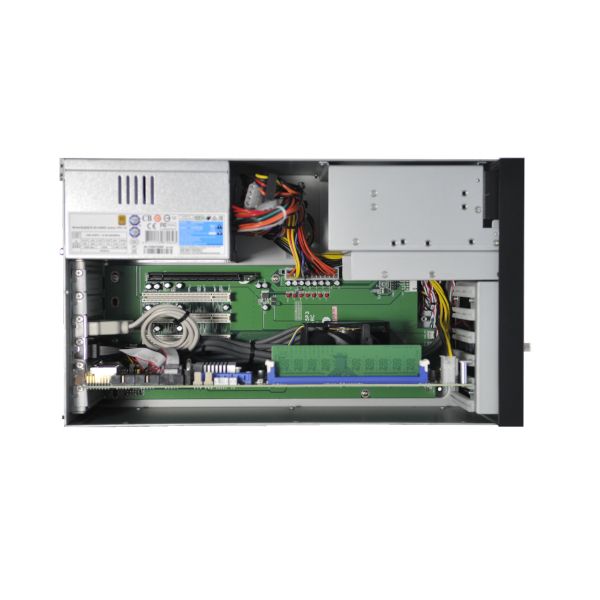

SL-MB-SBC-Q370-BA
Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q1 2029) with Intel Q370 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, 4x Serial, Up to 32GB RAM, 1x USB 2.0 Port( 1 Front ), 1x USB 3.2 Gen 1 Port( 1 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 4x Expansion Slots, Dimensions of Enclosure: 15.80"L x 9.45"W x 6.10"H.
Type:
- Microbox PC
- Dimension: 15.80" x 9.45" x 6.10"
Motherboard:
- Featuring Intel Q370 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
- Long Production Cycle Motherboard (Through Q1 2029)

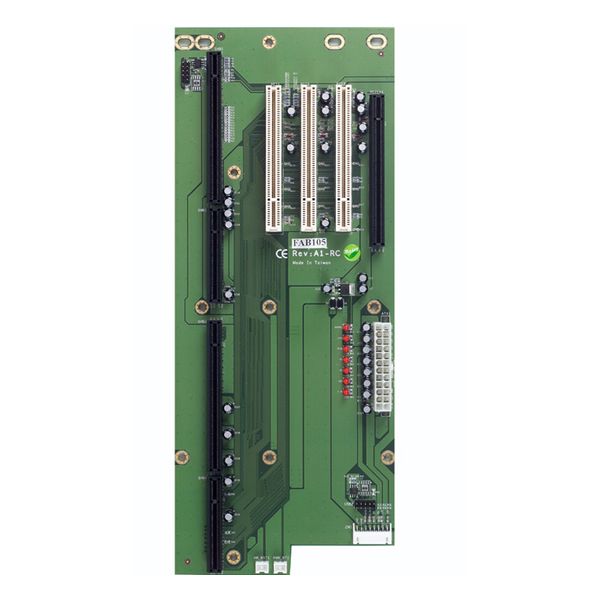

- Full Height Slots:
1 - PCIe x16
3 - PCI - LAN: 2x Ports (GB (10/100/1000))
- RAID: 0,1
- Video: DVI-I
- Audio: No Onboard Audio
- Ports:
1x USB 2.0 Port( 1 Front )
1x USB 3.2 Gen 1 Port( 1 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
4x COM Ports (2 RS232 Internal Headers, 2 RS232/422/485 Internal Headers)
1x Parallel Port (Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF)
Also Included:
- Processor: G5400 - 3.7GHz Intel Pentium Gold CPU - Dual Core, 4MB Cache, UHD Graphics 610 (54W) (ERM)
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Single Board Computer (SBC)
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2029
- PICMG: 1.3
- Supported CPU
- Number of Processors: 1
- Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
- Chipset
- Chipset: Intel Q370 Chipset
- Memory
- Memory Type: DDR4 2400MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DVI-I
- DVI-I Out: 1
- LAN
- LAN Ports: 2
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® i211AT
- Second LAN Chipset: Intel® i219LM
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- PCIe Signal
- 2280 - 22 mm x 80 mm.

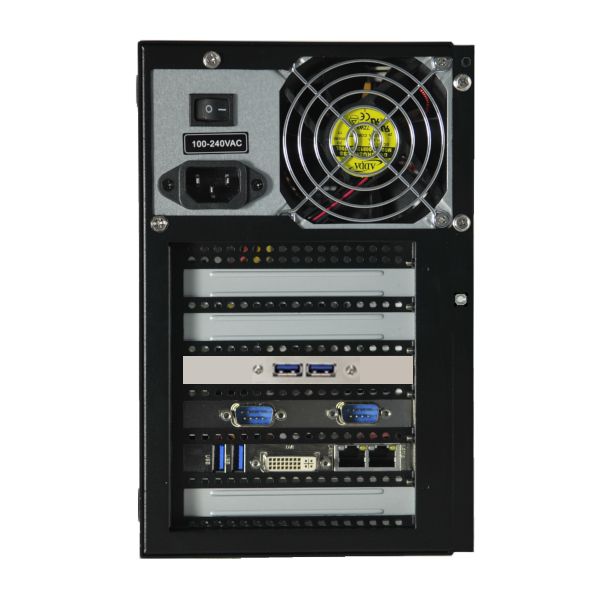

- Rear IO
- USB 3.2 Gen 2 Type A Ports (on IO): 2
- Headers
- USB 2.0 Ports (on Headers): 1
- USB 3.2 Gen 1 Ports (on Headers): 1
- Serial (via Headers): 2
- Serial 232/422/485 Ports: 2
- Parallel Ports: 1
- FAN Connectors: 3
- Audio on Headers
- PS/2 Combo (Mouse/Keyboard) on Headers
- TPM Support: Via 2.0 Header
- Management Features
- AMT
- vPRO
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF )
- High Humidity: 95%
- Low Humidity: 10%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- Other Features
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Embedded PC
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: 6-Slot SBC
- Slide Rails: Optional
- Expansion
- Full Height Slots: 6
- Max Card Depth: 13.25"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 1
- External 3.5" Bays: 1
- Front Ports
- USB 2.0 Port (Front): 2

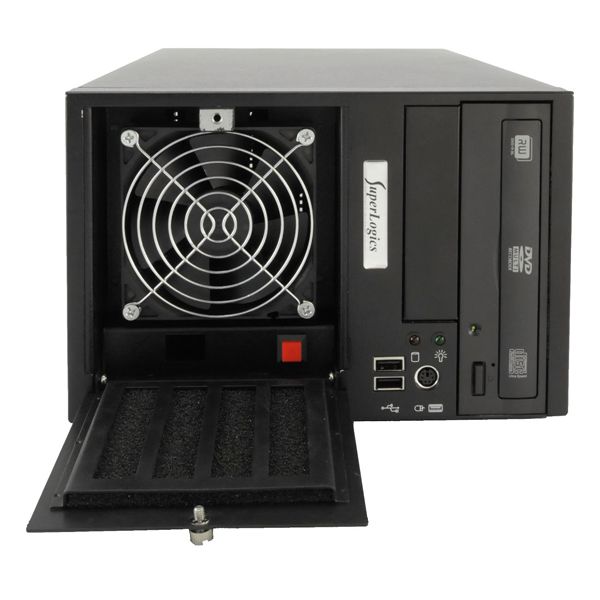

- Cooling System
- Maximum Fan Count: 1
- Included Fans: 1

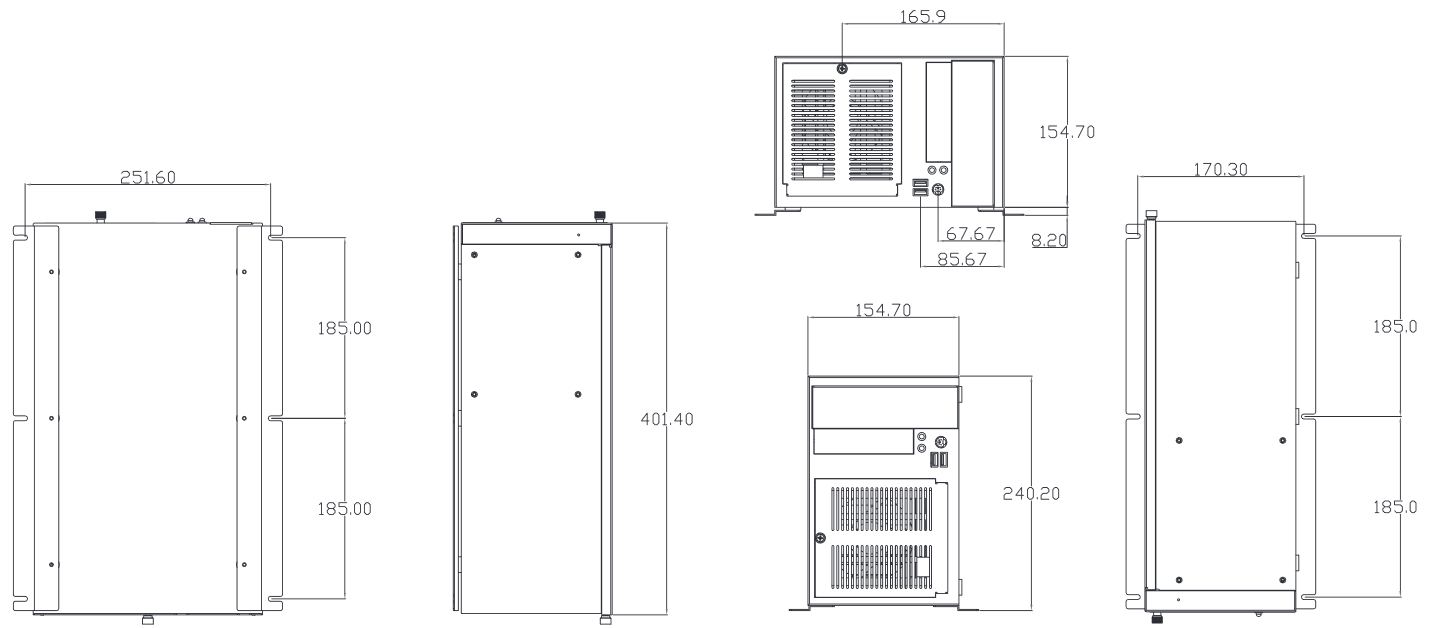

- Physical
- Depth: 15.80"
- Depth (Inches): 15.8
- Width: 9.45"
- Height: 6.10"
- Shipping Box - Depth: 11"
- Shipping Box - Width: 21"
- Shipping Box - Height: 15"
- Shipping Weight: 26lbs
- Other Features
- Chassis Warranty: 1 Year
