SL-EB-2500CC-S18 This item is no longer available.

Microbox PC - Embedded PC featuringIntel ATOM SoC, Intel Atom D2550 Processor (1.86GHzDual Core), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 4GB RAM, 7x USB 2.0, Dimensions of Enclosure: 2.60"L x 12.30"W x 8.27"H, 90w output, 12v input DC-DC Power Supply (modified for D2500CCE) - AC Adapter Included

Completely Fanless

Type:

  • Microbox PC
  • Dimension: 2.60" x 12.30" x 8.27"

Motherboard:

  • Featuring Intel ATOM SoC and Intel Atom D2550 Processor (1.86GHzDual Core)
  • LAN: 2xGB (10/100/1000)
  • Video: VGA + DVI-I
  • Audio: 5.1 channel by Realtek® ALC662
  • Ports:
    7x USB 2.0 Ports ( 2 Front, 4 Rear, 1 via internal headers)
    4x COM Ports (2 Rear, 2 on Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater)
  • Power Supply: 90w output, 12v input DC-DC Power Supply (modified for D2500CCE) - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

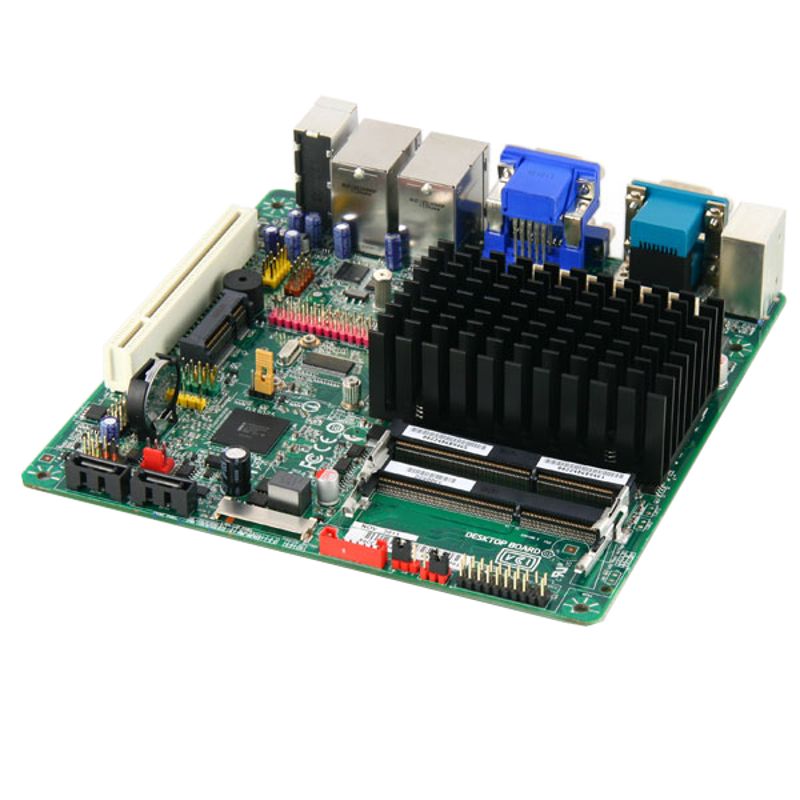

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Atom D2550 Processor (1.86GHzDual Core)
  • Chipset
  • Chipset: Intel ATOM SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 4GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC662
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: VGA + DVI-I
  • VGA Port Out: 1
  • DVI-I Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® 82574L
  • Second LAN Chipset: Intel® 82574L
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • mini PCIe

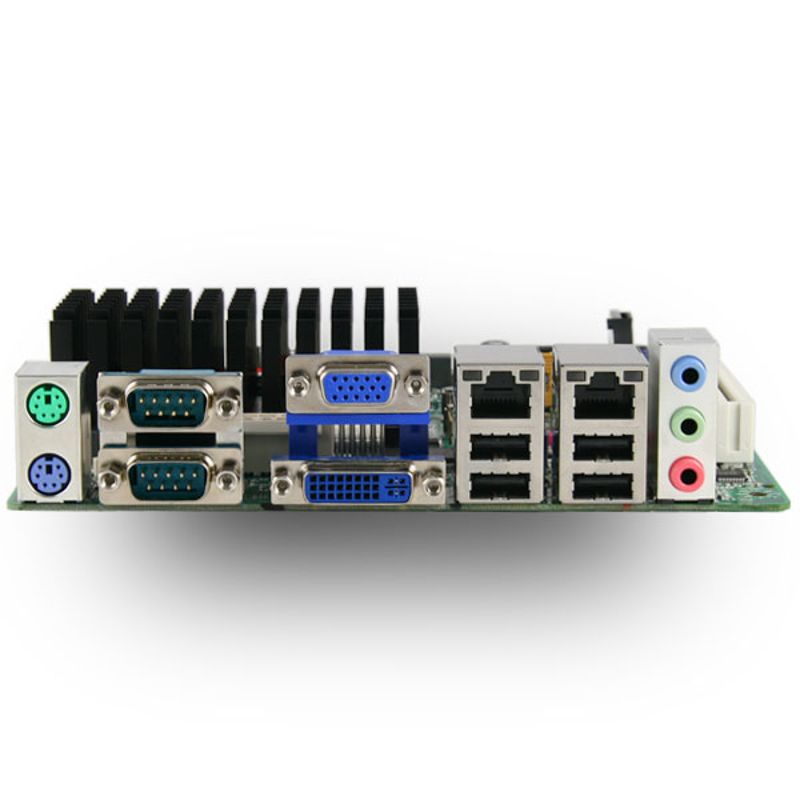

  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 4
  • Serial (Rear IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 3
  • Serial (via Headers): 2
  • Parallel Ports: 1
  • SPDIF Connector: 1
  • FAN Connectors: 1
  • LVDS
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows XP Pro (32-bit)
  • SL-Windows 7 Pro to XP Pro 32B
  • Windows Embedded 09
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows Embedded 7 (32-Bit)
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Motherboard Warranty: 1 Year

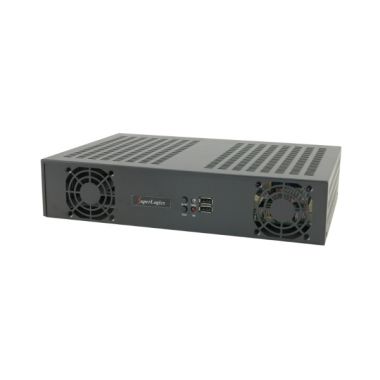

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 2.60"
  • Depth (Inches): 2.6
  • Width: 12.30"
  • Height: 8.27"
  • Shipping Box - Depth: 16"
  • Shipping Box - Width: 16"
  • Shipping Box - Height: 8"
  • Shipping Weight: 11lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
