Type:

  • Microbox PC
  • Dimension: 108mm x 161mm x 32mm

Motherboard:

  • Featuring Intel NM10 Chipset and Intel Atom D2550 Processor (1.86GHzDual Core)
  • LAN: 2xGB (10/100/1000)
  • Video: VGA + micro HDMI
  • Audio: 5.1 channel by Realtek® ALC886
  • Ports:
    3x COM Port (2 RS232/422/485 Rear, 1 RS232/422/485 on Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Onboard Memory: 2GB DDR3 800MHz RAM
  • Hard Drive: 120GB mSATA SSD SATA 6.0Gb/s, 520/320MB/s read/write (or greater)
  • Power Supply: 100-240VAC/12VDC 5A External Power Adapter
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Embedded
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Atom D2550 Processor (1.86GHzDual Core)
  • Chipset
  • Chipset: Intel NM10 Chipset
  • Memory
  • Memory Type: DDR3 800MHz Onboard
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 2GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC886
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + micro HDMI
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® WG82574LM
  • Second LAN Chipset: Intel WG82574LM
  • Wireless LAN: Wireless antennas pre-assembled
  • Drive Interface
  • Compact Flash: 1
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: full size
  • Second mini PCIe
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full size
  • Third mini PCIe
  • 3G Data Support
  • half and/or full size mini PCIe card: full size

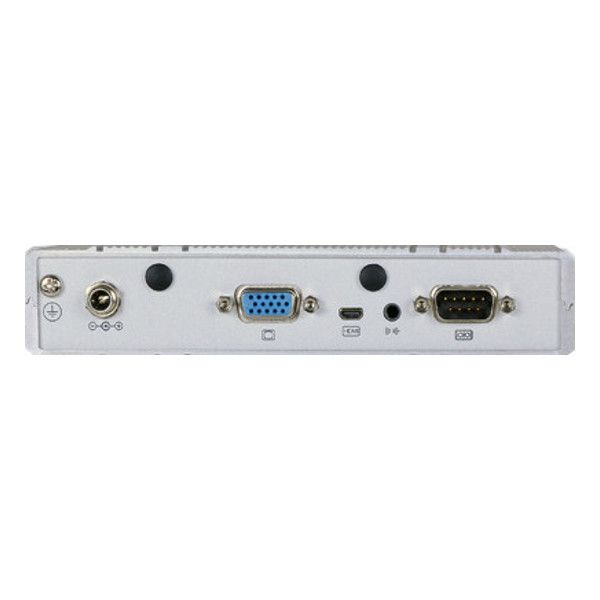

  • Rear IO
  • Serial 232/422/485 Ports: 2
  • Headers
  • Serial 232/422/485 Ports: 1
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 85%
  • Low Humidity: 10%
  • Operating System Support
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (FES) 64-Bit
  • Windows Embedded 7 (32-Bit)
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • CCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Front Facing I/O
  • Color: Silver
  • Material: Metal/Aluminum
  • Material Thickness: 1mm
  • Slide Rails: Optional

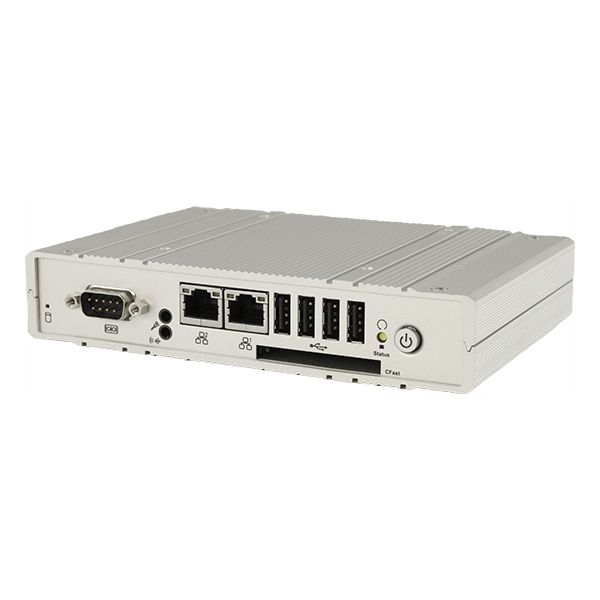

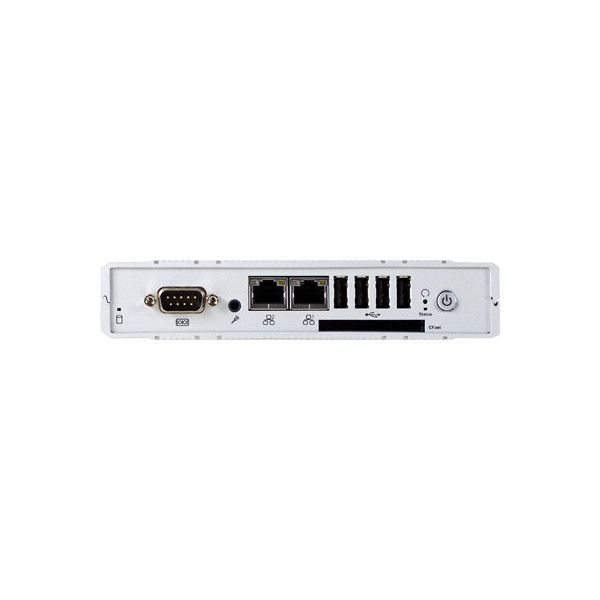

  • Front Ports
  • USB 2.0 Port (Front): 4
  • Front Audio Ports: 1
  • Physical
  • Depth: 108mm
  • Depth (Inches): 4.25
  • Width: 161mm
  • Height: 32mm
  • Shipping Box - Depth: 8.50"
  • Shipping Box - Width: 11.50"
  • Shipping Box - Height: 5.50"
  • Shipping Weight: 10lbs
  • Power
  • Built-in Chassis Power Supply: 100-240VAC/12VDC 5A External Power Adapter
