SL-EB-ICO300

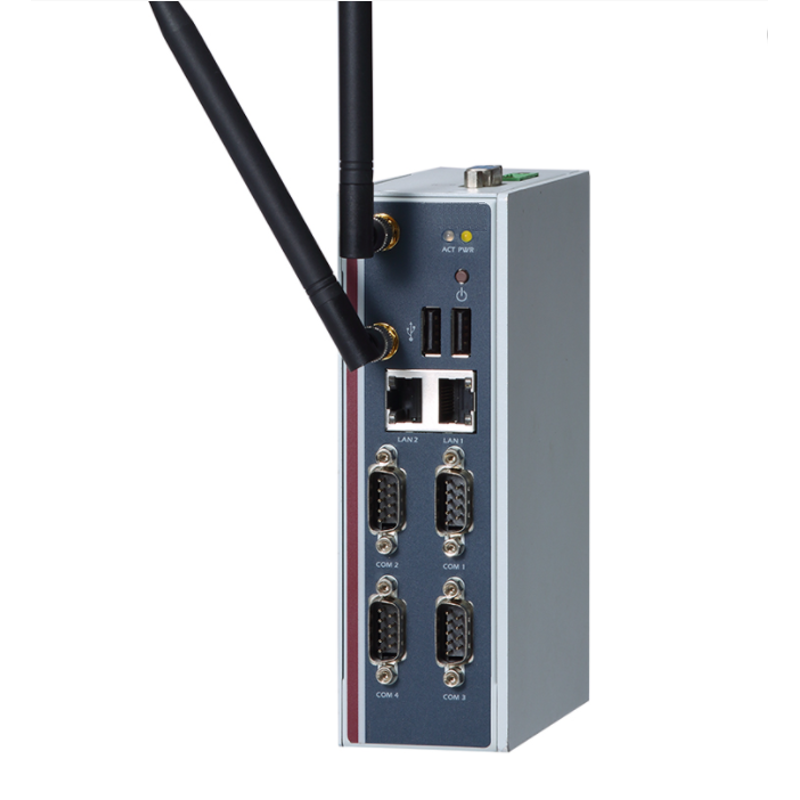

Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q4 2028) with Intel ATOM SoC, Intel Atom E3815 (1.46GHz Single Core) TDP 5W, 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 4GB RAM, 2x USB 2.0, Dimensions of Enclosure: 4.33"L x 1.88"W x 6.10"H, Power Input Rating: 12-24 VDC, 1.21-0.66A

Completely Fanless

Type:

  • Microbox PC
  • Dimension: 4.33" x 1.88" x 6.10"

Motherboard:

  • Featuring Intel ATOM SoC and Intel Atom E3815 (1.46GHz Single Core) TDP 5W
  • Long Production Cycle Motherboard (Through Q4 2028)
  • LAN: 2xGB (10/100/1000)
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    2x USB 2.0 Ports ( 2 Front, 2 Rear)
    4x COM Port (RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: -20ºC to 70ºC (-4ºF to 158ºF)

Also Included:

  • Memory: 2GB DDR3L 1600MHz SODIMM RAM (Not Recommended - Use with Embedded Operating System Only)
  • Hard Drive: 120GB SSD SATA 6.0Gb/s, 500/320MB/s read/write (or greater)
  • Power Supply: Power Input Rating: 12-24 VDC, 1.21-0.66A
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Embedded
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q4 2028
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Atom E3815 (1.46GHz Single Core) TDP 5W
  • Chipset
  • Chipset: Intel ATOM SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 4GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i211AT
  • Second LAN Chipset: Intel® i211AT
  • Wireless LAN: Wireless antennas pre-assembled
  • Drive Interface
  • SATA II Ports (3GB): 1
  • Compact Flash: 1
  • mini PCIe
  • mSATA
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full size
  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • Serial 232/422/485 Ports: 4
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: -20ºC to 70ºC (-4ºF to 158ºF )
  • High Humidity: 95%
  • Low Humidity: 10%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry
  • Windows 10 IoT Entry 2019 LTSC
  • Compliance of Component
  • UL
  • CE
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Front Facing I/O
  • Color: Gray & White
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Expansion
  • Internal 2.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Physical
  • Depth: 4.33"
  • Width: 1.88"
  • Height: 6.10"
  • Shipping Box - Depth: 7.70"
  • Shipping Box - Width: 6.50"
  • Shipping Box - Height: 4.30"
  • Shipping Weight: 4lbs

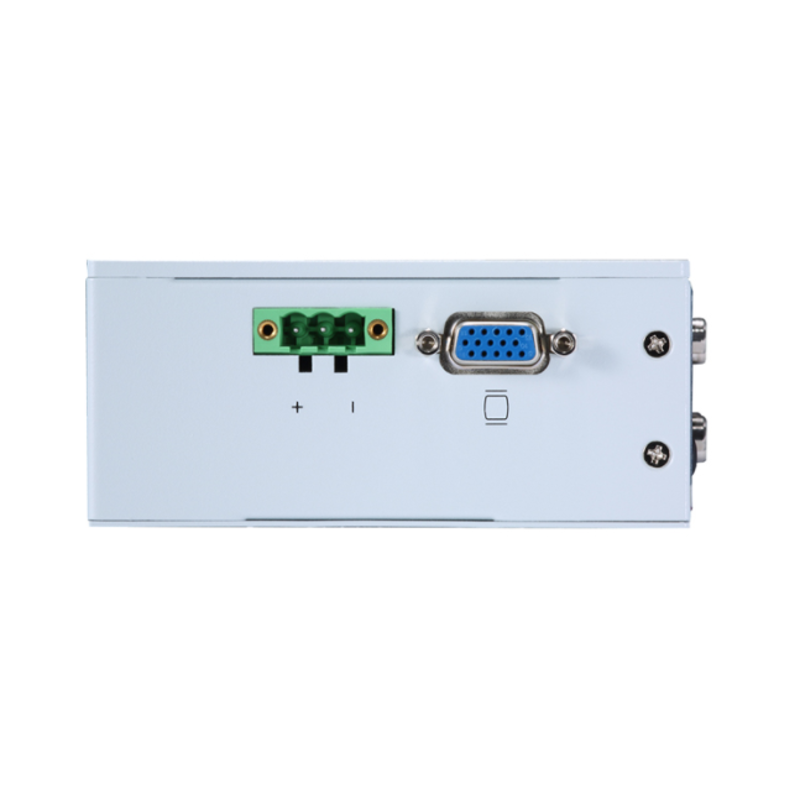

  • Power
  • Built-in Chassis Power Supply: Power Input Rating: 12-24 VDC, 1.21-0.66A
