SL-EB-ICO300-4-83B

Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q1 2031) with Intel Celeron SoC, Intel Celeron N3350 processor (1.1 GHz Dual Core, Burst 2.40GHz) Intel® HD Graphics 500, TDP 6W, 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 8GB RAM, 4x USB 3.0, Dimensions of Enclosure: 4.33"L x 1.88"W x 6.10"H, Power Input Range: 12 - 24 VDC. Power Protection: DC Version, OVP, Reverse protection

Robust Fanless DIN-Rail Embedded System with Intel Atom processor N3350, 1.1GHz burst to 1.8GHz, 4 x Isolated COM RS232/RS422/RS485), 2 x GbE, 4 x USB, VGA,  Power Input Rating: 12-24 VDC,1.21-0.66A (60W 12VDC AC/DC adapter included); Physical: Dimensi...

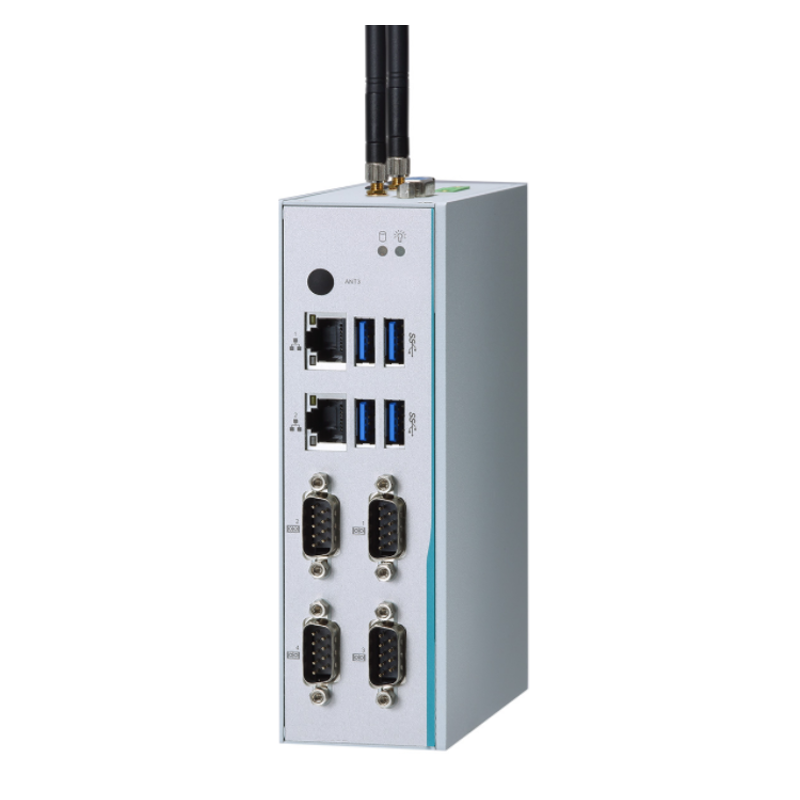

  • Front
  • VGA Out
  • Antenna
Completely Fanless

Type:

  • Microbox PC
  • Dimension: 4.33" x 1.88" x 6.10"

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron N3350 processor (1.1 GHz Dual Core, Burst 2.40GHz) Intel® HD Graphics 500, TDP 6W
  • Long Production Cycle Motherboard (Through Q1 2031)
  • LAN: 2x GB (10/100/1000)
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    4x USB 3.0 Ports ( 4 via internal headers )
    4x COM Port (RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: -20ºC to 70ºC (-4ºF to 158ºF)

Also Included:

  • Memory: 2GB DDR3L 1600MHz SODIMM RAM (Not Recommended - Use with Embedded Operating System Only) - Upgradeable
  • Hard Drive: 128GB SSD (or greater) SATA 6.0Gb/s, 500/270MB/s read/write (or greater) - Upgradeable
  • Power Supply: Power Input Range: 12 - 24 VDC. Power Protection: DC Version, OVP, Reverse protection
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Memory
CD/DVD/OpticalDrive
Hard Drive
Networking
Operating System
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Embedded
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2031
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron N3350 processor (1.1 GHz Dual Core, Burst 2.40GHz) Intel® HD Graphics 500, TDP 6W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i211AT
  • Second LAN Chipset: Intel® i211AT
  • Wireless LAN: Wireless antennas pre-assembled
  • Drive Interface
  • SATA III Ports (6GB): 1
  • mini PCIe
  • mSATA
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full size
  • Second mini PCIe
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full size
  • Rear IO
  • Serial 232/422/485 Ports: 4
  • Digital I/O (8 Bit)
  • Headers
  • USB 3.0 Ports (on Headers): 4
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: -20ºC to 70ºC (-4ºF to 158ºF)
  • High Humidity: 95%
  • Low Humidity: 10%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Ent-Entry
  • Compliance of Component
  • CE
  • FCC
  • Other Features
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Extruded Aluminum and Heavy-duty Steel
  • Material Thickness: 1mm
  • Slide Rails: Optional
  • Expansion
  • Internal 2.5" Bays: 1
  • Front Ports
  • USB 3.0 Ports (Front): 4
  • Physical
  • Depth: 4.33"
  • Width: 1.88"
  • Height: 6.10"
  • Shipping Box - Depth: 7.70"
  • Shipping Box - Width: 6.50"
  • Shipping Box - Height: 4.30"
  • Shipping Weight: 4lbs
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: Power Input Range: 12 - 24 VDC. Power Protection: DC Version, OVP, Reverse protection
