SL-EB-J3355B-S17 This item is no longer available.

Microbox PC - Embedded PC featuring Intel Celeron SoC, Intel Celeron J3355 Processor (2.0GHz Dual Core, Burst 2.5GHz) Intel® HD Graphics 500, TDP 10W, 1x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 16GB RAM, 5x USB 2.0, 5x USB 3.1, Dimensions of Enclosure: 8.27"L x 7.60"W x 2.60"H, 90w output, 12v input DC-DC Power Supply - AC Adapter Included

Microbox PC - Embedded PC featuring Intel Celeron SoC, Intel Celeron J3355 Processor (2.0GHz Dual Core, Burst 2.5GHz) Intel® HD Graphics 500, TDP 10W, 1x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 16GB RAM, 5x USB 2.0, 5x USB 3.1, Dimensions of...
  • Front Angle
  • Front
  • Pencil Perspective
  • Dimensions
  • Included Accessories
  • Internal

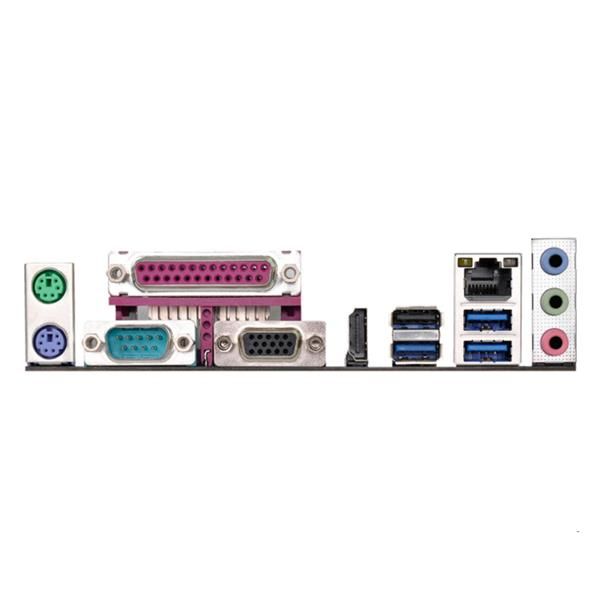

  • IO

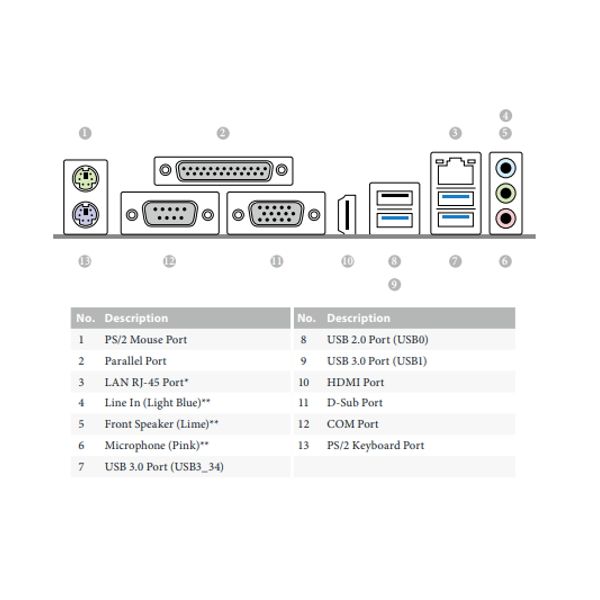

  • I/O Diagram
Completely Fanless, No Windows 7 Support, for Windows 7 see SL-EB-LL1900J-S29

Type:

  • Microbox PC
  • Dimension: 8.27" x 7.60" x 2.60"

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron J3355 Processor (2.0GHz Dual Core, Burst 2.5GHz) Intel® HD Graphics 500, TDP 10W
  • No Available Slots
  • LAN: 1x GB (10/100/1000)
  • Video: VGA + HDMI
  • Audio: 8-Channel HD Audio by Realtek® ALC887
  • Ports:
    5x USB 2.0 Ports ( 2 Front, 1 Rear, 2 via internal headers )
    5x USB 3.1 Ports ( 3 Rear, 2 via internal headers )
    2x COM Ports (1 Rear, 1 on Headers)
    1x Parallel Port (Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Memory: 4GB DDR3 1600MHz SODIMM RAM - Upgradeable
  • Hard Drive: 500GB SATA 6Gb/s 7200 RPM 32MB 2.5" WD Black - Upgradeable
  • Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Technical Specifications
Available Downloads

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J3355 Processor (2.0GHz Dual Core, Burst 2.5GHz) Intel® HD Graphics 500, TDP 10W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: 8-Channel HD Audio by Realtek® ALC887
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: VGA + HDMI
  • VGA Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111GR
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 2
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • mini PCIe
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 1
  • USB 3.1 Type A Ports (on IO): 3
  • Serial (Rear IO): 1
  • Parallel Ports: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.1 Ports (on Headers): 2
  • Serial (via Headers): 1
  • FAN Connectors: 2
  • Audio on Headers
  • Chassis Intrusion
  • TPM Support: Via 2.0 Header
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Ent-Entry
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    1 x PCI Express 2.0 x16 Slot (PCIE1: x2 speed mode Only)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 2
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 1
  • Physical
  • Depth: 8.27"
  • Depth (Inches): 8.27
  • Width: 7.60"
  • Height: 2.60"
  • Shipping Box - Depth: 13"
  • Shipping Box - Width: 9"
  • Shipping Box - Height: 5"
  • Shipping Weight: 8lbs
  • Compliance of Component
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
