Microbox PC - Embedded PC featuring
Intel Celeron SoC, Intel Celeron J4105 Processor (1.5GHz Quad Core, Burst 2.5GHz) TDP 10W, 1x GB (10/100/1000) LAN,
HDD or SSD,
2x Serial,
Up to 8GB RAM,
5x USB 2.0,
5x USB 3.1,
Dimensions of Enclosure: 2.60"L x 12.30"W x 8.27"H, 90w output, 12v input DC-DC Power Supply - AC Adapter Included
[Shortage, Please Contact Sales for Availability.] Completely Fanless, No Windows 7 Support, for Windows 7 see SL-EB-LL1900A-S18-1 or similar
Type:
-
Microbox PC
-
Dimension: 2.60" x 12.30" x 8.27"
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J4105 Processor (1.5GHz Quad Core, Burst 2.5GHz) TDP 10W
- LAN:
1x GB (10/100/1000)
- Video:
VGA + HDMI
- Audio:
8-Channel HD Audio by Realtek® ALC887
- Ports:
5x USB 2.0 Ports (
2 Front, 1 Rear, 2 via internal headers )
5x USB 3.1 Ports (
3 Rear, 2 via internal headers )
2x COM Ports (1 Rear, 1 on Headers)
1x Parallel Port (Rear)
See specifications for more ports
- Operating Temperature:
0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Memory:
4GB DDR4 2400MHz SODIMM RAM - Upgradeable
- Hard Drive:
500GB SATA 6Gb/s 7200 RPM 32MB 2.5" WD Black - Upgradeable
- Power Supply:
90w output, 12v input DC-DC Power Supply - AC Adapter Included - Upgradeable
- Operating System: Not Included - See options below
- Warranty:
One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron J4105 Processor (1.5GHz Quad Core, Burst 2.5GHz) TDP 10W
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: SO DIMM DDR4 2400MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: 8-Channel HD Audio by Realtek® ALC887
- On Board Video
- Video Chipset: Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750MHz)
- Video on IO: VGA + HDMI
- VGA Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- Lan Type: GB (10/100/1000)
- LAN Chipset: Realtek RTL8111H
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 2
- mini PCIe

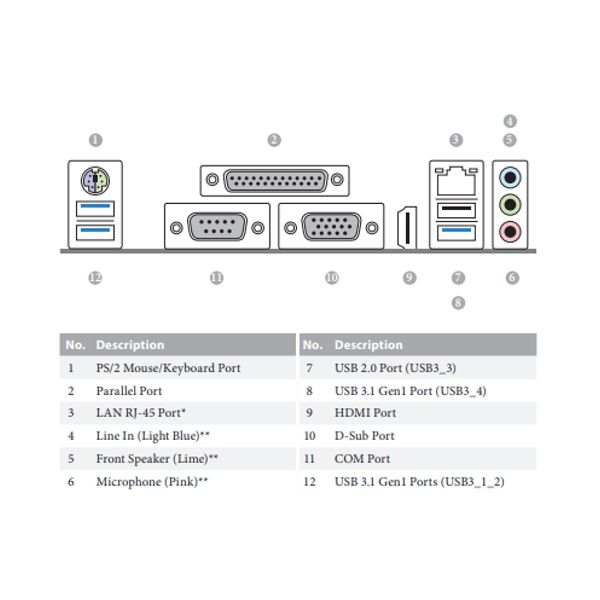

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 1
- USB 3.1 Type A Ports (on IO): 3
- Serial (Rear IO): 1
- Parallel Ports: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.1 Ports (on Headers): 2
- Serial (via Headers): 1
- FAN Connectors: 2
- Audio on Headers
- Environmental
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Ent-Entry
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Other Features:
Microsoft® Windows® 10 64-bit*
*Supports UEFI mode only
*USB3_1_2 is shared with USB2_3.
1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Micro PC
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 7.5""
- Internal 2.5" Bays: 2
- Serial Port Punchouts: 3
- Parallel Port Punchouts: 1
- Antennae Punchout: 2
- Front Ports
- USB 2.0 Port (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Physical
- Depth: 2.60"
- Depth (Inches): 2.6
- Width: 12.30"
- Height: 8.27"
- Shipping Box - Depth: 16"
- Shipping Box - Width: 16"
- Shipping Box - Height: 8"
- Shipping Weight: 11lbs
- Compliance of Component
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
- Related Products Default Upgrade Groups
- Built-in Chassis Power Supply: AC/DC Power Adapter Included
