SL-EB-J4105B-S19 This item is no longer available.

A newer version of this item is available: SL-EB-J5040-S19

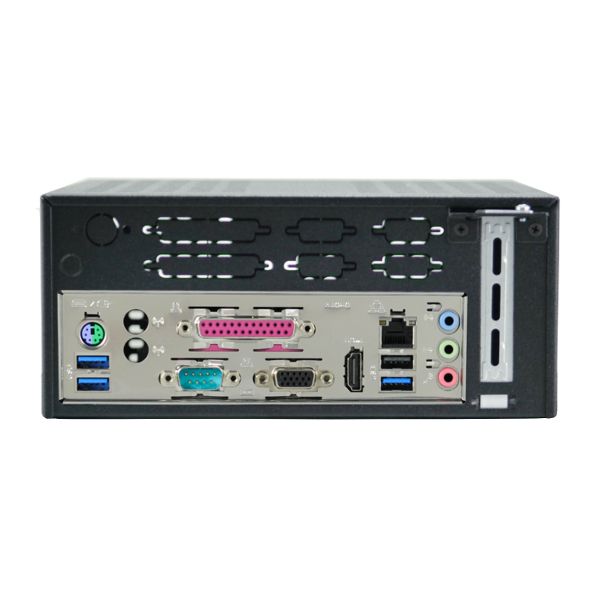

Microbox PC - Embedded PC featuringIntel Celeron SoC, Intel Celeron J4105 Processor (1.5GHz Quad Core, Burst 2.5GHz) TDP 10W, 1x GB (10/100/1000) LAN, 2x Serial, Up to 8GB RAM, 5x USB 2.0 Ports ( 2 Front, 1 Rear, 2 Internal Headers ), 5x USB 3.2 Gen 1 Ports ( 3 Rear, 2 Internal Headers ), 1x Expansion Slots, Dimensions of Enclosure: 8.30"L x 8"W x 3.50"H, Power Supply Power Adapter Included.


No Windows 7 Support, for Windows 7 see SL-EB-LL1900A-S19-1 or similar

Type:

  • Microbox PC
  • Dimension: 8.30" x 8" x 3.50"

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron J4105 Processor (1.5GHz Quad Core, Burst 2.5GHz) TDP 10W
  • Low Profile Slots:
    1 - PCIe x16
  • LAN: 1x Ports (GB (10/100/1000))
  • Video: VGA + HDMI
  • Audio: 8-Channel HD Audio by Realtek® ALC887
  • Ports:
    5x USB 2.0 Ports ( 2 Front, 1 Rear, 2 Internal Headers )
    5x USB 3.2 Gen 1 Ports ( 3 Rear, 2 Internal Headers )
    2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
    1x Parallel Port (Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Memory: 8GB DDR4 2666MHz SODIMM RAM
  • Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
  • Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J4105 Processor (1.5GHz Quad Core, Burst 2.5GHz) TDP 10W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR4 2400MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: 8-Channel HD Audio by Realtek® ALC887
  • On Board Video
  • Video Chipset: Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750MHz)
  • Video on IO: VGA + HDMI
  • VGA Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek RTL8111H
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 2
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1

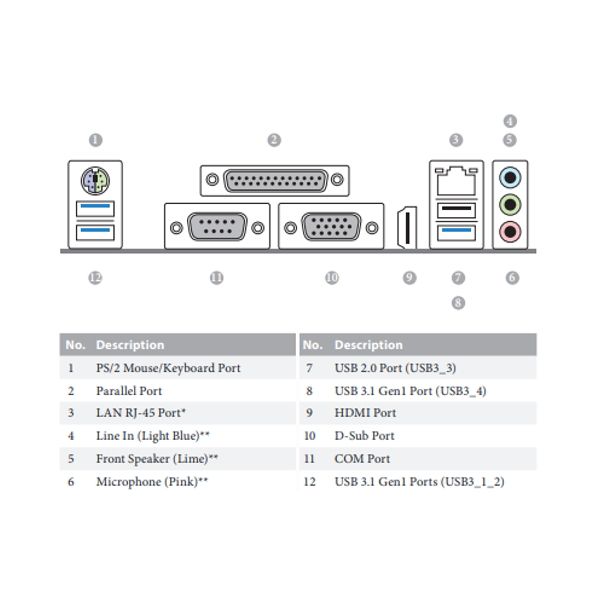

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 1
  • USB 3.2 Gen 1 Type A Ports (on IO): 3
  • Serial (Rear IO): 1
  • Parallel Ports: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • Serial (via Headers): 1
  • FAN Connectors: 2
  • Audio on Headers
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry
  • Windows 10 IoT Entry 2019 LTSC
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    Microsoft® Windows® 10 64-bit*
    *Supports UEFI mode only

    *USB3_1_2 is shared with USB2_3.

     1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Expansion
  • Low Profile Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 2
  • Parallel Port Punchouts: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 8.30"
  • Depth (Inches): 8.27
  • Width: 8"
  • Height: 3.50"
  • Shipping Box - Depth: 150mm
  • Shipping Box - Width: 380mm
  • Shipping Box - Height: 27mm
  • Shipping Weight: 13lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: Power Adapter Included
