SL-EB-LLH110A-S17-NF

Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q3 2022) with Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 32GB RAM, 4x USB 2.0, 4x USB 3.0, Dimensions of Enclosure: 8.27"L x 7.60"W x 2.60"H, 160w output, 12v input DC-DC Power Supply - AC Adapter Included

Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q3 2022) with Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 32GB RAM, 4x USB 2.0, 4x USB 3.0, Dimensions...

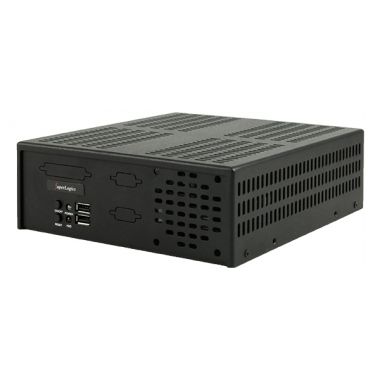

  • Front Angle
  • Front
  • Pencil Perspective
  • SL-EB-LLH110A-S17-NF
  • TOP
  • Included Accessories
  • Dimensions
Completely Fanless

Type:

  • Microbox PC
  • Dimension: 8.27" x 7.60" x 2.60"

Motherboard:

  • Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
  • Long Production Cycle Motherboard (Through Q3 2022)
  • No Available Slots
  • LAN: 2x GB (10/100/1000)
  • Video: VGA + DisplayPort + HDMI
  • Audio: Intel® HD Audio
  • Ports:
    4x USB 2.0 Ports ( 2 Front 2 via internal headers )
    4x USB 3.0 Ports ( 4 Rear )
    4x COM Ports (1 Rear, 2 on Headers, 1 RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: i3-6100T - 3.2GHz Intel Dual Core CPU - 3MB Cache, HD Graphics 530 (35W) - Upgradeable
  • Memory: 4GB DDR4 2400MHz SODIMM RAM - Upgradeable
  • Hard Drive: 64GB SSD mSATA 6Gb/s - TS MSA370 - Upgradeable
  • Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Hard Drive
Cable
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q3 2022
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H110 Chipset
  • Memory
  • Memory Type: SO DIMM DDR4 2133MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: Intel® HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DisplayPort + HDMI
  • VGA Port Out: 1
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SAS 6G Ports: 4
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • mini PCIe
  • mSATA
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full/half size
  • Rear IO
  • USB 3.0 Ports (on IO): 4
  • Serial (Rear IO): 1
  • Serial 232/422/485 Ports: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • Serial (via Headers): 2
  • LVDS
  • TPM Support: Via 2.0 Header
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (32 Bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (32 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Ent-Value
  • Windows 10 IoT Ent
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    1 x PCIe x16 slot

    1 (half/full size, supports PCIe x1 and USB device)

    1 (full size, shared SATA and USB device)

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 2
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 1
  • Physical
  • Depth: 8.27"
  • Depth (Inches): 8.27
  • Width: 7.60"
  • Height: 2.60"
  • Shipping Box - Depth: 13"
  • Shipping Box - Width: 9"
  • Shipping Box - Height: 5"
  • Shipping Weight: 8lbs
  • Compliance of Component
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
