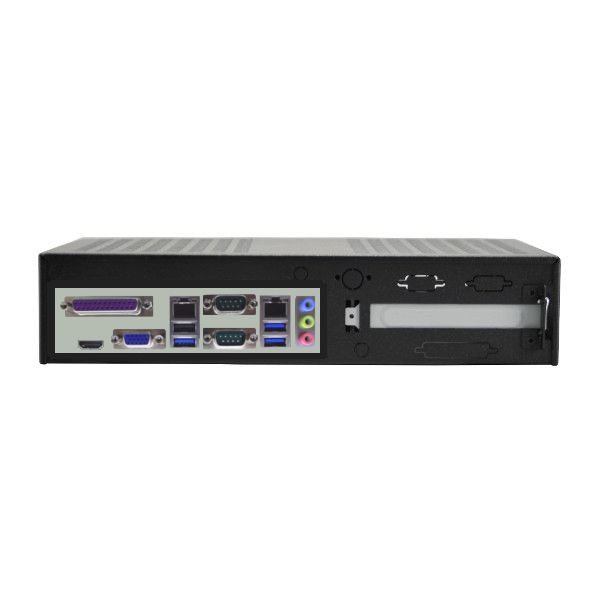

SL-EB-N3160J-S18

Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q1 2031) with Intel Celeron SoC, Intel Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support, 2x GB (10/100/1000) LAN, 6x Serial, Up to 8GB RAM, 4x USB 2.0 Ports ( 2 Front, 1 Rear, 1 Internal Headers ), 3x USB 3.2 Gen 1 Ports ( 3 Rear ), Dimensions of Enclosure: 2.60"L x 12.30"W x 8.27"H, Power Supply AC/DC Power Adapter Included.


Completely Fanless, TPM Support: 2.0 Module Included

Type:

  • Microbox PC
  • Dimension: 2.60" x 12.30" x 8.27"

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
  • Long Production Cycle Motherboard (Through Q1 2031)
  • LAN: 2x Ports (GB (10/100/1000))
  • Video: VGA + HDMI
  • Audio: Realtek® ALC662 HD Audio
  • Ports:
    4x USB 2.0 Ports ( 2 Front, 1 Rear, 1 Internal Headers )
    3x USB 3.2 Gen 1 Ports ( 3 Rear )
    6x COM Ports (1 RS232 Rear, 4 RS232 Internal Headers, 1 RS232/422/485 Rear)
    1x Parallel Port (Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
  • Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2031
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Realtek® ALC662 HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: VGA + HDMI
  • VGA Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek RTL8111H
  • Second LAN Chipset: Realtek® RTL8111H
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 1
  • Mini PCIe
  • mini PCIe
  • USB and PCIe signals (Internal)
  • half and/or full size mini PCIe card: full size
  • SIM Card Slot On Motherboard: SIM
  • M.2 Slot Specs
  • M.2 Slot #1 Specs
  • PCIe Signal
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • Rear IO
  • USB 2.0 Ports (on IO): 1
  • USB 3.2 Gen 1 Type A Ports (on IO): 3
  • Serial (Rear IO): 1
  • Serial 232/422/485 Ports: 1
  • Parallel Ports: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 3
  • Serial (via Headers): 4
  • FAN Connectors: 2
  • Audio on Headers
  • LVDS
  • PS/2 Combo (Mouse/Keyboard) on Headers
  • TPM Support: 2.0 Module Included
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit): Partly
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (32 Bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (32 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • SL-Windows 11PRO to 10PRO 32bit
  • SL-Windows 11PRO to 10PRO 64bit
  • Windows 10 IoT Entry 32-bit
  • Windows 10 IoT Entry
  • Windows 10 IoT Entry 32-bit 2019 LTSC
  • Windows 10 IoT Entry 2019 LTSC
  • Windows 10 IoT 2021 LTSC Entry
  • Windows Server 2012
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 2.60"
  • Depth (Inches): 2.6
  • Width: 12.30"
  • Height: 8.27"
  • Shipping Box - Depth: 16"
  • Shipping Box - Width: 16"
  • Shipping Box - Height: 8"
  • Shipping Weight: 11lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
