SL-EB-PD-AH110I-S18

A newer version of this item is available: SL-EB-AH310I-S18

Microbox PC - Embedded PC featuring Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, HDD or SSD, Up to 32GB RAM, 7x USB 2.0, 4x USB 3.0, Dimensions of Enclosure: 2.60"L x 12.30"W x 8.27"H, 90w output, 12v input DC-DC Power Supply - AC Adapter Included

Microbox PC - Embedded PC featuring Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, HDD or SSD, Up to 32GB RAM, 7x USB 2.0, 4x USB 3.0, Dimensions of Enclosure: 2.60
  • Angle
  • Front
  • Pencil Perspective
  • Dimensions
  • TOP
  • I/O

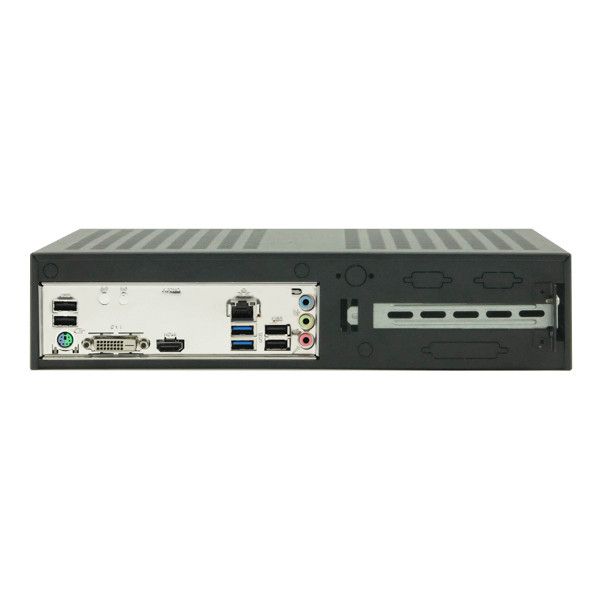

  • Rear IO View

Type:

  • Microbox PC
  • Dimension: 2.60" x 12.30" x 8.27"

Motherboard:

  • Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
  • LAN: 1x GB (10/100/1000)
  • RAID: 0,1
  • Video: DVI-D + HDMI
  • Audio: 7.1+2 Channel HD Audio by Realtek ALC892
  • Ports:
    7x USB 2.0 Ports ( 2 Front, 4 Rear, 1 via internal headers )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) - Upgradeable
  • Memory: 4GB DDR4 2400MHz RAM - Upgradeable
  • Hard Drive: 500GB SATA 6Gb/s 7200 RPM 32MB 2.5" WD Black - Upgradeable
  • Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Riser Card
Plug-In Boards
Add-In Graphic Card
Networking
Power Supply
Internal Uninterruptible Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H110 Chipset
  • Memory
  • Memory Type: DDR4 2133Mhz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: 7.1+2 Channel HD Audio by Realtek ALC892
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DVI-D + HDMI
  • DVI-D Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 4
  • mini PCIe
  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 3
  • USB 3.0 Ports (on Headers): 2
  • FAN Connectors: 2
  • TPM Support: Via 2.0 Header
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent-Value
  • Windows 10 IoT Ent
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • FCC
  • Other Features
  • Other Features:

    1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 2.60"
  • Depth (Inches): 2.6
  • Width: 12.30"
  • Height: 8.27"
  • Shipping Box - Depth: 16"
  • Shipping Box - Width: 16"
  • Shipping Box - Height: 8"
  • Shipping Weight: 11lbs
  • Compliance of Component
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 60W AC/DC Power Adapter Included
