SL-EB-PD-Q170SSV-S18

Name: SL-EB-PD-Q170SSV-S18
SKU: SL-EB-PD-Q170SSV-S18

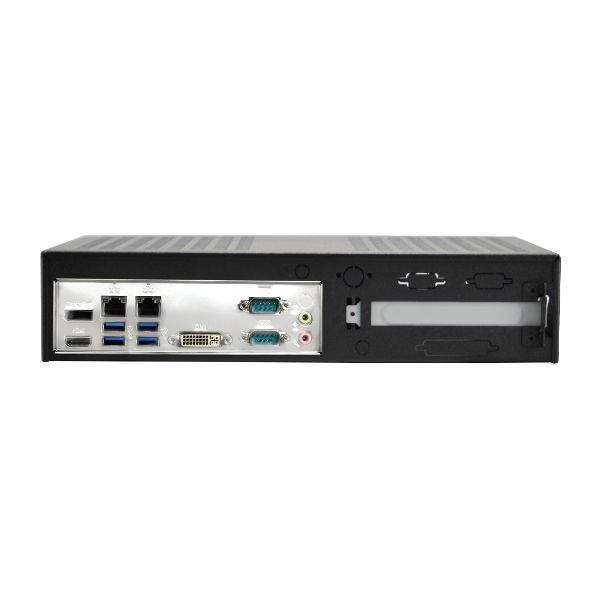

Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q4 2025) with Intel Q170 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x 1GbE + 1GbE LAN, 2x Serial, Up to 32GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers ), Dimensions of Enclosure: 2.60"L x 12.30"W x 8.27"H, Power Supply AC/DC Power Adapter Included.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Microbox PC
Dimension: 2.60" x 12.30" x 8.27"

Motherboard:

Featuring Intel Q170 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
Long Production Cycle Motherboard (Through Q4 2025)
Full Height Slots:
LAN: 2x Ports (1GbE + 1GbE)
RAID: 0,1
Video: DVI-I + HDMI + DisplayPort
Audio: 7.1 Channel HD Audio by Realtek® ALC888S
Ports:
4x USB 2.0 Ports ( 2 Front, 2 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers )
2x COM Ports (RS232 Rear)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
Memory: 8GB DDR4 2666MHz SODIMM RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MiniITX
Long Production Cycle
Long Life: YES
EOL Date: Q4 2025
Supported CPU
Number of Processors: 1
Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
Chipset
Chipset: Intel Q170 Chipset
Memory
Memory Type: DDR4 2133MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 32GB
On Board Audio
Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
On Board Video
Video Chipset: Intel HD Graphics
Video on IO: DVI-I + HDMI + DisplayPort
DVI-I Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE
LAN Chipset: Intel® i219V
Second LAN Chipset: Intel® i210AT
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 5
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Mini PCIe
mini PCIe
mSATA
half and/or full size mini PCIe card: full/half size
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
M.2 SATA SSD
PCIe Signal
2242 - 22 mm x 42 mm.
2280 - 22 mm x 80 mm.
Rear IO
USB 3.2 Gen 1 Type A Ports (on IO): 4
Serial (Rear IO): 2
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
USB 2.0 Ports (Type A): 1
FAN Connectors: 4
Audio on Headers
Chassis Intrusion
TPM Support: Via 2.0 Header
Management Features
AMT
vPRO
NMI
Watch Dog
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 85%
Low Humidity: 10%
Operating System Support
Windows 7 Ultimate (64-bit)
Windows 7 Pro (32-bit)
Windows 7 Pro (64-bit)
Windows 7 Pro (FES) 32-Bit
Windows 7 Pro (FES) 64-Bit
SL-Windows 10PRO to 7PRO 32-bit
SL-Windows 10PRO to 7PRO 64-bit
Windows Embedded 7 (32-Bit)
Windows Embedded 7 (64-Bit)
Windows 8.1 (32-bit)
Windows 8.1 (64-bit)
Windows 8.1 Pro (32-bit)
Windows 8.1 Pro (64-bit)
Windows Embedded 8 (32-bit)
Windows Embedded 8 (64-bit)
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value
Windows 10 IoT Ent
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows Server 2012
RED HAT Enterprise LINUX SERVER STANDARD
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
UL
CE
RoHS
FCC
Other Features
Other Features:
- 1 PCI-E 3.0 x16
- Mini-PCIe with mSATA support,
- M.2 PCI-E 3.0 x4 with SATA support, M Key
- M.2 Form Factor: 2242, 2280
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: Micro PC
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: Mini ITX
Slide Rails: Optional
Expansion
Full Height Slots: 1
Max Card Depth: 7.5""
Internal 2.5" Bays: 2
Serial Port Punchouts: 3
Parallel Port Punchouts: 1
Antennae Punchout: 2
Front Ports
USB 2.0 Ports (Front): 2
Cooling System
Maximum Fan Count: 2
Physical
Depth: 2.60"
Depth (Inches): 2.6
Width: 12.30"
Height: 8.27"
Shipping Box - Depth: 16"
Shipping Box - Width: 16"
Shipping Box - Height: 8"
Shipping Weight: 11lbs
Other Features
Chassis Warranty: 1 Year
Power
Built-in Chassis Power Supply: AC/DC Power Adapter Included
