SL-MOBILE-G5

Rugged Mobile Handheld Smart Device with Quad-Core Processor

Rugged Mobile Handheld Smart Device with Quad-Core Processor

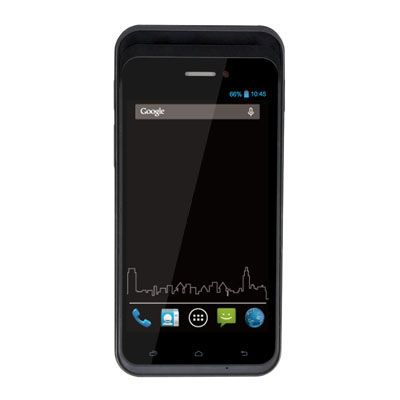

  • Front

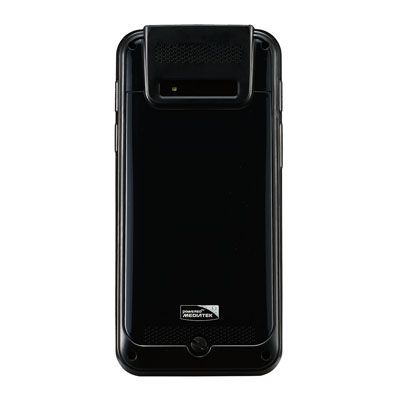

  • Back

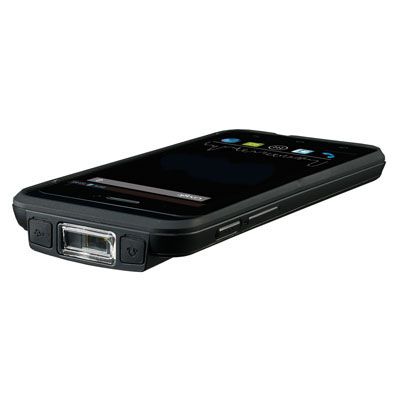

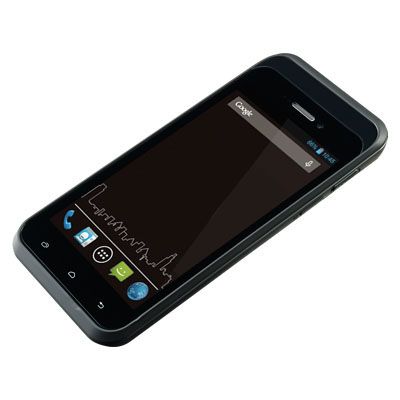

  • Side Angle
  • Side Flat

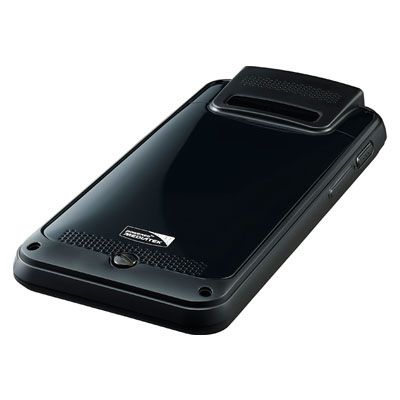

  • Rear Flat

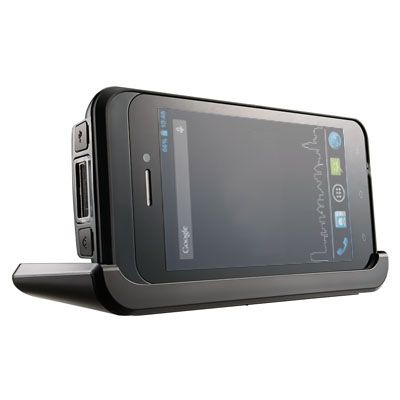

  • Horizontal Stand

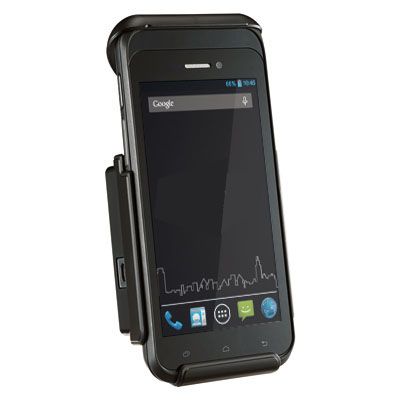

  • Vertical Stand
  • Fully rugged for warehousing / transportation / medical / mPOS applications
  • MIL-STD-810G & IP-65 certified, 1.5m (5ft.) drop resistance
  • 5.5” TFT color LCD 1280 x 720 HD resolution
  • Projected capacitive multi-touch panel with Corning® Gorilla® Glass 3 compliant
  • High mobility with multiple connectivities including WLAN, Bluetooth and WWAN
  • Built-in 1D barcode reader or 2D barcode imager
  • Customer replaceable battery with optimized battery life up to 8 hours
  • Wireless charge supported
  • G-sensor, gyroscope, light sensor, E-compass, GPS navigation & barometer
  • System access control via RFID & NFC reader
Related Products
Technical Specifications

Durability Features

  • MIL-STD-810G & IP-65 certified
  • 1.5m (5ft.) drop-resistance
  • Raised bezel for LCD impact protection
  • I/O ports with hinged rubber covers

System

  • CPU: MTK MT6589 Quad-core Cortex™A7 1GHz CPU PowerVR™ Series5XT GPU
  • OS: Android™ v4.2.2
  • Memory: 1GB
  • Storage: 8GB
  • Audio :
    • Integrated microphone
    • Integrated speaker
    • 1 x 3.5mm stereo headphone jack

Peripherals and Devices

  • Camera
    • Front: 2.0 MP camera
    • Rear: 12.0 MP AF camera with LED
  • Sensor
    • Accelerometer (G-sensor)
    • 3-axis digital gyroscope
    • Barometer
  • Light Sensor: Ambient light sensor
  • NFC: ISO/IEC 21481 Type A, Type B, Felica
  • WLAN: Integrated IEEE 802.11 b/g/n
  • Bluetooth: Integrated Bluetooth 4.0 + EDR class 2, with HID input, A2DP, DUN, HFP, SPP & PBAP supported
  • WWAN: WCDMA UMTS 850/1900/2100
  • Navigation: GPS, AGPS & digital compass
  • Barcode Scanner: 1D or 1D/2D barcode scanner, either with physical trigger button

I/O Interface

  • USB Port: 1 x Micro USB 2.0 port
  • SD Slot: 1 x microSD card slot (up to 32G)
  • SIM Socket: 2 x SIM card slots
  • Expansion: microSDHC

LCD Display

  • Size/Type: 5.5” TFT LCD
  • Resolution: 1280 x 720

Touch Screen

  • Type: 5-point Projected Capacitive Touch screen (Corning® Gorilla® Glass 3 compliant)

Power Supply

  • Power System: External AC power adapter
  • Battery Type: Lithium-ion rechargeable battery
    • Customer replaceable (for maintenance)
    • Wirelessly rechargable (only works with ARBOR wireless cradle and docking)
  • Battery Capacity: 3.7V, 3600mAh, 13.32Wh
  • Battery Life: Up to 8 hours battery life with the following operations:
    • Continuous audio playback of 160-Kbps encoded MP3 files
    • Internet browsing by Wi-Fi while:
      • Browsing snapshot versions of 20 separate web pages
      • Using hourly push-email
    • Continuous video playback for 6 hours
  • Adapter Input: AC100~240C, 50~60 Hz
  • DC power output: 5V/2.1A

Mechanical & Environmental

  • Operating Temp: -10°C ~ 50°C (14°F ~ 122°F)
  • Storage Temp: -20°C ~ 60°C (-4°F ~ 140°F)
  • Operating Humidity: 95% (non-condensing)
  • Dimensions (W x H x D): 84.0 x 175.6 x 15.9 mm (3.31” x 6.91” x 0.63”)
  • Weight: 280g (0.62lb) (with battery)
