SL-MOBILE-GT500-V

5" Android™ Handheld Mobile Computer with Quad-core Processor, P-Cap Touch Screen with Gorilla glass, 4800mAh battery, WiFi, Bluetooth, NFC, Front & Rear Camera, WWAN, LTE Support for Verizon..Network, Barcode Scanner (1D/2D)

5

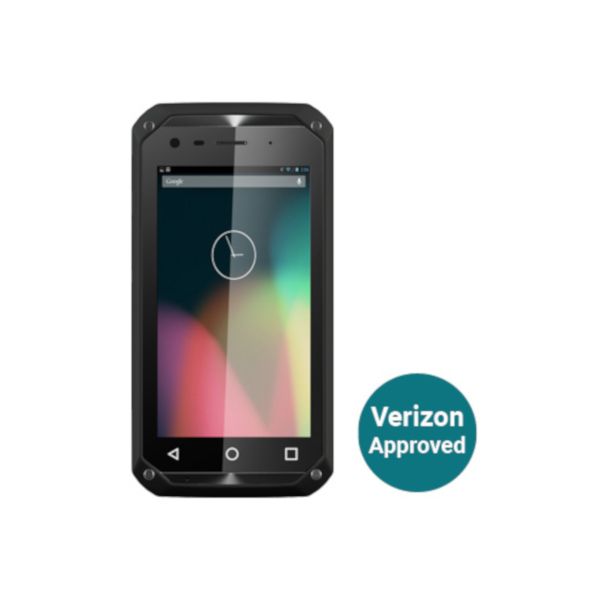

  • SL-MOBILE-GT500-V Front
  • SL-MOBILE-GT500-V Side/Back

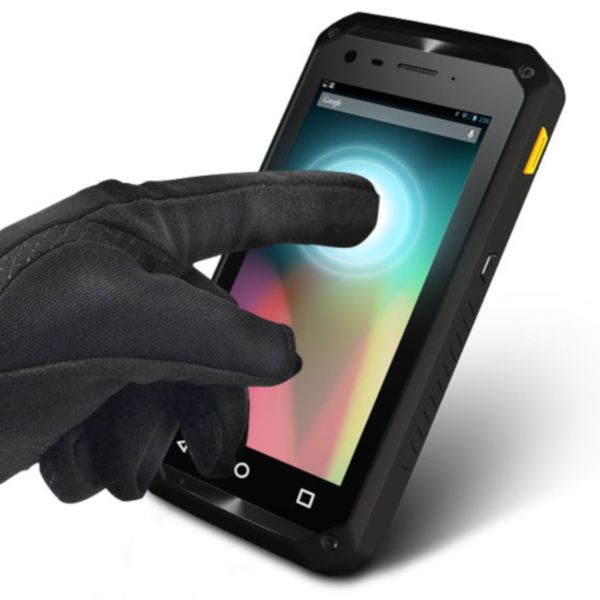

  • SL-MOBILE-GT500-V Glove

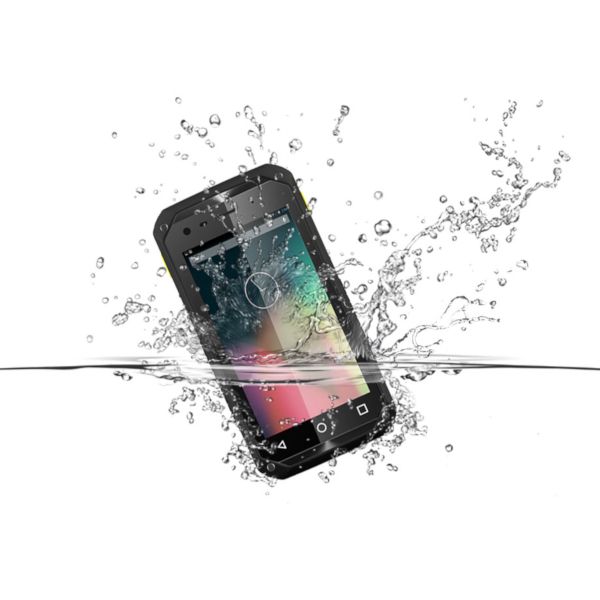

  • SL-MOBILE-GT500-V Water
  • Verizon approved
  • Supports Android 7.0
  • Quad-core ARM Cortex-A53 1.3GHz
  • Multiple Connectivity including WLAN, Bluetooth and NFC
  • 2G/3G/LTE data connectivity support, voice calls not supported
  • IP67 rated water and dust resistance.
  • Drop proof: Up to 1.2m
  • Accelerometer, magnetometer, gyroscope, light sensor, GPS & pressure sensor
  • Built-in 1D/2D barcode scanner (optional)
Related Products
Technical Specifications

System



CPU                           Quad Core ARM Cortex-A53 1.3GHz

OS                              Android 7.0

Memory                     3GB LPDDR2

Flash                         16 GB eMMC



LCD Display

Size/Type                  5“ TFT LCD

Resolution               720(W) x 1280(H)

Brightness               500 nits

Touch Screen          5-point capacitive multi-touch (PCT)



Peripherals and Devices

Camera

  • Front: 5MP
  • Rear: 13MP AF with Flashlight

Sensor

  • Magnetometer (M-Sensor/E-Compass)
  • Accelerometer (G-sensor)
  • Gyroscope
  • Pressure sensor
  • Proximity sensor
  • Ambient light sensor

Barcode Scanner

  • 2D barcode reader with physical trigger buttons

Audio & Vibrator

  • 1 x built-in microphone
  • 1 x built-in speaker (0.5W)
  • 1 x vibrator
  • 1 x 3.5mm stereo headphone/microphone combo jack
  • FM radio

Wireless

WLAN                      Integrated Wi-Fi 802.11a/b/g/n

Bluetooth                Integrated Bluetooth 4.1 (BLE, HS compliant)

WWAN Frequency Bands

  • Europe/Middle East/Africa/South Korea/Thailand:
    • EC25-E
    • LTE FDD: B1/B3/B5/B7/B8/B20
    • LTE TDD: B38/B40/B41
    • WCDMA: B1/B5/B8
    • GSM: B3/B8
  • North America
    • EC25-A:
    • LTE FDD: B2/B4/B12
    • WCDMA: B2/B4/B5
    • EC25-V:
    • LTE FDD: B4/B13
    • Nimbelink Module / LTE: B2/B4/B13
  • Australia/New Zealand/Taiwan/Brazi:
    • EC25-AU:
    • LTE FDD: B1/B2/B3/B4/B5/B7/B8/
    • B28
    • LTE TDD: B40
    • WCDMA: B1/B2/B5/B8
    • GSM: B2/B3/B5/B8
    • EC25-AUT:
    • LTE FDD: B1/B3/B5/B7/B28
    • WCDMA: B1/B5
    • EC25-AUTL:
    • LTE FDD: B3/B7/B28
  • Japan:
    • EC25-J:
    • LTE FDD: B1/B3/B8/B18/B19/B26
    • LTE TDD: B41
    • WCDMA: B1/B6/B8/B19
    • Navigation      GPS
    • NFC   ISO14443A/B, ISO15693, MIFARE, Felica

I/O Interface

USB Port                            1 x micro USB 2.0 port High Speed / OTG Compatible

SD Slot                               1 x microSD card slot (up to 64G)

SIM Socket                         1 x micro-SIM (3FF) socket supporting LTE

Pogo pin                             Extra power pins for docking



Power Supply

Battery Type

  • Lithium-ion rechargeable battery
  • Customer replaceable (for maintenance)

Battery Capacity                Standard 4800mAh

High capacity battery        7800mAh (optional)

Adapter Input                     AC100~240C, 50~60 Hz

Adapter Output                  5V/2A



Mechanical and Environment

Protection                           IP67, up to 1.2m drop resistance.

Operating Temp.                -10°C ~ 50°C (14°F ~ 122°F)

Storage Temp.                   -20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity           5~95% RH

Dimensions (W x H x D)    86 x 165.79 x 25.85mm (3.39” x 6.53 x 1.02”)

Weight                                385g (0.85lb) (with battery)
