SL-MOBILE-GT500

5" Android™ Handheld Mobile Computer with Quad-core Processor, P-Cap Touch Screen with Gorilla glass, 4800mAh battery, WiFi, Bluetooth, NFC, Front & Rear Camera, WWAN, LTE , CDMA2000, with..Barcode Imager (1D/2D), Power Adapter Not Included.

5

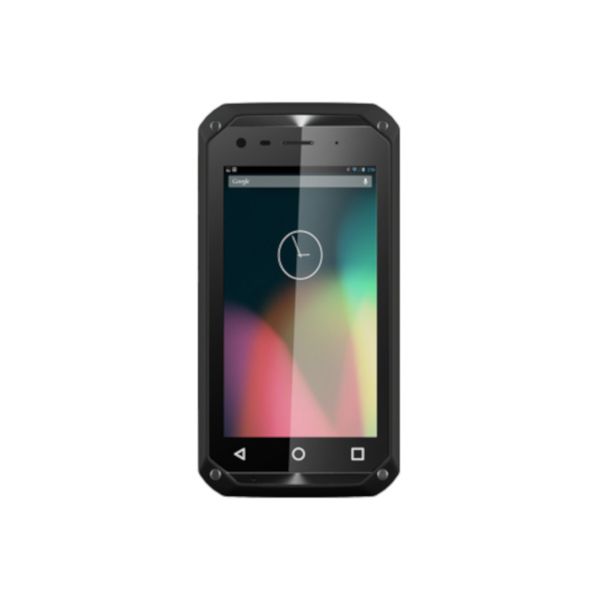

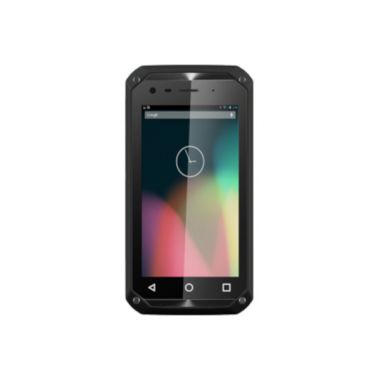

  • SL-MOBILE-GT500 Front
  • SL-MOBILE-GT500 Front and Side

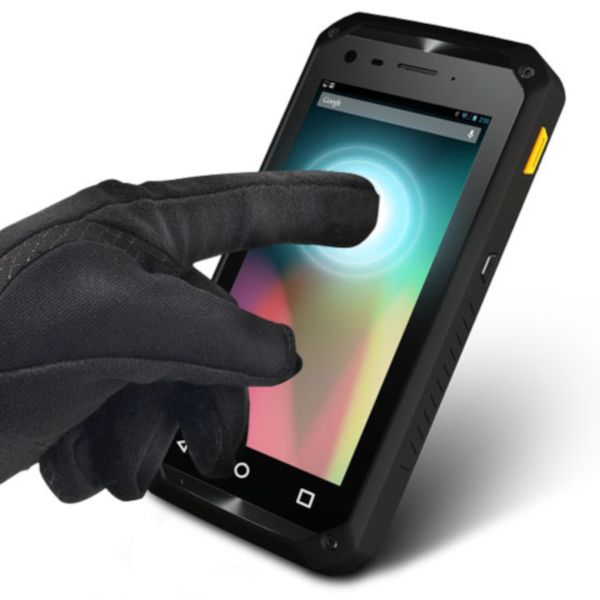

  • SL-MOBILE-GT500 Glove

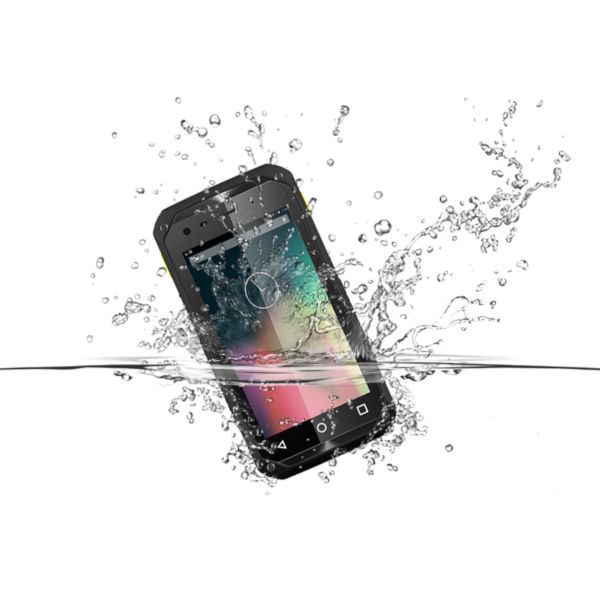

  • SL-MOBILE-GT500 Water
  • Support Android 7.0
  • Quad-core ARM Cortex-A53 1.3GHz
  • Multiple Connectivity including WLAN, WWAN, Bluetooth, NFC and 2G/3G/LTE
  • WorldMode modem capability (Support FDD/TDD-LTE, WCDMA, CDMA2000 1xEV-DO and GSM/GPRS/EDGE)
  • IP67 rated water and dust resistance
  • Drop proof: Up to 1.5m
  • Accelerometer, Magnetometer, Gyroscope, Light sensor, GPS & Barometer
  • Built-in 1D/2D barcode reader
  • Supports Node-Watch for unified mobile devices management
Related Products
Technical Specifications

System

CPU                                      Quad Core ARM Cortex-A53 1.3GHz

OS                                         Android 7.0

Memory                                2GB LPDDR2

Storage                                16 GB eMMC

Audio

  • 1 x built-in microphone
  • 1 x built-in speaker (0.5W)
  • 1 x 3.5mm stereo headphone/microphone combo jack
  • FM radio

Peripherals and Devices

Camera

  • Front: 2.0 megapixel camera
  • Rear: 13.0 megapixel camera with Auto-Focus and Flashlight

Sensor

  • Accelerometer (G-sensor)
  • Gyroscope
  • Barometer
  • Proximity sensor
  • Ambient light sensor

NFC                                     Yes

WLAN                                  Integrated Wi-Fi 802.11a/b/g/n

Bluetooth                            Integrated Bluetooth 4.1 (BLE, HS compliant)

WWAN

  • 2G GSM/GPRS/EDGE (Band 850 / 900 / 1800 / 1900)
  • 3G WCDMA (Band 1,2,5,8)
  • 3G CDMA2000 (BC0/BC1)
  • 4G FDD+TDD (Band1,3,5,7,8,20,38,39,40,41)
  • 4G DRX (Band1,3,5,7,8,20,38,39,40,41)

Navigation

  • GPS/Beidou
  • GPS/Glonass (optional)

Barcode Scanner                1D/2D barcode reader with physical trigger buttons

I/O Interface

USB Port                              1 x Micro USB 2.0 port (OTG compatible)

SD Slot                                 1 x microSD card slot (up to 32G)

SIM Socket

  • 1 x micro-SIM (3FF) socket supporting 2G/3G/LTE
  • 1 x micro-SIM (3FF) socket supporting 2G only

LCD Display

Size/Type                             5“ TFT LCD

Resolution                          720(W) x 1280(H)

Brightness                          500 nits

Touch Screen

Type                                     5-Point Projected Capacitive Multi-Touch screen

Power Supply

Battery Type

  • Lithium-ion rechargeable battery
  • Customer replaceable (for maintenance)

Battery Capacity                4800mAh

Adapter Input                     AC100~240C, 50~60 Hz

Adapter Output                  5V/2A (10W)

Mechanical & Environmental

Ingress Protection             IP67, Up to 1.5m drop resistance.

Operating Temp.                -10°C ~ 50°C (14°F ~ 122°F )

Storage Temp.                   -20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity           5~95% RH

Dimensions (W x H x D)    86 x 165.8 x 25.6mm (3.39” x 6.53 x 1.01”)

Weight                                 < 385g (0.85lb) (with battery)
