SL-DK-N3160J-IM
Desktop PC - Desktop featuring Long Production Cycle Motherboard (Through Q1 2031) withIntel Celeron SoC, Intel Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support, 2x 1GbE + 1GbE LAN, 6x Serial, Up to 8GB RAM, 4x USB 2.0 Ports ( 1 Rear, 3 Internal Headers ), 3x USB 3.2 Gen 1 Ports ( 3 Rear ), Power Supply 150W Internal PSU.
Type:
- Desktop PC
- Dimension: 193mm x 76mm x 225mm
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
- Long Production Cycle Motherboard (Through Q1 2031)
- No Available Slots
- LAN: 2x Ports (1GbE + 1GbE)
- Video: VGA + HDMI
- Audio: Realtek® ALC662 HD Audio
- Ports:
4x USB 2.0 Ports ( 1 Rear, 3 Internal Headers )
3x USB 3.2 Gen 1 Ports ( 3 Rear )
6x COM Ports (1 RS232 Rear, 4 RS232 Internal Headers, 1 RS232/422/485 Rear)
1x Parallel Port (Rear)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply:150W Internal PSU
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

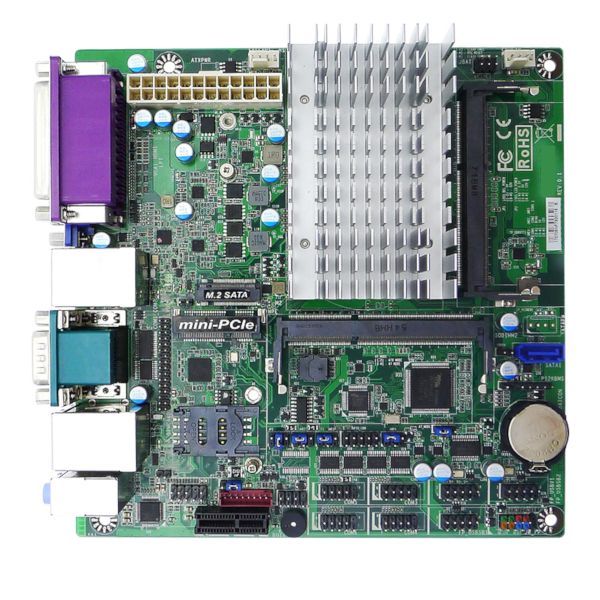

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Fanless
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2031
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: DDR3 1600MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Realtek® ALC662 HD Audio
- On Board Video
- Video Chipset: Supported by CPU - see Embedded CPU Information
- Video on IO: VGA + HDMI
- VGA Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE + 1GbE
- LAN Chipset: Realtek® RTL8111H
- Second LAN Chipset: Realtek RTL8111H
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 1
- Expansion Slots
- PCI Express x1 Slots On Motherboard: 1
- Mini PCIe
- mini PCIe
- USB and PCIe signals (Internal)
- half and/or full size mini PCIe card: full size
- SIM Card Slot On Motherboard: SIM
- M.2 Slot Specs
- M.2 Slot #1 Specs
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.

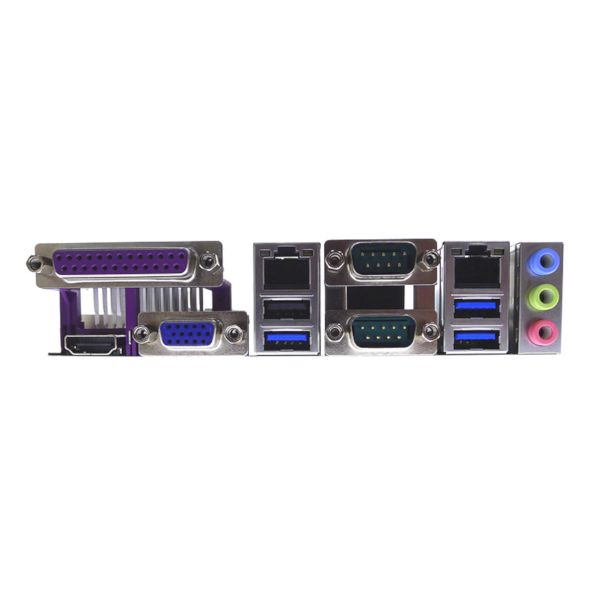

- Rear IO
- USB 2.0 Ports (on IO): 1
- USB 3.2 Gen 1 Type A Ports (on IO): 3
- Serial (Rear IO): 1
- Serial 232/422/485 Ports: 1
- Parallel Ports: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 3
- Serial (via Headers): 4
- FAN Connectors: 2
- Audio on Headers
- LVDS
- PS/2 Combo (Mouse/Keyboard) on Headers
- TPM Support: 2.0 Module Included
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit): Partly
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (32 Bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (32 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 32bit
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Entry 32-bit
- Windows 10 IoT Entry
- Windows 10 IoT Entry 32-bit 2019 LTSC
- Windows 10 IoT Entry 2019 LTSC
- Windows 10 IoT 2021 LTSC Entry
- Windows Server 2012
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Motherboard Warranty: 1 Year

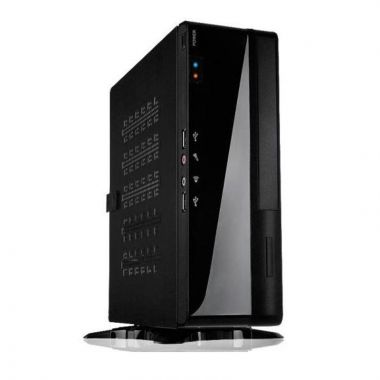

Chassis Specifications:
- General
- Form Factor: Desktop PC
- Color: Black
- Material: Steel & Plastic
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Expansion
- Internal 2.5" Bays: 1
- Front Ports
- USB 3.2 Ports (Front): 2
- Front Audio Ports: 1
- Physical
- Depth: 193mm
- Depth (Inches): 7.6
- Width: 76mm
- Height: 225mm
- Shipping Box - Depth: 120mm
- Shipping Box - Width: 270mm
- Shipping Box - Height: 273mm
- Shipping Weight: 10lbs
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
With a depth of less than 80mm, this system can easily be mounted behind a LCD monitor.
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 150W Internal PSU
