SL-DK-X299TUF-FX This item is no longer available.
Tower PC - Desktop featuring Intel X299 Chipset, Intel® Core™ X-series Processors ( FCLGA2066), 1x GB (10/100/1000) LAN, 1x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 6x Expansion Slots.
Type:
- Tower PC
- Dimension: 560mm x 232mm x 559mm
Motherboard:
- Featuring Intel X299 Chipset and Intel® Core™ X-series Processors ( FCLGA2066) processor
- Full Height Slots:
3 - PCIe x16
1 - PCIe x4
2 - PCIe x1 - LAN: 1x Ports (GB (10/100/1000))
- RAID: 0,1,5,10
- Video: None
- Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
- Ports:
6x USB 2.0 Ports ( 2 Front, 4 Rear )
6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
1x COM Port (RS232 Internal Headers)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: i7-9800X - 3.8GHz (up to 4.4GHz) Intel Octa (8) Core CPU - 16.5MB Cache, No Onboard Graphics (165W)
- Memory: 2 x 4GB DDR4 2666MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 600W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Core™ X-series Processors ( FCLGA2066)
- Chipset
- Chipset: Intel X299 Chipset
- Memory
- Memory Type: DDR4 2400MHz
- Memory Type: Non-ECC
- DIMMS: 8
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
- On Board Video
- Video Chipset: None
- Video on IO: None
- LAN
- LAN Ports: 1
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® i219V
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 3
- PCI Express x4 Slots On Motherboard: 1
- PCI Express x1 Slots On Motherboard: 2
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

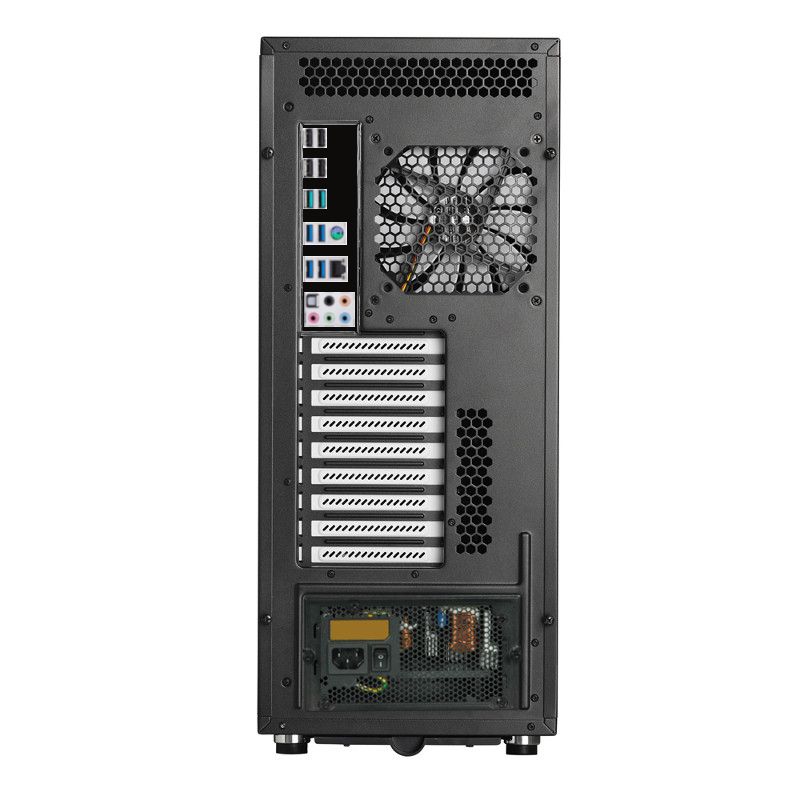

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 4
- USB 3.2 Gen 1 Type A Ports (on IO): 4
- USB 3.2 Gen 2 Type A Ports (on IO): 2
- SPDIF Connector: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- Thunderbolt 3 via Header: 1
- Serial (via Headers): 1
- FAN Connectors: 7
- Audio on Headers
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- RoHS
- Other Features
- Other Features:
44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
28-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16, x16/x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
16-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1s. Please check Chassis Specification section for more information.Note
When using 28-lane & 16-lane CPUs, PCIEX16_3 will be disabled.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Full Tower
- Front Facing I/O
- Front Changeable Air Filter
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: E-ATX
- Expansion
- Full Height Slots: 9
- Max Card Depth: Up to 330mm in length with the top HDD cage installed - With the top cage removed, graphics cards up to 480mm in length may be installed"
- External 5.25" Bays: 4
- Internal 3.5" Bays: 8
- Internal 2.5" Bays: 3
- Front Ports
- USB 2.0 Port (Front): 2
- USB 3.2 Ports (Front): 2
- Front Audio Ports: 1
- Cooling System
- Maximum Fan Count: 7
- Included Fans: 3
- Physical
- Depth: 560mm
- Depth (Inches): 22.1
- Width: 232mm
- Height: 559mm
- Shipping Box - Depth: 655mm
- Shipping Box - Width: 322mm
- Shipping Box - Height: 637mm
- Shipping Weight: 44lbs
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
