SL-DK-J1900M-ID This item is no longer available.
Desktop PC - Desktop featuring Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 16GB RAM, 5x USB 2.0 Ports ( 2 Front, 3 Rear ), 1x USB 3.2 Gen 1 Port( 1 Rear ), 3x Expansion Slots, Power Supply 300 Watt Power Supply.
Backorder
Type:
- Desktop PC
- Dimension: 10.80" x 5.50" x 12.70"
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
- Full Height Slots:
1 - PCIe x16
2 - PCIe x1 - LAN: 1x Ports (1GbE (10/100/1000))
- Video: VGA + HDMI + DVI-D
- Audio: 5.1 channel by Realtek® ALC662
- Ports:
5x USB 2.0 Ports ( 2 Front, 3 Rear )
1x USB 3.2 Gen 1 Port( 1 Rear )
1x COM Port (RS232 Internal Headers)
1x Parallel Port (Headers)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Memory: 4GB DDR3 1333MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 300W SFX-form factor power supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 16GB
- On Board Audio
- Audio Type: 5.1 channel by Realtek® ALC662
- On Board Video
- Video Chipset: Intel® 7th generation (Gen 7) Graphics
- Video on IO: VGA + HDMI + DVI-D
- VGA Port Out: 1
- DVI-D Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® RTL8111G
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 2
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x1 Slots On Motherboard: 2

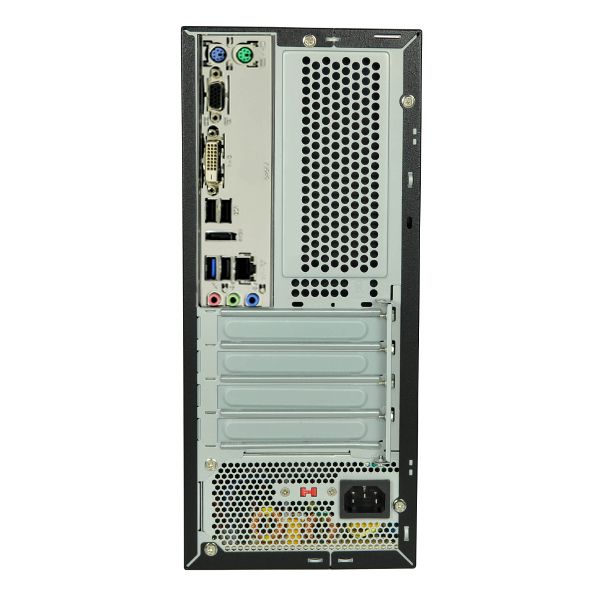

- Rear IO
- PS/2 Mouse on IO
- PS/2 Keyboard on IO
- USB 2.0 Ports (on IO): 3
- USB 3.0 Ports (on IO): 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- Serial (via Headers): 1
- Parallel Ports: 1
- FAN Connectors: 2
- Audio on Headers
- Chassis Intrusion
- TPM Support: Via 1.2 Header
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Entry
- Windows 10 IoT Entry 2019 LTSC
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Other Features:
1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
2 x PCI Express 2.0 x1 Slots* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Mini Tower
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Micro ATX
- Expansion
- Full Height Slots: 4
- Max Card Depth: 9.5 inches"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 1
- External 3.5" Bays: 1
- Front Ports
- USB 2.0 Ports (Front): 4
- Front Audio Ports: 1
- Physical
- Depth: 10.80"
- Depth (Inches): 10.8
- Width: 5.50"
- Height: 12.70"
- Shipping Box - Depth: 23"
- Shipping Box - Width: 23"
- Shipping Box - Height: 15"
- Shipping Weight: 24lbs
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 300 Watt Power Supply
