SL-EB-i3e-5010U This item is no longer available.

A newer version of this item is available: SL-EB-i3-7100UW-TPM-J

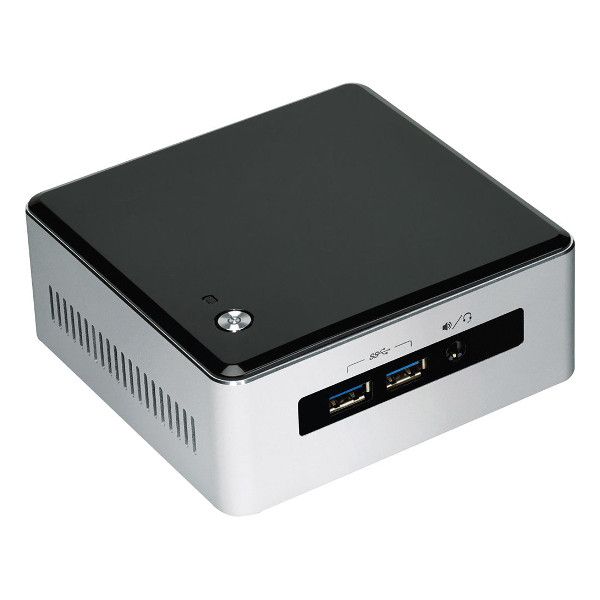

Microbox PC - Embedded PC featuringIntel Core i3 SoC, 5th Gen Core i3-5010U (2.1GHz Dual Core) Intel® HD Graphics 5500, TDP 15W, 1x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 16GB RAM, 2x USB 2.0,2x USB 3.0, Dimensions of Enclosure: 4.40"L x 4.50"W x 1.90"H, 65W Power Adapter

Type:

  • Microbox PC
  • Dimension: 4.40" x 4.50" x 1.90"

Motherboard:

  • Featuring Intel Core i3 SoC and 5th Gen Core i3-5010U (2.1GHz Dual Core) Intel® HD Graphics 5500, TDP 15W
  • LAN: 1xGB (10/100/1000)
  • Video: Dual Mini DisplayPort
  • Audio: Intel® HD Audio
  • Ports:
    2x USB 2.0 Ports ( 2 via internal headers)
    2x USB 3.0 Ports ( 2 Rear)
    1x COM Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Memory: 4GB DDR3 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 64GB SSD M.2 2280 560MB/310MB - Transcend MTS800
  • Power Supply: 65W Power Adapter
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

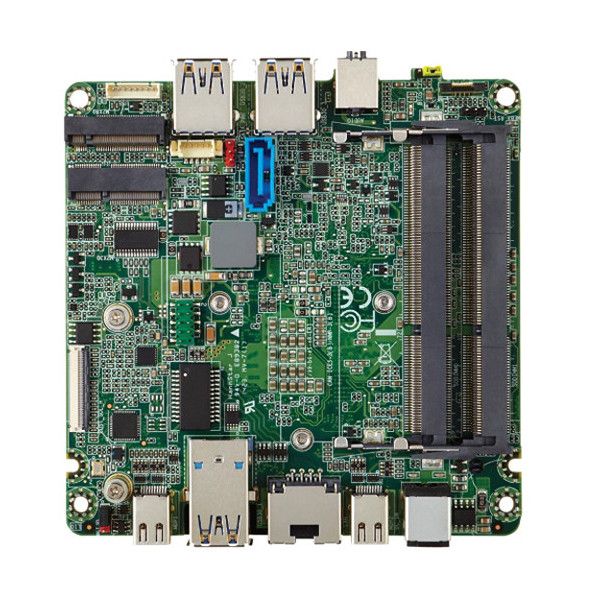

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: NUC (101x101 mm)
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: 5th Gen Core i3-5010U (2.1GHz Dual Core) Intel® HD Graphics 5500, TDP 15W
  • Chipset
  • Chipset: Intel Core i3 SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: Intel® HD Audio
  • On Board Video
  • Video Chipset: Intel HD Graphics 5500
  • Video on IO: Dual Mini DisplayPort
  • mini-DisplayPort Out: 2
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i1218LM
  • Wireless LAN: Wireless antennas pre-assembled
  • Drive Interface
  • SATA III Ports (6GB): 1
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • SATA
  • PCIe
  • 42mm
  • 80mm
  • M.2 (2)
  • 3G/LTE Data Support
  • 30mm

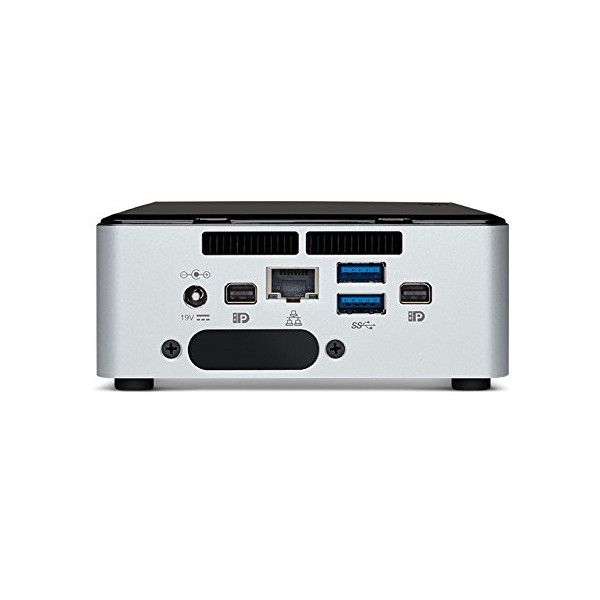

  • Rear IO
  • USB 3.0 Ports (on IO): 2
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • Serial (via Headers): 1
  • FAN Connectors: 1
  • Management Features
  • vPRO
  • TPM Support: 2.0 Module Included
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 8.1 (32-bit): Partly
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit): Partly
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Value 2019 LTSC
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 3 Years

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black & Silver
  • Material: Plastic
  • Material Thickness: 1mm
  • Expansion
  • Internal 2.5" Bays: 1

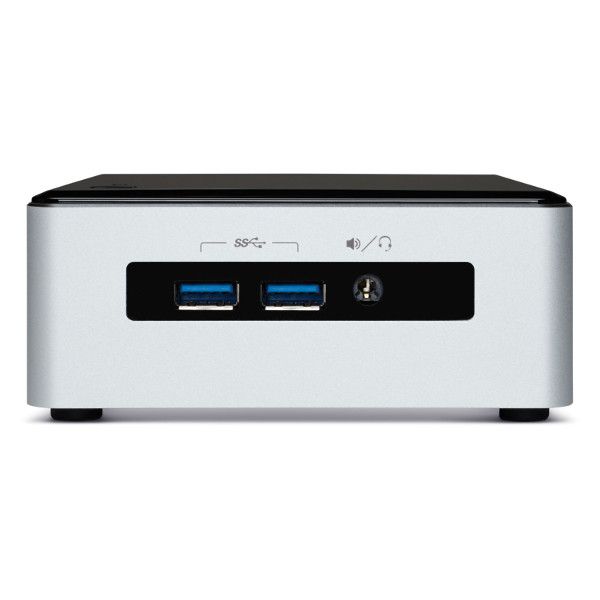

  • Front Ports
  • USB 3.0 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 1
  • Included Fans: 1
  • Physical
  • Depth: 4.40"
  • Depth (Inches): 4.4
  • Width: 4.50"
  • Height: 1.90"
  • Shipping Box - Depth: 4"
  • Shipping Box - Width: 10"
  • Shipping Box - Height: 8"
  • Shipping Weight: 5lbs
  • Power
  • Built-in Chassis Power Supply: 65W Power Adapter
