SL-EB-i5-7260U-QUIET

Tower PC - Desktop featuring 7th Gen Core i5-7260U (2.2GHz Dual Core, Burst 3.4GHz) Intel® Iris™ Plus Graphics 640, TDP 15W, 1x GB (10/100/1000) LAN, HDD or SSD, Up to 32GB RAM, 2x USB 2.0, 4x USB 3.1, 65W AC/DC Power Adapter

Ultra-Quiet Recording Studio/AV PC

Type:

  • Tower PC
  • Dimension: 4.53" x 4.37" x 2.01"

Motherboard:

  • Featuring 7th Gen Core i5-7260U (2.2GHz Dual Core, Burst 3.4GHz) Intel® Iris™ Plus Graphics 640, TDP 15W
  • LAN: 1x GB (10/100/1000)
  • Video: Dual HDMI + DisplayPort
  • Audio: 7.1 Via HDMI 1.4a
  • Ports:
    2x USB 2.0 Ports ( 2 via internal headers )
    4x USB 3.1 Ports ( 4 Rear )
    See specifications for more ports
  • Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)

Also Included:

  • Memory: 4GB DDR4 2400MHz SODIMM RAM
  • Hard Drive: 250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater)
  • Power Supply:65W AC/DC Power Adapter
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: UCFF (4" x 4")
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: 7th Gen Core i5-7260U (2.2GHz Dual Core, Burst 3.4GHz) Intel® Iris™ Plus Graphics 640, TDP 15W
  • Memory
  • Memory Type: DDR4 2400MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: 7.1 Via HDMI 1.4a
  • On Board Video
  • Video Chipset: Intel® Iris™ Plus Graphics 640
  • Video on IO: Dual HDMI + DisplayPort
  • mini-DisplayPort Out: 1
  • HDMI Out: 2
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • Wireless LAN: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
  • Drive Interface
  • SATA III Ports (6GB): 2
  • mini PCIe
  • USB and PCIe signals
  • M.2
  • M.2 NVMe: 1
  • M.2
  • 42mm
  • 80mm

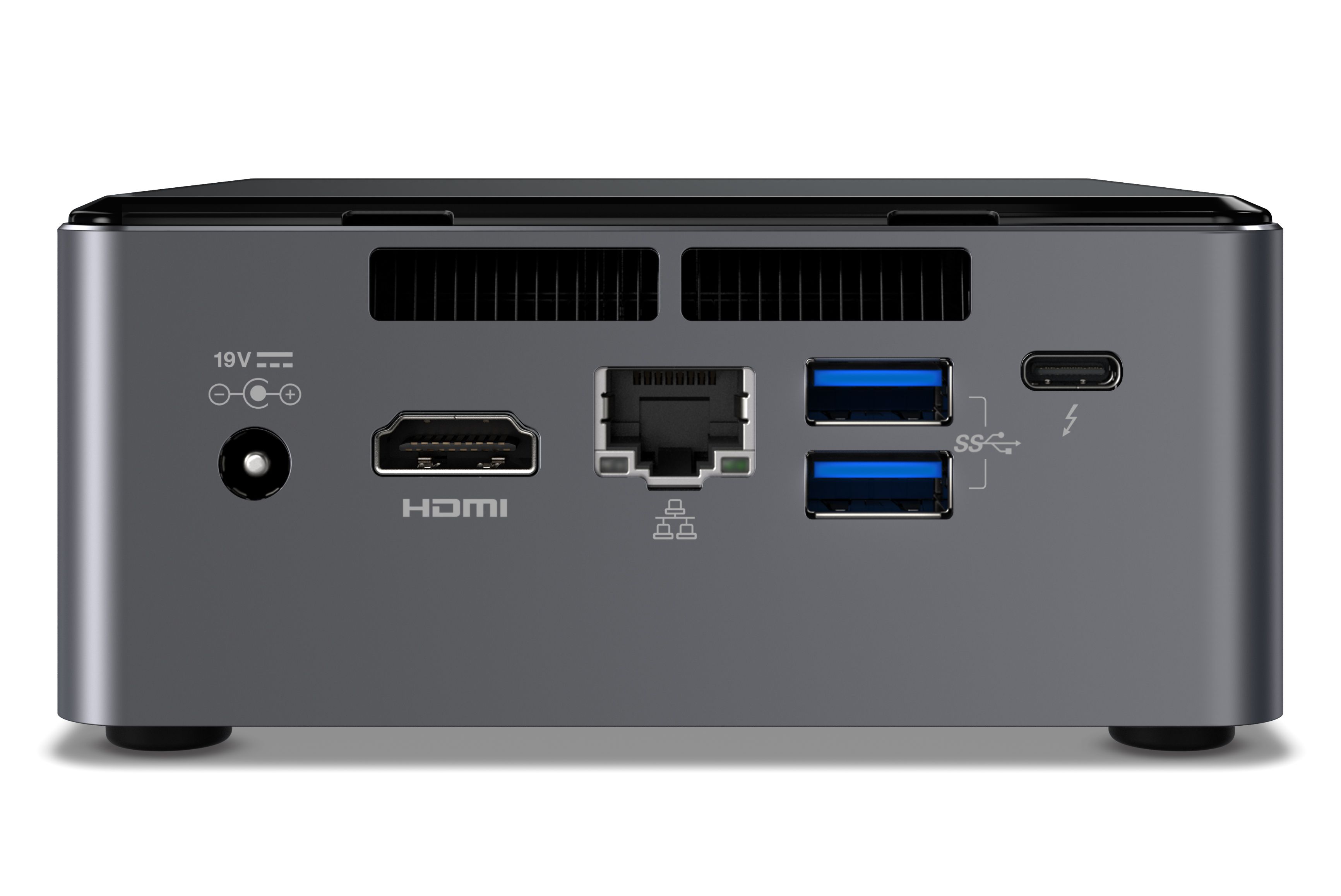

  • Rear IO
  • USB 3.2 Gen 1 Type A Ports (on IO): 4
  • Thunderbolt 3 (on I/O): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • Environmental
  • Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 3 Years

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Steel & Plastic
  • Expansion
  • Internal 2.5" Bays: 1

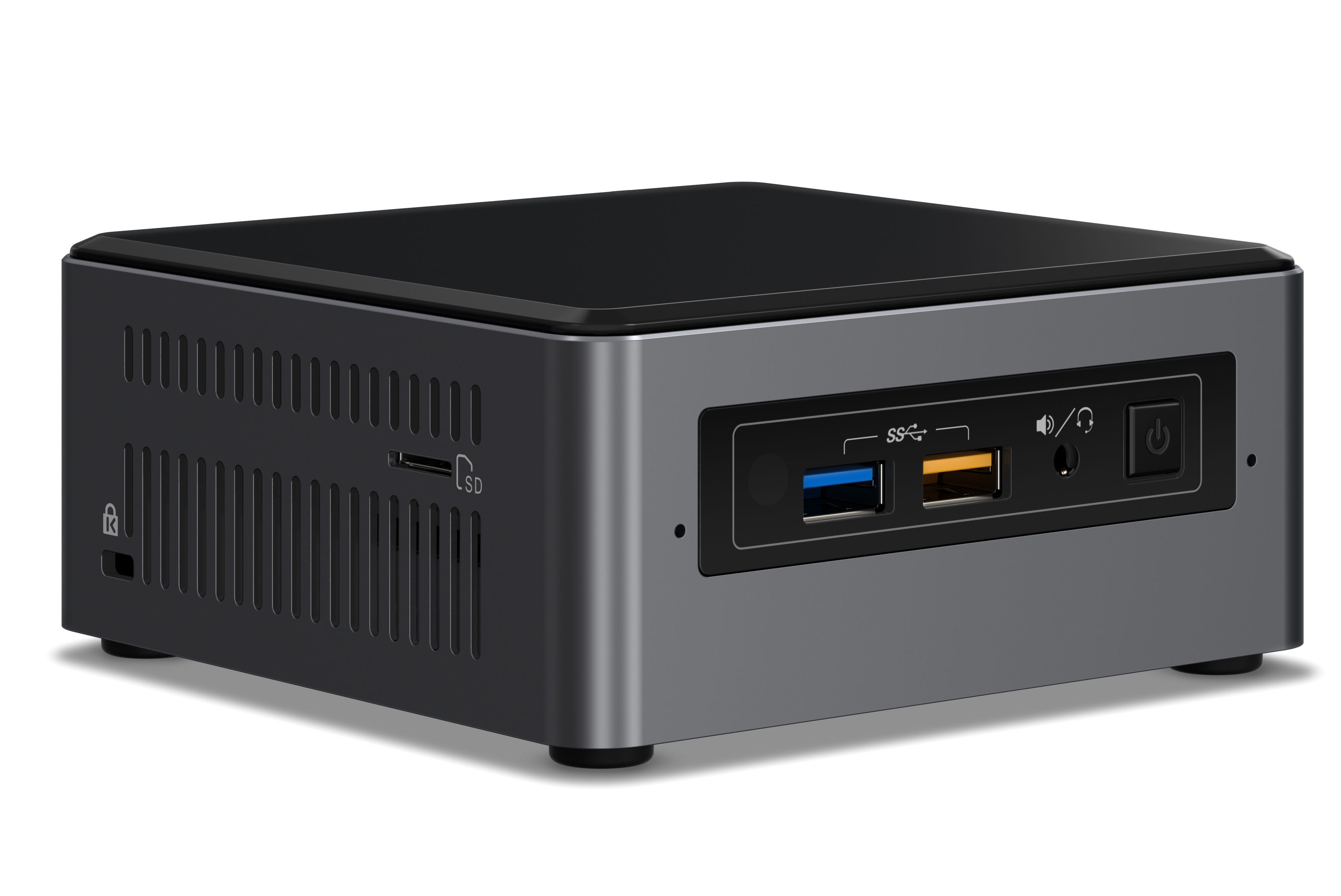

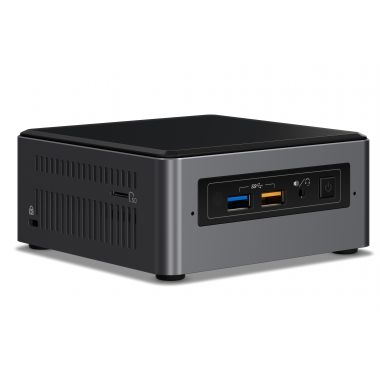

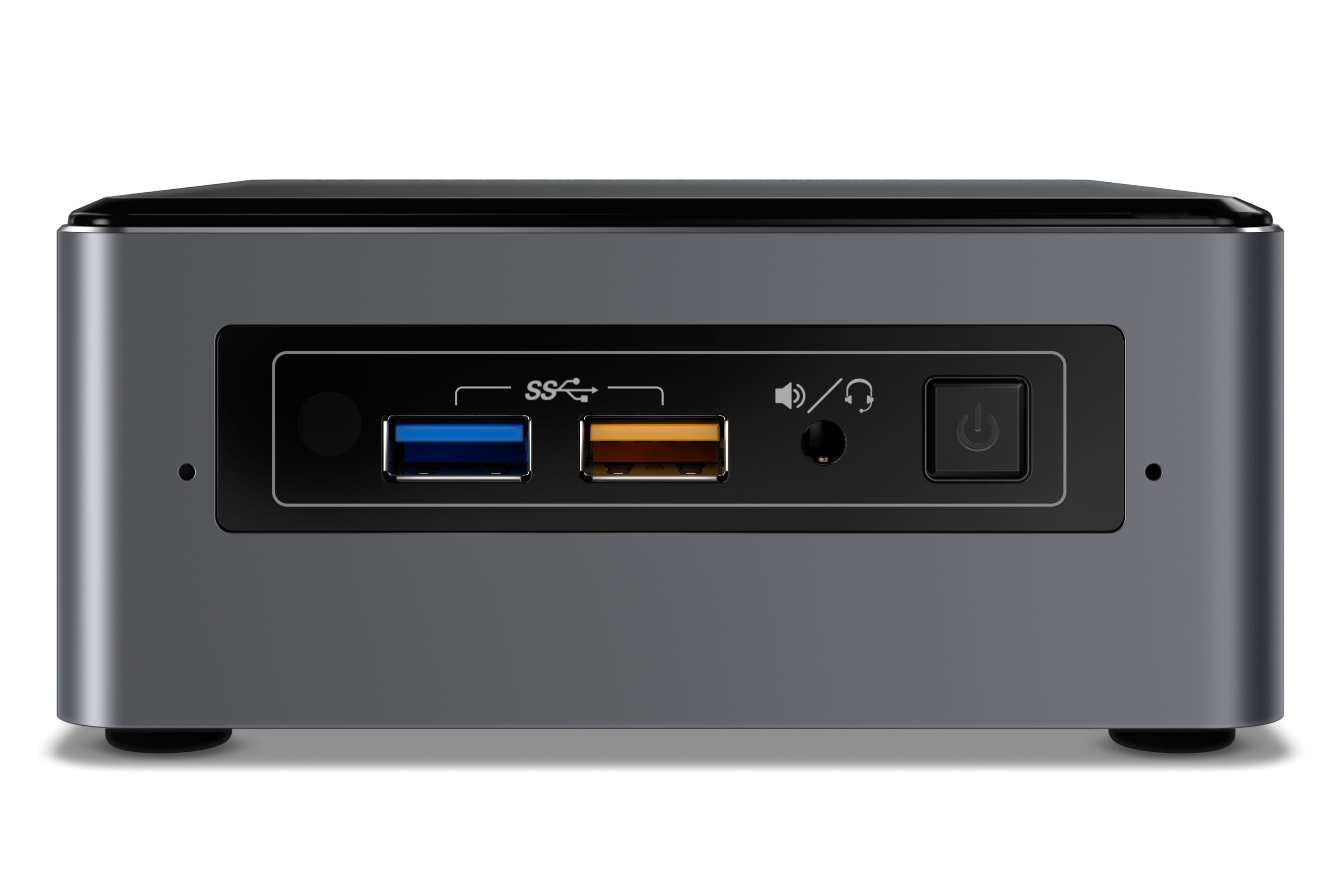

  • Front Ports
  • USB 3.0 Ports (Front): 2
  • Front Audio Ports: 1
  • Cooling System
  • Maximum Fan Count: 1
  • Included Fans: 1
  • Physical
  • Depth: 4.53"
  • Width: 4.37"
  • Height: 2.01"
  • Shipping Box - Depth: 10"
  • Shipping Box - Width: 8"
  • Shipping Box - Height: 4"
  • Shipping Weight: 3lbs
  • Power
  • Built-in Chassis Power Supply: 65W AC/DC Power Adapter
