SL-PPC-24P-LL3455J-S29 This item is no longer available.

A newer version of this item is available: SL-PPC-24P-LL6412J-S29

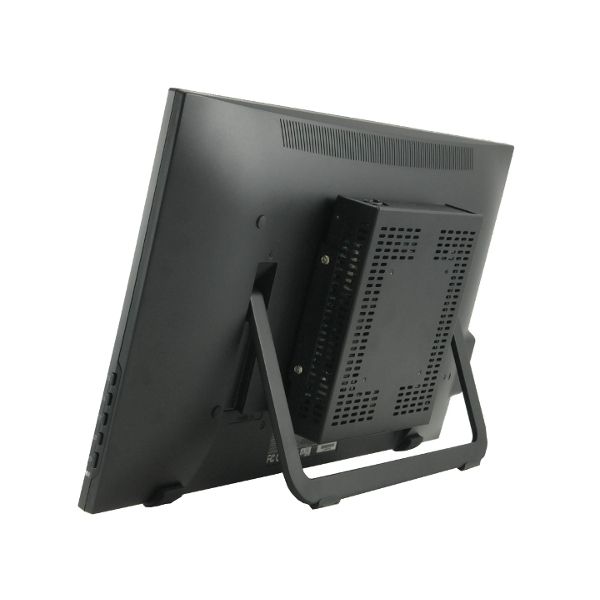

24" Fanless HMI Panel PC with Multi-Touch Projected Capacitive Touch Screen and Not Rated Rated Front Panel; Intel Celeron SoC, Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W, 1x GB (10/100/1000) LAN, 2x Serial, Up to 8GB RAM, 2x USB 2.0 Ports ( 2 Front ), 4x USB 3.2 Gen 1 Ports ( 4 Rear ), 1920 x 1080 resolution, Power Supply AC/DC Power Adapter Included.


Completely Fanless, TPM Support: 2.0 Module Included

Type:

  • Fanless Panel PC
  • Screen:
    • 24" Multi-Touch Projected Capacitive, Native Resolution: 1920 x 1080, Front Panel Rating: Not Rated

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W
  • LAN: 1x Ports (GB (10/100/1000))
  • Video: HDMI
  • Audio: Realtek® ALC662 HD Audio
  • Ports:
    2x USB 2.0 Ports ( 2 Front )
    4x USB 3.2 Gen 1 Ports ( 4 Rear )
    2x COM Ports (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 120GB M.2 - 2242 SATA SSD - 500/300MB/s read/write (or greater)
  • Power Supply: AC/DC Power Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Realtek® ALC662 HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: HDMI
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek RTL8111H
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 1
  • Mini PCIe
  • mini PCIe
  • USB and PCIe signals (Internal)
  • half and/or full size mini PCIe card: full size
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 1
  • M.2 Slot #1 Specs
  • M.2 SATA SSD
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.

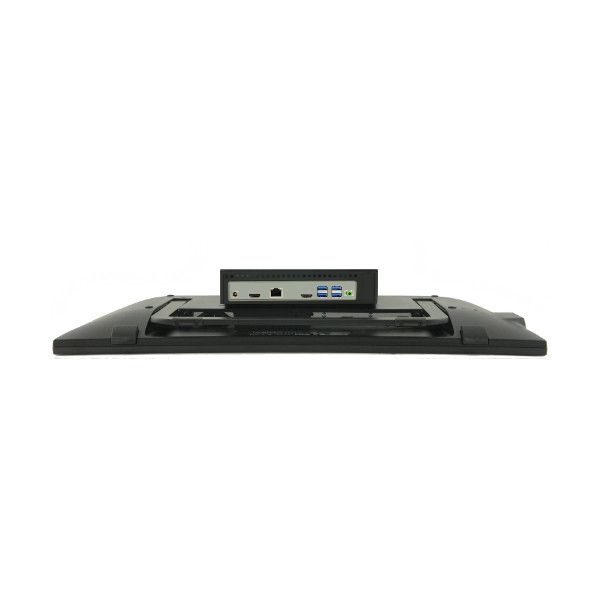

  • Rear IO
  • USB 3.2 Gen 1 Type A Ports (on IO): 4
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • Serial (via Headers): 2
  • Audio on Headers
  • TPM Support: 2.0 Module Included
  • DC Power: 12V DC-in
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF )
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry 2019 LTSC
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    Upgradeable to 2x LAN model under Networking Section. 2x LAN model will add 1x VGA port and remove 1x HDMI port.

  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size (inches): 24
  • Touch Type: Multi-Touch Projected Capacitive
  • Aspect Ratio: 16:9
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 11.70"
  • Display Area (V): 20.70"
  • Aspect Ratio: 16:9
  • DisplayColors: 16.7 M
  • Contrast Ratio: 3,000:1
  • Backlight: LED
  • Viewing Angle(U) : 178º
  • Viewing Angle(D) : 178º
  • Viewing Angle(L) : 178º
  • Viewing Angle(R) : 178º
  • Connectivity
  • VGA Port In: 1
  • HDMI In: 1
  • Display Port In: 1
  • Mounting Options
  • Mounting Options: VESA 100mm x 100mm, Other options sold separately
  • Suggested Cut-Out Dimension (Width):
  • Suggested Cut-Out Dimension (Height):
  • Physical
  • Width: 21.60"
  • Height: 15.80"
  • Depth: 7.80"
  • Unboxed Weight: 5.7lbs
  • Shipping Weight: 15.8lbs
  • Environmental
  • MTBF:
  • Maximum Operating Temperature: 104F
  • Low Operating Temp: 32F
  • High Humidity: 90%
  • Low Humidity: 20%
  • Storage Temp (High):
  • Storage Temp (Low):
  • Storage Humidity (High):
  • Storage Humidity (Low):
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 26Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CB
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    24” Frameless Touch Monitor with 10 Points PCAP

    • Touch function for wet hands and multiple types of glove
    • Pen clicks & Palm rejection technology
    • 4-sides frameless design and optional stand for flexibility
    • Friendly touch mode setting
    • Intuitive touch OSD with ViewSonic Touch Controller

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Physical
  • Depth: 193mm
  • Depth (Inches): 7.6
  • Width: 215mm
  • Height: 45mm
  • Shipping Box - Depth: 13"
  • Shipping Box - Width: 9"
  • Shipping Box - Height: 5"
  • Shipping Weight: 5lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
