SL-DK-i3-AZ370M-ID This item is no longer available.

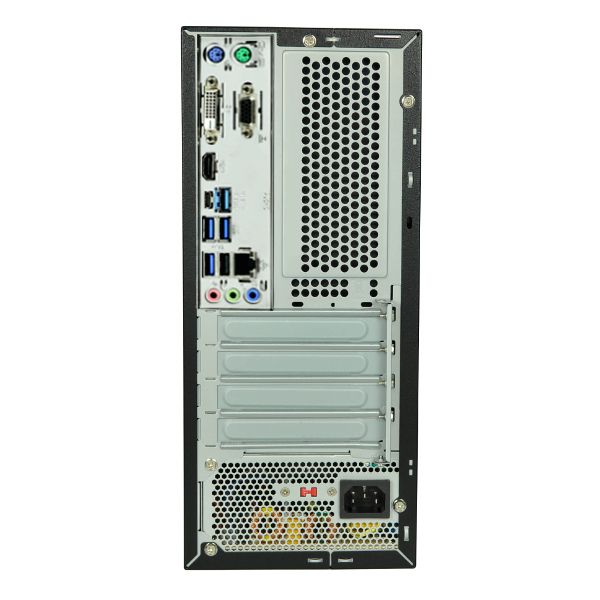

Tower PC - Desktop featuring Intel Z370 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 5x USB 2.0 Ports ( 4 Front, 1 Rear ), 8x USB 3.2 Gen 1 Ports ( 4 Rear, 4 Internal Headers ), 1x USB 3.2 Gen 1 Type-C Port (Rear), 4x Expansion Slots, Power Supply 300 Watt Power Supply.
Type:
- Tower PC
- Dimension: 10.80" x 5.50" x 12.70"
Motherboard:
- Featuring Intel Z370 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
- Full Height Slots:
2 - PCIe x16
2 - PCIe x1 - LAN: 1x Ports (1GbE (10/100/1000))
- RAID: 0,1,5,10
- Video: VGA + HDMI + DVI-D
- Audio: 7.1+2 Channel HD Audio by Realtek ALC892
- Ports:
5x USB 2.0 Ports ( 4 Front, 1 Rear )
8x USB 3.2 Gen 1 Ports ( 4 Rear, 4 Internal Headers )
1x USB 3.2 Gen 1 Type-C Port (Rear)
1x COM Port (RS232 Internal Headers)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: i3-8100 - 3.6GHz Intel Quad-Core (4 cores) CPU - 6MB Cache, UHD Graphics 630 (65W) (ERM)
- Memory: 4GB DDR4 2666MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 300W SFX-form factor power supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
- Chipset
- Chipset: Intel Z370 Chipset
- Memory
- Memory Type: DDR4 2400MHz
- Memory Type: Non-ECC
- DIMMS: 4
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: 7.1+2 Channel HD Audio by Realtek ALC892
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA + HDMI + DVI-D
- VGA Port Out: 1
- DVI-D Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® i219V
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 2
- PCI Express x1 Slots On Motherboard: 2
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2230 - 22 mm x 30 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- PCIe Signal
- 2230 - 22 mm x 30 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- Rear IO
- PS/2 Mouse on IO
- PS/2 Keyboard on IO
- USB 2.0 Ports (on IO): 1
- USB 3.2 Gen 1 Type A Ports (on IO): 4
- USB 3.2 Gen 1 Type C Ports (on I/O): 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 4
- Serial (via Headers): 1
- FAN Connectors: 4
- Audio on Headers
- Chassis Intrusion
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- LINUX Ubuntu Workstation
- Ubuntu Server Edition
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Other Features:
2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*
2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
Supports AMD Quad CrossFireX™ and CrossFireX™1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit - Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Mini Tower
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Micro ATX
- Expansion
- Full Height Slots: 4
- Max Card Depth: 9.5 inches"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 1
- External 3.5" Bays: 1
- Front Ports
- USB 2.0 Ports (Front): 4
- Front Audio Ports: 1
- Physical
- Depth: 10.80"
- Depth (Inches): 10.8
- Width: 5.50"
- Height: 12.70"
- Shipping Box - Depth: 23"
- Shipping Box - Width: 23"
- Shipping Box - Height: 15"
- Shipping Weight: 24lbs
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 300 Watt Power Supply
