SL-DK-W790ACE-FW

Tower Server - Desktop featuring Intel W790 Chipset, Intel® Socket LGA4677 for Xeon® W-3400 Series, 2x 2.5GbE + 10GbE LAN, 1x Serial, Up to 2048GB RAM, 12x USB 2.0 Ports ( 8 Rear, 4 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Front ), 4x USB 3.2 Gen 2 Ports ( 4 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 5x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Tower Server
Dimension: 547mm x 240mm x 475mm

Motherboard:

Featuring Intel W790 Chipset and Intel® Socket LGA4677 for Xeon® W-3400 Series processor
Full Height Slots:
5 - PCIe x16
LAN: 2x Ports (2.5GbE + 10GbE )
RAID: 0,1,5,10 and NVMe 0,1 RAID Intel VROC
Video: None
Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
Ports:
12x USB 2.0 Ports ( 8 Rear, 4 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Front )
4x USB 3.2 Gen 2 Ports ( 4 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
1x COM Port (RS232 Internal Headers)
1x Front Audio Port
See specifications for more ports
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)

Also Included:

Processor: Intel Xeon W3-2425 W-2400 Series CPU (6 Core) - 3.0 GHz (Up to 4.4GHz) - 15MB Cache (156W)
Memory: 4 x 16GB DDR5 4800MHz ECC Registered RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Add-In Graphic Card: NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support!
Power Supply: 850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Memory

x 16GB DDR5 4800MHz ECC Registered RAM show $131.00

x 32GB DDR5 4800MHz ECC Registered RAM show $180.00

x 64GB DDR5 4800MHz ECC Registered RAM show $332.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

5.25" CD/DVD Burner show $31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $148.00

Hard Drive

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $73.00

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $113.00

1TB NVMe SSD M.2 3.5GB/3.0GB - Samsung 980 show $165.00

500GB PCIe 4.0 NVMe SSD M.2 6,900MBps/5,000MBps - Samsung 980 PRO show $148.00

1TB PCIe 4.0 NVMe SSD M.2 7,000MBps/5,000MBps - Samsung 980 PRO show $165.00

2TB PCIe 4.0 NVMe SSD M.2 7,000MBps/5,100MBps - Samsung 980 PRO show $238.00

4TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $445.00

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $428.00

Additional Hard Drives

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $73.00 each

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $113.00 each

1TB NVMe SSD M.2 3.5GB/3.0GB - Samsung 980 show $165.00 each

500GB PCIe 4.0 NVMe SSD M.2 6,900MBps/5,000MBps - Samsung 980 PRO show $148.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,000MBps/5,000MBps - Samsung 980 PRO show $165.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,000MBps/5,100MBps - Samsung 980 PRO show $238.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/56,900MB/s - Samsung 990 PRO show $445.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $428.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $99.00 each

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $158.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $488.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - WD GOLD Series show $155.00 each

4.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $205.00 each

6.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $265.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $293.00 each

10.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $321.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $381.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $435.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $513.00 each

20.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $615.00 each

22.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $740.00 each

Raid Controller

Intel Virtual RAID on CPU (VROC) HW enablement key for RAID 0,1,5,10. (Required) show $254.00 each

Configure NVMe RAID 0 (Striping) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter. show $0.00 each

Configure NVMe RAID 1 (Mirroring) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter show $0.00 each

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Cable

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $7.00 each

Add 2 USB 2.0 Ports via connections from onboard header. show $14.00 each

TPM 2.0 Module - TPM IC: Nuvoton NPCT750. Pin Dimension: 14-1pin show $31.00 each

Plug-In Boards

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile.. show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Networking

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $229.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $231.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $415.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-DA2 - Copper SFP+ Direct Attached - Lo show $580.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-SR2 - Optical Fiber - Low-profile/Full show $783.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

PCIe x8 Dual Port SFP+ Direct Attached Twinaxial Cabling Intel X710-DA2 10GbE Network Adapter. - Low P show $454.00 each

PCIe x8 Quad Port ..SFP+ Direct Attached Twin Axial Cabling Intel X710-DA4 10GbE Network Adapter. - Fu show $681.00 each

Power Supply

850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified show $232.00

1200W 80 PLUS GOLD ATX3.0 PCIE5 Modular Power Supply show $370.00

700W 80 PLUS GOLD Hot Swappable Redundant Digital Power Supply show $765.00

900W 80 PLUS GOLD Hot Swappable Redundant Digital Power Supply show $949.00

Operating System

None show Included

Microsoft Windows 11 Pro Downgrade to Windows 10 Pro 64-Bit. Includes Windows 11 Product Key Only. show $219.00

Microsoft Windows 11 Professional, 64-Bit show $199.00

Microsoft Windows 11 Pro For Workstation, 64-Bit show $409.00

Warranty

One-Year Depot Warranty show $0.00

Two-Year Depot Warranty show $199.00

Three-Year Depot Warranty show $399.00

One-Year 8x5 Onsite Warranty (USA/Can) show $245.00

One Year 24x7 Onsite Warranty (USA/Can) show $299.00

Two-Year 8x5 Onsite Warranty (USA/Can) show $475.00

Two-Year 24x7 Onsite Warranty (USA/Can) show $515.00

Three-Year 8x5 Onsite Warranty (USA/Can) show $760.00

Three-Year 24x7 Onsite Warranty (USA/Can) show $805.00

Monitors

Asus VP229Q 21.5" Full HD LED LCD Monitor - 16:9 - Black - 22" Class - In-plane Switching (IPS) Techno show $151.00 each

23.8" 16:9 75 Hz Adaptive-Sync IPS Monitor show $150.00 each

27" Monitor, 1080P Full HD, 75Hz, IPS, Adaptive-Sync, Eye Care, HDMI DisplayPort VGA USB Hub, Frameles show $228.00 each

29" HDR10 IPS Full HD UltraWide™ Monitor (2560x1080) with AMD FreeSync™, MAXXAudio®, Flic show $275.00 each

32" 4K UHD 3840 x 2160 Monitor Featuring Wide Color Gamut and FreeSync show $412.00 each

34" Ultra-Wide Freesync HDR Gaming Monitor 75Hz 1440P Eye Care DisplayPort HDMI,Black show $518.00 each

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $97.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $135.00 each

USB Keyboard/Mouse - Waterproof, NEMA4 show $502.00 each

USB Keyboard/Mouse - Waterproof, IP67/NEMA4x show $672.00 each

External Power

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $610.00 each

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: SSI CEB
Supported CPU
Number of Processors: 1
Processor Type: Intel® Socket LGA4677 for Xeon® W-3400 Series
Chipset
Chipset: Intel W790 Chipset
Memory
Memory Type: DDR5 4800MHz ECCR
Memory Type: ECC Registered
DIMMS: 8
Maximum Memory: 2048GB
On Board Audio
Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
On Board Video
Video Chipset: None
Video on IO: None
LAN
LAN Ports: 2
LAN Type: 2.5GbE + 10GbE
LAN Chipset: Intel® 2.5Gb Ethernet
Second LAN Chipset: Marvell® AQtion 10Gb Ethernet
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 4
RAID
RAID Type: Hardware RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 5
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #2 Specs
PCIe Signal
2280 - 22 mm x 80 mm.

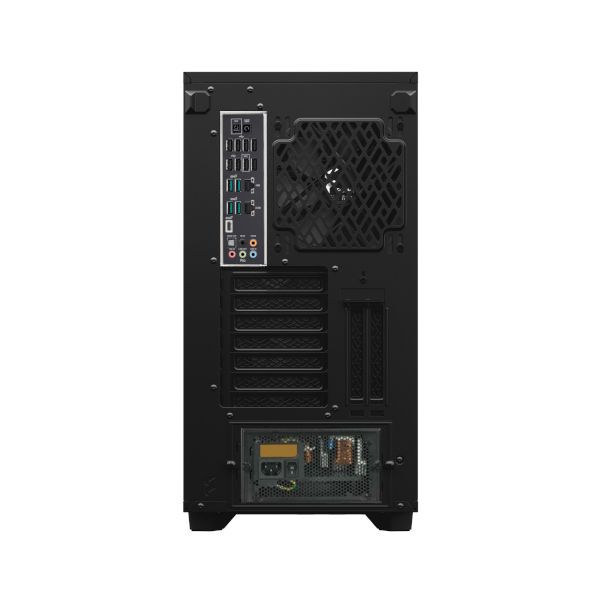

Rear IO
USB 2.0 Ports (on IO): 8
USB 3.2 Gen 2 Type A Ports (on IO): 4
USB 3.2 Gen 2x2 Type C Ports (on I/O): 1
SPDIF Connector: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Serial (via Headers): 1
FAN Connectors: 7
Audio on Headers
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
High Humidity: 90%
Low Humidity: 20%
Operating System Support
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Compliance of Component
RoHS
FCC
Other Features
Features:
Intel® Xeon™ W-3400 and W-2400 Series Processors
5 x PCIe 5.0 x16 slot(s) (supports x16, x16, x16, x0/x8, x16/x8 modes)

Total supports 2 x M.2 slots, 4 x SATA 6Gb/s ports and 3 x SlimSAS ports*
Intel® W790 Chipset**
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SlimSAS_1 slot supports PCIe 3.0 x4 mode NVMe device
SlimSAS_2 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is perchased seperately.
SlimSAS_3 slot supports PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports*
* Supports Intel® Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (Intel®VMD)
** Intel® VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC HW_Key is purchased separately.
Motherboard Warranty: 1 Year

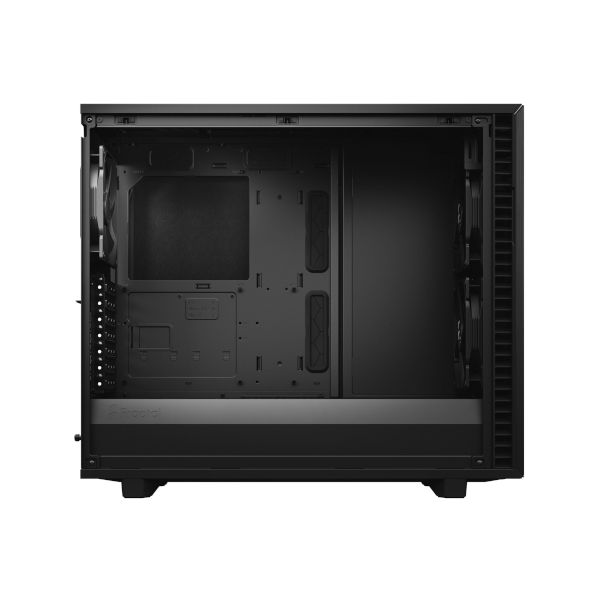

Chassis Specifications:

General
Form Factor: Full Tower
Front Facing I/O
Front Changeable Air Filter
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: E-ATX
Expansion
Full Height Slots: 7
Max Card Depth: Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)"
External 5.25" Bays: 1
Internal 3.5" Bays: 6
Internal 2.5" Bays: 2
Front Ports
USB 3.2 Ports (Front): 5
Front Audio Ports: 1
Cooling System
Maximum Fan Count: 9
Included Fans: 4
Physical
Depth: 547mm
Depth (Inches): 21.5
Width: 240mm
Height: 475mm
Shipping Box - Depth: 558mm
Shipping Box - Width: 363mm
Shipping Box - Height: 641mm
Shipping Weight: 36lbs
Other Features
Chassis Warranty: 1 Year
