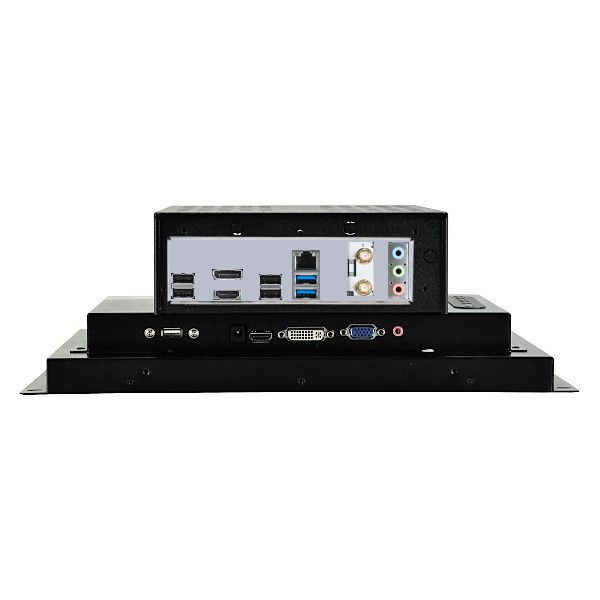

SL-PPC-13AWHD-MH510I-S17

13.3" HMI Panel PC with Multi-Touch Projected Capacitive Touch Screen and Not Rated Rated Front Panel; Intel H510 Chipset, 10th/11th Gen Core i7/i5/i3 (LGA1200), 1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s LAN, HDD or SSD, Up to 64GB RAM, 6x USB 2.0, 4x USB 3.1, 1920 x 1080 resolution, 160w output, 12v input DC-DC Power Supply - AC Adapter Included

Type:

  • Panel PC
  • Screen:
    • 13.3" Multi-Touch Projected Capacitive, Native Resolution: 1920 x 1080, Front Panel Rating: Not Rated
  • Mounting: Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel H510 Chipset and 10th/11th Gen Core i7/i5/i3 (LGA1200) processor
  • No Available Slots
  • LAN: 1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Video: DisplayPort + HDMI
  • Audio: Realtek® Audio CODEC
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 4 Rear)
    4x USB 3.1 Ports ( 2 Rear, 2 via internal headers )
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 4GB DDR4 2666MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th/11th Gen Core i7/i5/i3 (LGA1200)
  • Chipset
  • Chipset: Intel H510 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: Realtek® Audio CODEC
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DisplayPort + HDMI
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • LAN Chipset: Realtek® RTL8125B
  • Wireless LAN: Intel AX201 Wi-Fi 6 (802.11ax) + BT 5.1
  • Drive Interface
  • SATA III Ports (6GB): 4
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • SATA
  • PCIe
  • 80mm
  • Rear IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.2 Gen 1 Type A Ports (on IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • FAN Connectors: 3
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows 11 Home (64 Bit)
  • Windows 11 Pro (64 Bit)
  • Windows 11 Pro for WS (64 Bit)
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • 1x PCIe x16 slot
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 1x M.2 slot (from H510 chipset)
    • Support up to PCIe 3.0
    • Supports SATA 6Gb/s
    • Supports 2280 storage devices

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size (inches): 13.3
  • Touch Type: Multi-Touch Projected Capacitive
  • Aspect Ratio: 16 : 9
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 220
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 293.76mm
  • Display Area (V): 165.24"
  • Aspect Ratio: 16 : 9
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 178
  • Viewing Angle(D) : 178
  • Viewing Angle(L) : 178
  • Viewing Angle(R) : 178
  • Connectivity
  • VGA Port In: 1
  • DVI-D In: 1
  • HDMI In: 1
  • Touchscreen Interface USB Port: 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Other options sold separately
  • Suggested Cut-Out Dimension (Width): Click Available Downloads Tab > Mechanical Drawings
  • Suggested Cut-Out Dimension (Height): v
  • Physical
  • Width: Click Available Downloads Tab > Mechanical Drawings
  • Height: Click Available Downloads Tab > Mechanical Drawings
  • Depth: Click Available Downloads Tab > Mechanical Drawings
  • Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
  • Unboxed Weight: 6lbs
  • Shipping Weight: 11lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • Low Operating Temp: 00
  • High Humidity: 90%
  • Low Humidity: 5%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 5%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 10Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    13.3" Open Frame Full HD Touch Widescreen - Mounting ears not removable

    Display Specifications

    • Display
    • Screen Size: 13.3"
    • Touch Type: Multi-Touch Projected Capacitive
    • Front Panel Rating: Not Rated
    • Color: Black
    • Native Display Resolution: 1920 x 1080
    • Brightness (nits): 220
    • Aspect Ratio: 16 : 9
    • DisplayColors: 16.7 M
    • Contrast Ratio: 1000:1
    • Backlight: LED



    • Connectivity
    • VGA Port In: 1
    • DVI-D In: 1
    • HDMI In: 1

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 2
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 1
  • Physical
  • Depth: 8.27"
  • Depth (Inches): 8.27
  • Width: 7.60"
  • Height: 2.60"
  • Shipping Box - Depth: 13"
  • Shipping Box - Width: 9"
  • Shipping Box - Height: 5"
  • Shipping Weight: 8lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
