SL-PPC-15-2550-KA This item is no longer available.

A newer version of this item is available: SL-PPC-15-2930-KA-8GB

15" HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 Rated Front Panel; Intel NM10 Chipset, Intel Atom D2550 Processor (1.86GHzDual Core), 2x LAN, HDD or SSD, 2x Serial, 2GB DDR3 1333MHz RAM, 2x USB 2.0, 1024 x 768 resolution

Type:

  • All-in-One
  • Screen:
    • 15" 5-Wire Resistive, Native Resolution: 1024 x 768, Front Panel Rating: IP65
  • Mounting: Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel NM10 Chipset and Intel Atom D2550 Processor (1.86GHzDual Core)
  • Video: N/A
  • Audio: Onboard Audio
  • Ports:
    2x USB 2.0 Ports ( 2 Rear)
    2x COM Port (1 Rear, 1 RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Onboard Memory: 2GB DDR3 1333MHz RAM
  • Hard Drive: 250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater)
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Panel
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Atom D2550 Processor (1.86GHzDual Core)
  • Chipset
  • Chipset: Intel NM10 Chipset
  • Memory
  • Memory Type: DDR3 800MHz Onboard
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 2GB
  • On Board Audio
  • Audio Type: Onboard Audio
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: N/A
  • LAN
  • LAN Ports: 2
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 1
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: half size

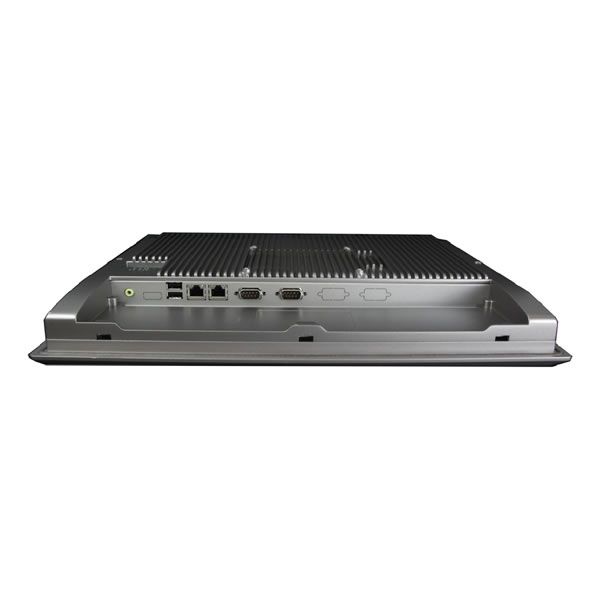

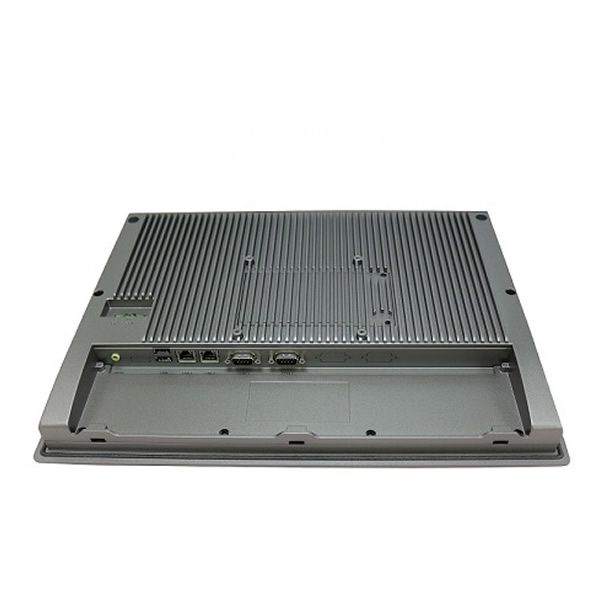

  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • Serial (Rear IO): 1
  • Serial 232/422/485 Ports: 1
  • Audio on IO
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 10%
  • Operating System Support
  • Windows XP Pro (32-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows Embedded 7 (32-Bit)
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year

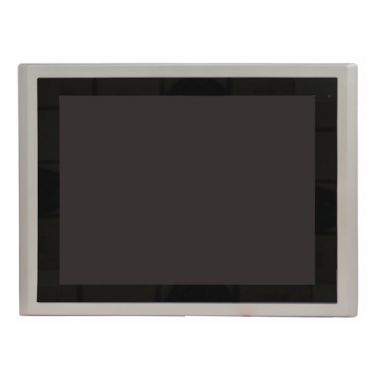

Display Specifications

  • Display
  • Screen Size (inches): 15
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 350
  • Display Area (H): 12"
  • Display Area (V): 9"
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: N/A:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 72
  • Viewing Angle(R) : 73
  • Connectivity
  • Mounting Options
  • Mounting Options: VESA 100mm x 100mm, Other options sold separately

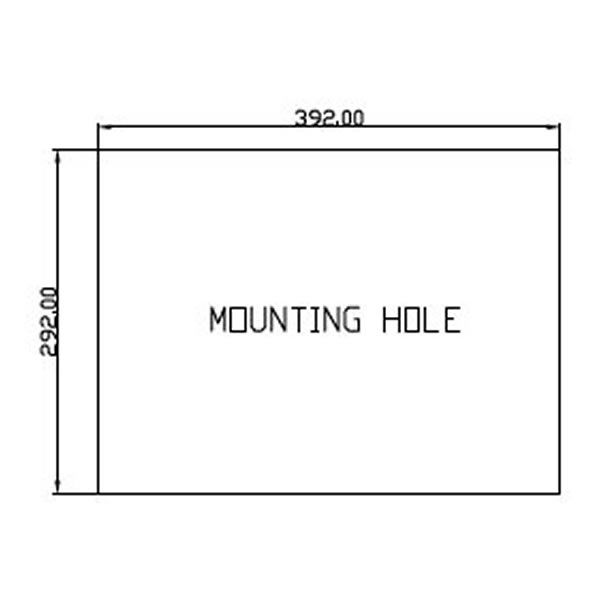

  • Suggested Cut-Out Dimension (Width): 392mm
  • Suggested Cut-Out Dimension (Height): 292mm

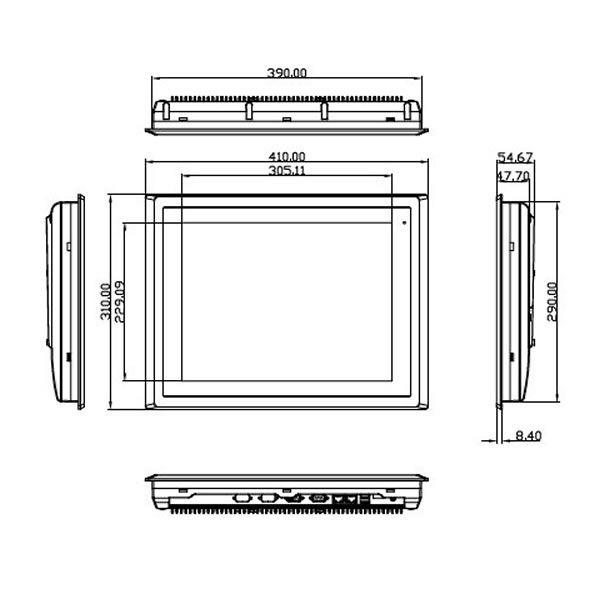

  • Physical
  • Width: 410mm
  • Height: 310mm
  • Depth: 54.67mm
  • Depth (Inches): 2.15
  • Unboxed Weight: 4.4lbs
  • Shipping Weight: 11lbs
  • Environmental
  • MTBF: N/Ahours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 10%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 10%
  • Power
  • Power Supply: 9~36V DC
  • Power Consumption (on): 19.2Watts
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty
  • Warranty: 1 year
  • Other

Chassis Specifications:

  • General
  • Form Factor: Panel PC
  • Color: Silver
  • Material: Metal/Aluminum
  • Material Thickness: 1mm
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 2
  • Physical
  • Depth: 54.67mm
  • Depth (Inches): 2.15
  • Width: 410mm
  • Height: 310mm
  • Shipping Box - Depth: 250mm
  • Shipping Box - Width: 550mm
  • Shipping Box - Height: 460mm
  • Shipping Weight: 11lbs
