SL-PPC-15-E3845

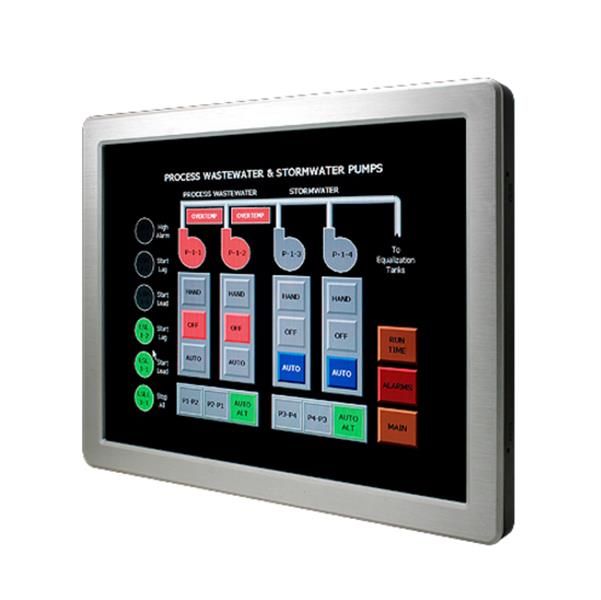

15" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen Intel ATOM SoC, Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W, 2x LAN, 1x Serial, Up to 8GB RAM, 1x USB 2.0 Port( 1 Rear ), 1x USB 3.2 Gen 1 Port( 1 Rear ), 1024 x 768 resolution, Power Supply Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter) .
Can be Long Lead Time- Please Call for Current Status
Type:
- Fanless Panel PC
- Screen:
- 15" 5-Wire Resistive, Native Resolution: 1024 x 768, Front Panel Rating: IP65
Motherboard:
- Featuring Intel ATOM SoC and Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
- Video: HDMI
- Audio: Onboard Audio

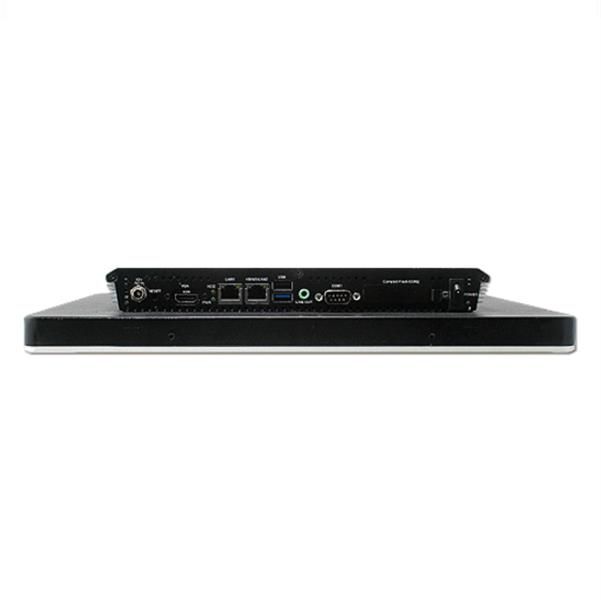

- Ports:
1x USB 2.0 Port( 1 Rear )
1x USB 3.2 Gen 1 Port( 1 Rear )
1x COM Port (RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
Also Included:
- Memory: 4GB DDR3 1333MHz SODIMM RAM
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply: Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter)
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
Display Specifications
- Display
- Screen Size (inches): 15
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65
- Aspect Ratio: 4 : 3
- Native Display Resolution: 1024 x 768
- Brightness (nits): 400
- Display Area (H): 304.13mm
- Display Area (V): 228.10"
- Aspect Ratio: 4 : 3
- DisplayColors: 16.2 M
- Contrast Ratio: 700:1
- Backlight: LED
- Viewing Angle(U) : 70
- Viewing Angle(D) : 70
- Viewing Angle(L) : 80
- Viewing Angle(R) : 80
- Mounting Options
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width: 350mm
- Height: 273.90mm
- Depth: 53.10mm
- Unboxed Weight: 10lbs
- Shipping Weight: 20lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 60C
- Low Operating Temp: -20C
- High Humidity: 90%
- Storage Temp (High): 60C
- Storage Temp (Low): -20C
- Storage Humidity (High): 90%
- Power
- Power Supply: Accepts 12VDC, 100-240VAC/12VDC 5A 60W External Power Adapter included
- Power Consumption (on): 60Watts
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
- Other
- Built-in Chassis Power Supply: Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter)
